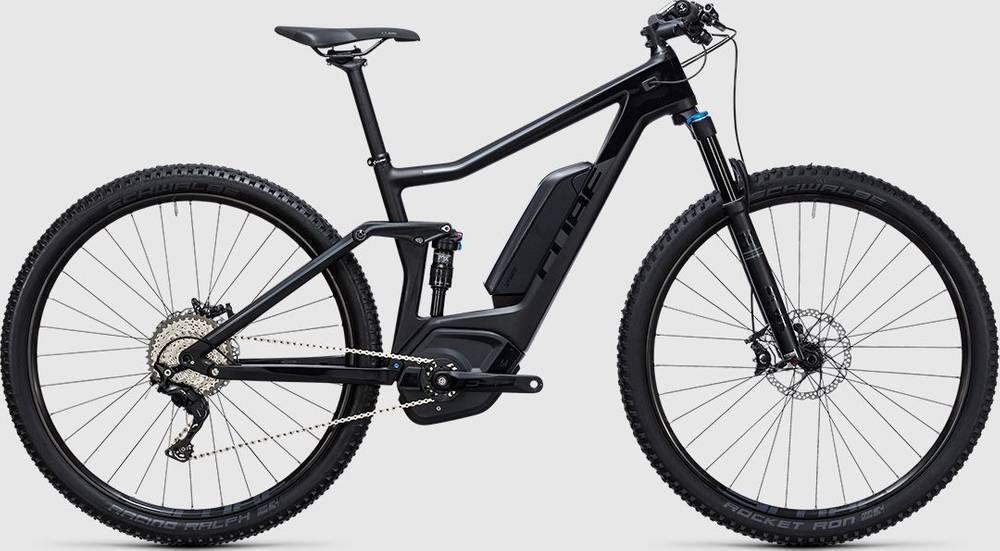

CUBE STEREO HYBRID 120 C:62 SL 500 29 2017
2017 E-bike
Weight | 19.8 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Float 34
-
Groupset XT, FSA -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C:62 Monocoque Advanced Twin Mold Technology, ETC 4-Link, ATG, Boost148, Tuned Drive Position, AXH
Suspension Fork
Fox 34 Float, 3-Position Micro-Adjust GRIP Damper, Tapered, 15QR, Boost, 120mm
Rear Shock
Fox Float DPS Performance, 184x44mm, Open/Medium/Firm Mode, EVOL Air Sleeve
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed, Direct Mount
Shift Levers
Shimano XT SL-M8000-I, Direct Attach
Cassette
Shimano XT CS-M8000, 11-46T
Crank
FSA CK-745, 16T
Chain
KMC X11e, EcoProTeQ
Wheels
Front Hub
Shimano XT FH-M8010-B, 15QR, Boost
Rear Hub
Shimano XT FH-M8010-B, X12, Boost
Rims
CUBE EX23, 32H, Disc, Tubeless Ready
Tires
Schwalbe Rocket Ron Kevlar 2.25
Brakes
Brakes
Shimano XT BR-M8000, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar Pro, 720mm
Grips
CUBE SCR
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seat
Saddle
Selle Royal MTB
Seatpost
CUBE Performance Post, 31.6mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17" | 19" | 21" |
|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.49 mm | 1.46 mm |
| Bottom Bracket Height | 332 mm | 332 mm | 332 mm |
| Front Center | 689 mm | 707 mm | 725 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 93 mm | 93 mm | 93 mm |
| Stack | 613 mm | 620 mm | 629 mm |
| Reach | 401 mm | 416 mm | 431 mm |
| Top Tube Length | 578 mm | 595 mm | 612 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 395 mm | 445 mm | 495 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 110 mm | 118 mm | 128 mm |
| Chainstay Length | 481 mm | 481 mm | 481 mm |
| Wheelbase | 1167 mm | 1185 mm | 1203 mm |
| Bottom Bracket Drop | 42 mm | 42 mm | 42 mm |
| Rear Travel | 120 mm | 120 mm | 120 mm |
| Wheels | 29" | 29" | 29" |
Model Overview
STEREO HYBRID 120 C:62 SL 500 29 is a Cube E Stereo Hybrid 120 model. There are 83 e-bikes that carry this model name. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Trail e-bikes average weight
The average weight for Trail e-bikes is 23.7 kg (52.25 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
CUBE STEREO HYBRID 120 C:62 SL 500 29 it’s weighing 19.8 kg (43.65 lbs). At this weight, is much lighter than average. In short, the average Trail e-bike weight is 19.7% higher than this one.
STEREO HYBRID 120 C:62 SL 500 29 components
Fork
This e-bike has the Fox Float 34 fork installed. The fork’s travel is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
CUBE STEREO HYBRID 120 C:62 SL 500 29 e-bike has the Fox Float DPS Performance model installed, and has a travel of 120mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
As for the wheels, CUBE STEREO HYBRID 120 C:62 SL 500 29 2017, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. CUBE STEREO HYBRID 120 C:62 SL 500 29 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
