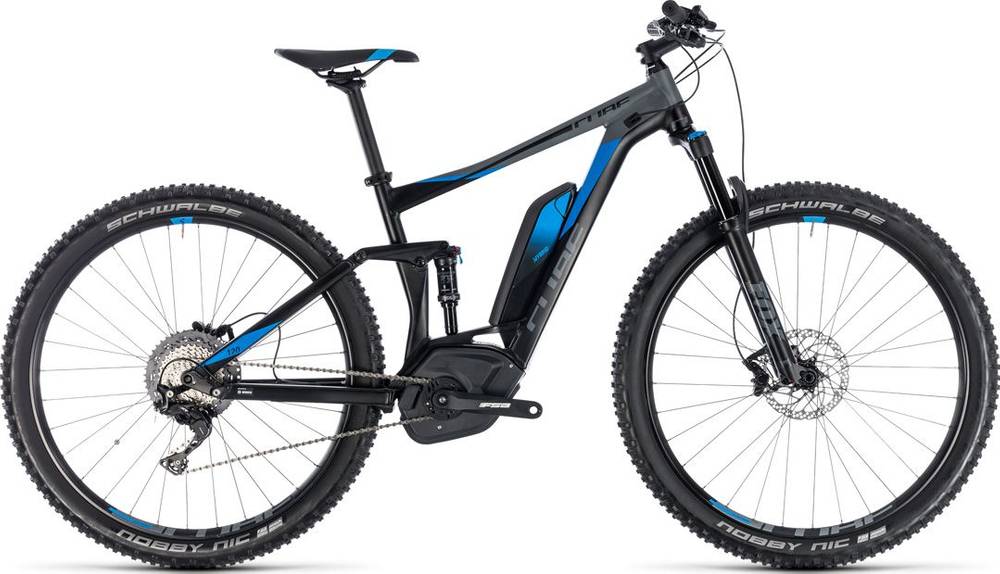

CUBE STEREO HYBRID 120 Exc 500 29 2018
2018 E-bike
Weight | 22.8 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Rhythm Float 34
-
Groupset XT, SLX -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HPA Ultralight, Advanced Hydroform, Triple Butted, ETC 4-Link, ATG, Boost148, Tuned Drive Position, AXH
Suspension Fork
Fox 34 Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, 120mm
Rear Shock
Fox Float DPS EVOL, 184x44mm, Open/Medium/Firm Mode
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed
Shift Levers
Shimano SLX SL-M7000-I, Direct Attach
Cassette
Shimano SLX CS-M7000, 11-46T
Crank
FSA CK-745, 170mm, 15T
Chain
KMC X11e, EcoProTeQ
Wheels
Front Hub
Shimano Deore HB-M6010-B, 15QR, Boost, Centerlock
Rear Hub
Shimano Deore FH-M6010-B, 12mm, Boost, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Nobby Nic, Addix Performance, 2.60
Brakes
Brakes
Shimano Deore BR-M6000, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar Pro, 740mm
Grips
CUBE Race Grip 31, 1-Clamp
Headset
FSA Orbit Z-t, Top Zero-Stack 1 1/8" (OD44mm), Bottom Integrated 1 1/2"
Seat
Saddle
Selle Royal MTB
Seatpost
CUBE Performance Post, 31.6mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17" | 19" | 21" | 23" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.49 mm | 1.46 mm | 1.49 mm |
| Bottom Bracket Height | 332 mm | 332 mm | 332 mm | 332 mm |
| Front Center | 685 mm | 703 mm | 721 mm | 734 mm |
| Rake | 48 mm | 48 mm | 47 mm | 48 mm |
| Trail | 96 mm | 96 mm | 97 mm | 96 mm |
| Stack | 613 mm | 620 mm | 629 mm | 648 mm |
| Reach | 401 mm | 416 mm | 431 mm | 436 mm |
| Top Tube Length | 578 mm | 595 mm | 612 mm | 623 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 395 mm | 445 mm | 495 mm | 454 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 110 mm | 118 mm | 128 mm | 148 mm |
| Chainstay Length | 485 mm | 485 mm | 485 mm | 485 mm |
| Wheelbase | 1167 mm | 1185 mm | 1203 mm | 1216 mm |
| Bottom Bracket Drop | 42 mm | 42 mm | 42 mm | 42 mm |
| Rear Travel | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 29" | 29" | 29" | 29" |
Model Overview
STEREO HYBRID 120 Exc 500 29 is part of the Cube E Stereo Hybrid 120 model. CUBE released 83 e-bikes variations of this model so far. You can easily view all of the Cube E Stereo Hybrid 120 e-bikes models from 2018, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Trail e-bikes average weight
The average weight for Trail e-bikes is 23.7 kg (52.25 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
STEREO HYBRID 120 Exc 500 29 weighs 22.8 kg (50.27 lbs) and is slightly lighter than the average. In other words, this model is 3.95% lighter than the average Trail e-bike.
STEREO HYBRID 120 Exc 500 29 components
Fork
The Fox Rhythm Float 34 is included from the factory. It has a travel distance of 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this e-bike is Fox Float DPS EVOL, with a travel distance of 120mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When it comes to wheels, the STEREO HYBRID 120 Exc 500 29 e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The STEREO HYBRID 120 Exc 500 29 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
