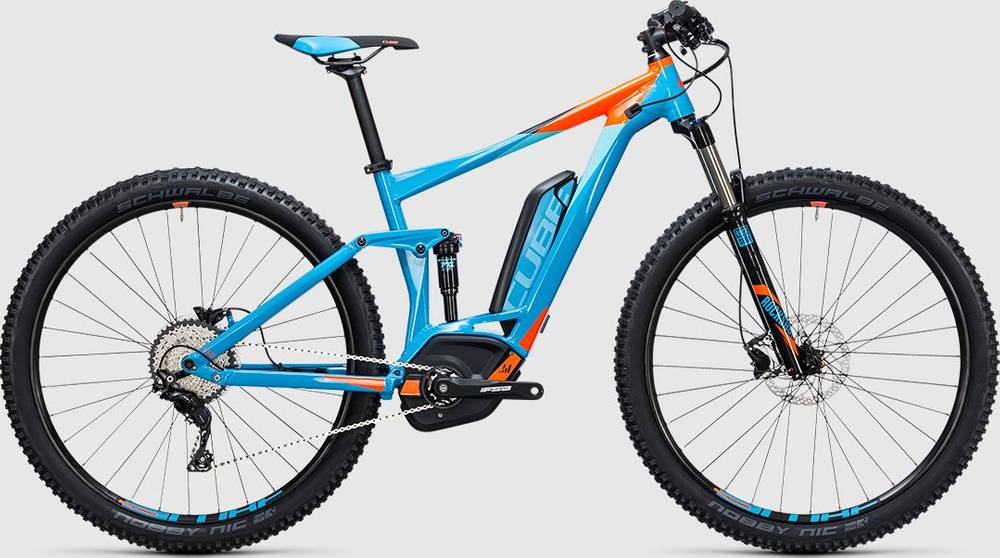

CUBE STEREO HYBRID 120 HPA Pro 400 2017
2017 E-bike
Weight | 22.4 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork RockShox Recon Silver TK
-
Groupset XT, FSA -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 400 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HPA Ultralight, Advanced Hydroform, Triple Butted, ETC 4-Link, ATG, Boost148mm, Tuned Drive Position, AXH
Suspension Fork
Rock Shox Recon Silver TK Air,120mm, PopLoc
Rear Shock
Fox Float DPS Performance, 184x44mm, Open/Medium/Firm Mode, LV Air Canister
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed, Direct Mount
Shift Levers
Shimano XT SL-M8000, 11-Speed
Cassette
Shimano SLX CS-M7000, 11-42T
Crank
FSA CK-745, 15T
Chain
KMC X11e, EcoProTeQ
Wheels
Front Hub
Shimano Deore HB-M618, QR15
Rear Hub
Shimano Deore FH-M618-B, X12, Boost
Rims
CUBE EX23, 32H, Disc, Tubeless Ready
Tires
Schwalbe Nobby Nic, PervfL, 2.35
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar Pro, 740mm
Grips
CUBE Race Grip, 1-Clamp
Headset
FSA Orbit Z-t, Top Zero-Stack 1 1/8" (OD44mm), Bottom Integrated 1 1/2"
Seat
Saddle
Selle Royal MTB
Seatpost
CUBE Performance Post, 31.6mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerPack 400
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 17" | 18" | 19" | 20" | 21" | 23" |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.53 mm | 1.4 mm | 1.49 mm | 1.37 mm | 1.46 mm | 1.48 mm |
| Bottom Bracket Height | 335 mm | 332 mm | 335 mm | 332 mm | 335 mm | 332 mm | 332 mm |
| Front Center | 691 mm | 689 mm | 712 mm | 707 mm | 731 mm | 725 mm | 738 mm |
| Rake | 60 mm | 51 mm | 61 mm | 51 mm | 61 mm | 51 mm | 51 mm |
| Trail | 76 mm | 93 mm | 74 mm | 93 mm | 74 mm | 93 mm | 93 mm |
| Stack | 577 mm | 615 mm | 586 mm | 622 mm | 595 mm | 631 mm | 650 |
| Reach | 402 mm | 403 mm | 419 mm | 418 mm | 434 mm | 433 mm | 438 mm |
| Top Tube Length | 567 mm | 580 mm | 587 mm | 597 mm | 605 mm | 614 mm | 625 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 395 mm | 420 mm | 445 mm | 470 mm | 495 mm | 545 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 118 mm | 130 mm | 128 mm | 148 mm |
| Chainstay Length | 465 mm | 483 mm | 465 mm | 483 mm | 465 mm | 483 mm | 483 mm |
| Wheelbase | 1155 mm | 1169 mm | 1176 mm | 1187 mm | 1195 mm | 1205 mm | 1218 mm |
| Bottom Bracket Drop | 20 mm | 42 mm | 20 mm | 42 mm | 20 mm | 42 mm | 42 mm |
| Rear Travel | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 27" | 29" | 27" | 29" | 27" | 29" | 29" |
About this model
STEREO HYBRID 120 HPA Pro 400 is a Cube E Stereo Hybrid 120 model. 83 e-bikes variations carry this model name so far. You can easily view all of the Cube E Stereo Hybrid 120 e-bikes models from 2017, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail e-bikes average price
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Trail e-bikes average weight
If we make a quick analysis of the average weight of a Trail e-bike, we get 23.7 kg (52.25 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
a bit lighter than average, STEREO HYBRID 120 HPA Pro 400 has a weight of 22.4 kg (49.38 lbs). In short, the average Trail e-bike weight is 5.8% higher than this one.
STEREO HYBRID 120 HPA Pro 400 components
Fork
CUBE STEREO HYBRID 120 HPA Pro 400 2017 e-bike is equipped with the RockShox Recon Silver TK fork, and has 120mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The STEREO HYBRID 120 HPA Pro 400 has a rear shock with a travel of 120mm. The model Fox Float DPS Performance is the one installed in this e-bike. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The STEREO HYBRID 120 HPA Pro 400 2017 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The STEREO HYBRID 120 HPA Pro 400 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
