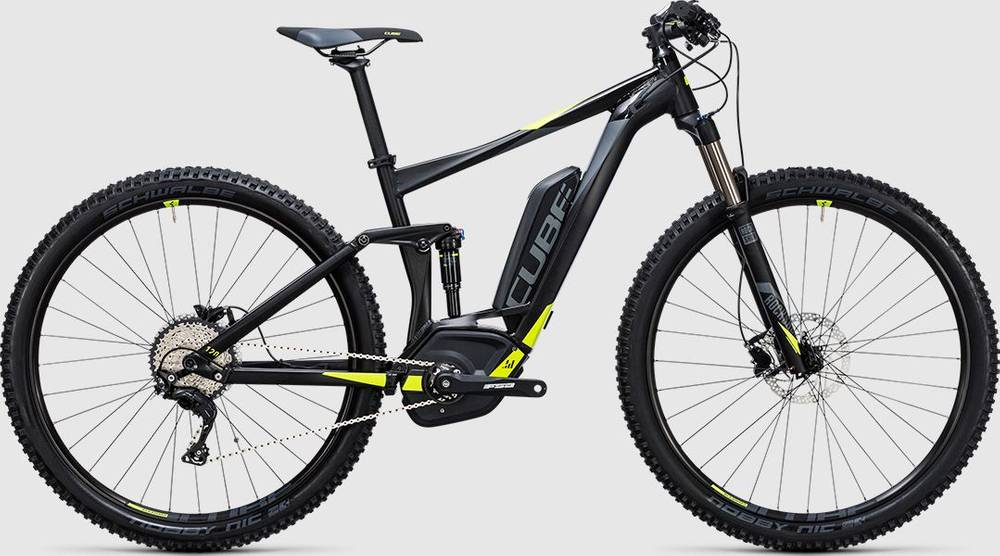

CUBE STEREO HYBRID 120 HPA Pro 500 2017
2017 E-bike
Weight | 22.4 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork RockShox Recon Silver TK
-
Groupset XT, FSA -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HPA Ultralight, Advanced Hydroform, Triple Butted, ETC 4-Link, ATG, Boost148mm, Tuned Drive Position, AXH
Suspension Fork
Rock Shox Recon Silver TK Air,120mm, PopLoc
Rear Shock
Fox Float DPS Performance, 184x44mm, Open/Medium/Firm Mode, LV Air Canister
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed, Direct Mount
Shift Levers
Shimano XT SL-M8000, 11-Speed
Cassette
Shimano SLX CS-M7000, 11-42T
Crank
FSA CK-745, 15T
Chain
KMC X11e, EcoProTeQ
Wheels
Front Hub
Shimano Deore HB-M618, QR15
Rear Hub
Shimano Deore FH-M618-B, X12, Boost
Rims
CUBE EX23, 32H, Disc, Tubeless Ready
Tires
Schwalbe Nobby Nic, PervfL, 2.35
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar Pro, 740mm
Grips
CUBE Race Grip, 1-Clamp
Headset
FSA Orbit Z-t, Top Zero-Stack 1 1/8" (OD44mm), Bottom Integrated 1 1/2"
Seat
Saddle
Selle Royal MTB
Seatpost
CUBE Performance Post, 31.6mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 17" | 18" | 19" | 20" | 21" | 23" |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.53 mm | 1.4 mm | 1.49 mm | 1.37 mm | 1.46 mm | 1.48 mm |
| Bottom Bracket Height | 335 mm | 332 mm | 335 mm | 332 mm | 335 mm | 332 mm | 332 mm |
| Front Center | 691 mm | 689 mm | 712 mm | 707 mm | 731 mm | 725 mm | 738 mm |
| Rake | 60 mm | 51 mm | 61 mm | 51 mm | 61 mm | 51 mm | 51 mm |
| Trail | 76 mm | 93 mm | 74 mm | 93 mm | 74 mm | 93 mm | 93 mm |
| Stack | 577 mm | 615 mm | 586 mm | 622 mm | 595 mm | 631 mm | 650 |
| Reach | 402 mm | 403 mm | 419 mm | 418 mm | 434 mm | 433 mm | 438 mm |
| Top Tube Length | 567 mm | 580 mm | 587 mm | 597 mm | 605 mm | 614 mm | 625 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 395 mm | 420 mm | 445 mm | 470 mm | 495 mm | 545 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 118 mm | 130 mm | 128 mm | 148 mm |
| Chainstay Length | 465 mm | 483 mm | 465 mm | 483 mm | 465 mm | 483 mm | 483 mm |
| Wheelbase | 1155 mm | 1169 mm | 1176 mm | 1187 mm | 1195 mm | 1205 mm | 1218 mm |
| Bottom Bracket Drop | 20 mm | 42 mm | 20 mm | 42 mm | 20 mm | 42 mm | 42 mm |
| Rear Travel | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 27" | 29" | 27" | 29" | 27" | 29" | 29" |
About this model
STEREO HYBRID 120 HPA Pro 500 completes the Cube E Stereo Hybrid 120 model. CUBE launched 83 e-bikes of this model so far. Take a sneak peek at all Cube E Stereo Hybrid 120 e-bikes models from 2017, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Trail e-bikes average weight
If we make a quick analysis of the average weight of a Trail e-bike, we get 23.7 kg (52.25 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
CUBE STEREO HYBRID 120 HPA Pro 500 it’s weighing 22.4 kg (49.38 lbs). At this weight, is a bit lighter than average. In conclusion, the average Trail e-bike weighs 5.8% more than STEREO HYBRID 120 HPA Pro 500.
STEREO HYBRID 120 HPA Pro 500 components
Fork
This e-bike has the RockShox Recon Silver TK fork installed. The fork’s travel is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this e-bike is Fox Float DPS Performance, with a travel distance of 120mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The STEREO HYBRID 120 HPA Pro 500 2017 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The STEREO HYBRID 120 HPA Pro 500 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
