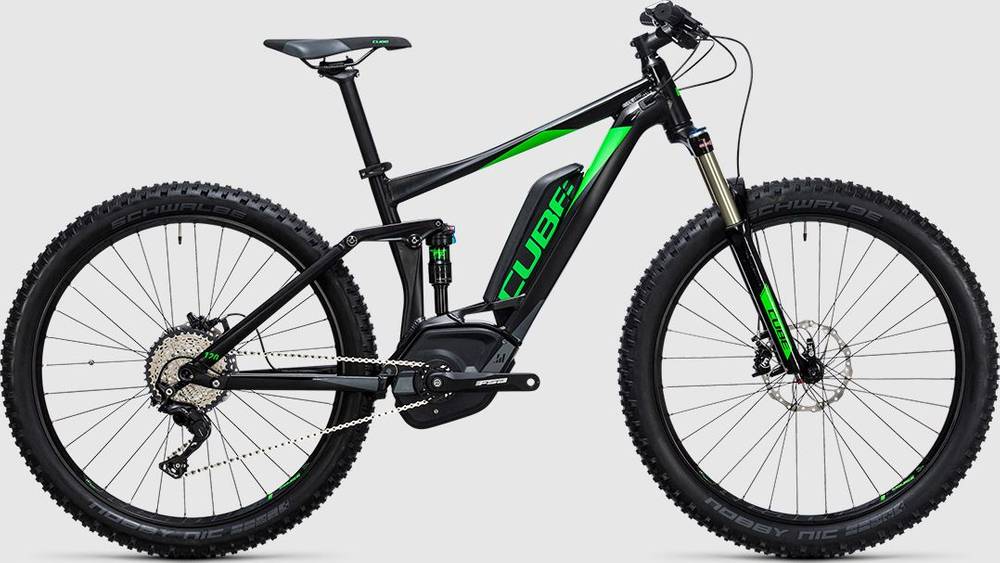

CUBE STEREO HYBRID 120 HPA Race 500 27.5+ 2017
2017 E-bike
Weight | 22.8 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Travel Rear 120mm -
Fork SunTour RAIDON 32
-
Groupset XT, SLX -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HPA Ultralight, Advanced Hydroform, Triple Butted, ETC 4-Link, ATG, Boost148mm, Tuned Drive Position, AXH, Plus Ready
Suspension Fork
SR Suntour Raidon 32 Air LO-R DS, Tapered, 120mm, Boost
Rear Shock
Fox Float DPS Performance, 184x44mm, Open/Medium/Firm Mode, EVOL Air Sleeve
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed, Direct Mount
Shift Levers
Shimano SLX SL-M7000
Cassette
Shimano SLX CS-M7000, 11-42T
Crank
FSA CK-745, 15T
Chain
KMC X11e, EcoProTeQ
Wheels
Front Hub
Shimano Deore HB-M618-B, QR15, Boost
Rear Hub
Shimano Deore FH-M618-B, X12, Boost
Rims
CUBE Ready 35, Disc, 32H
Tires
Schwalbe Nobby Nic Kevlar 2.8, TrailStar, Apex, Tubeless Easy
Brakes
Brakes
Magura MT Trail Custom (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar Pro, 740mm
Grips
CUBE Race Grip, 1-Clamp
Headset
FSA Orbit Z-t, Top Zero-Stack 1 1/8" (OD44mm), Bottom Integrated 1 1/2"
Seat
Saddle
Selle Royal MTB
Seatpost
CUBE Performance Post, 31.6mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.43 mm | 1.4 mm | 1.41 mm |
| Bottom Bracket Height | 327 mm | 327 mm | 327 mm | 327 mm |
| Front Center | 686 mm | 704 mm | 723 mm | 743 mm |
| Rake | 51 mm | 50 mm | 51 mm | 51 mm |
| Trail | 87 mm | 88 mm | 87 mm | 87 mm |
| Stack | 593 mm | 598 mm | 607 mm | 626 mm |
| Reach | 401 mm | 418 mm | 433 mm | 445 mm |
| Top Tube Length | 571 mm | 589 mm | 607 mm | 625 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 68.3 ° | 68.3 ° | 68.3 ° | 68.3 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm | 140 mm |
| Chainstay Length | 473 mm | 473 mm | 473 mm | 473 mm |
| Wheelbase | 1158 mm | 1176 mm | 1195 mm | 1215 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Rear Travel | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 27" | 27" | 27" | 27" |
Model Overview
STEREO HYBRID 120 HPA Race 500 27.5+ is part of the Cube E Stereo Hybrid 120 model. CUBE launched 83 e-bikes of this model so far. Take a sneak peek at all Cube E Stereo Hybrid 120 e-bikes models from 2017, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Trail e-bikes average weight
If we make a quick analysis of the average weight of a Trail e-bike, we get 23.7 kg (52.25 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 22.8 kg (50.27 lbs), the STEREO HYBRID 120 HPA Race 500 27.5+ model is slightly lighter than average. In conclusion, the average Trail e-bike weighs 3.95% more than STEREO HYBRID 120 HPA Race 500 27.5+.
Overview of components
Fork
The fork installed on this bike is the SunTour RAIDON 32 model. The travel on this model is 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
CUBE STEREO HYBRID 120 HPA Race 500 27.5+ e-bike has the Fox Float DPS Performance model installed, and has a travel of 120mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The STEREO HYBRID 120 HPA Race 500 27.5+ 2017 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The STEREO HYBRID 120 HPA Race 500 27.5+ comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
