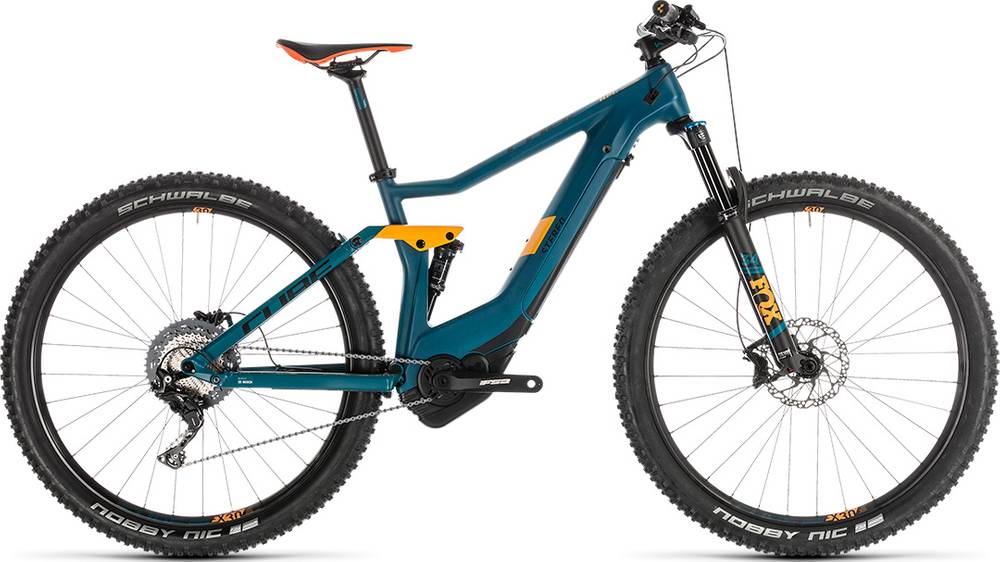

CUBE STEREO HYBRID 120 HPC SL 500 2019
2019 E-bike
Estimate price |
4,587$
Weight | 22.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" / 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Rhythm Float 34
-
Groupset XT, SLX -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control 4-Link, Agile Trail Geometry, Boost 148, Tuned Drive Position, AXH, Full Integrated Battery
Suspension Fork
Fox 34 Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, E-Bike Optimized, 120mm
Rear Shock
Fox Float DPS EVOL, 184x44mm, Open/Medium/Firm Mode
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed
Front Derailleur
N/A
Shift Levers
Shimano SLX SL-M7000
Cassette
Shimano SLX CS-M7000, 11-46T
Crank
FSA CK-745, 15T, 170mm
Chain
KMC X11e, EcoProTeQ
Chain Guide
N/A
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-MT400-B, 15QR, Boost, Centerlock
Rear Hub
Shimano FH-MT400-B, 12mm, Boost, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Nobby Nic, PerfL, 2.60
Brakes
Brakes
Shimano BR-MT520/BR-MT500, Hydr. Disc Brake (180/180)
Brake Levers
Shimano BR-MT520/BR-MT500
Cockpit
Stem
Newmen Evolution 318.4, 31.8mm
Handlebar
Newmen Evolution 318.20, 760mm
Grips
CUBE Race Grip 31mm, 1-Clamp
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seat
Saddle
Natural Fit Active Race
Seatpost
Newmen Evolution, 31.6mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500
Remote
Bosch Purion
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.45 mm | 1.42 mm | 1.42 mm |
| Bottom Bracket Height | 326 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 677 mm | 705 mm | 724 mm | 744 mm |
| Rake | 44 mm | 50 mm | 51 mm | 51 mm |
| Trail | 93 mm | 97 mm | 96 mm | 96 mm |
| Stack | 592 mm | 600 mm | 609 mm | 628 mm |
| Reach | 403 mm | 415 mm | 430 mm | 442 mm |
| Top Tube Length | 570.5 mm | 590 mm | 608 mm | 626 mm |
| Seat Tube Angle | 73.7 ° | 73.2 ° | 73.2 ° | 73.2 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 68.5 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm | 140 mm |
| Chainstay Length | 473 mm | 487 mm | 487 mm | 487 mm |
| Wheelbase | 1149 mm | 1190 mm | 1209 mm | 1229 mm |
| Bottom Bracket Drop | 29 mm | 30 mm | 30 mm | 30 mm |
| Rear Travel | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 27" | 29" | 29" | 29" |
About this model
STEREO HYBRID 120 HPC SL 500 belongs to the Cube E Stereo Hybrid 120 model. 83 e-bikes variations carry this model name so far. You can easily view all of the Cube E Stereo Hybrid 120 e-bikes models from 2019, here.
Model range prices
CUBE STEREO HYBRID 120 Pro 500 2019 is the most affordable e-bike of this model and has a price of 3397$. On the other hand, CUBE STEREO HYBRID 120 HPC SLT 500 2019, is the most expensive and costs 6901$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, CUBE STEREO HYBRID 120 HPC SL 500 price was 4246$. If we compare this with the average Trail e-bike cost we notice that the price is 26.18% higher.
Average weight for Trail e-bikes
The average weight for Trail e-bikes is 23.7 kg (52.25 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 22.9 kg (50.49 lbs), the STEREO HYBRID 120 HPC SL 500 model is slightly lighter than average. In short, the average Trail e-bike weight is 3.49% higher than this one.
Overview of components
Fork
This e-bike has the Fox Rhythm Float 34 fork installed. The fork’s travel is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
CUBE STEREO HYBRID 120 HPC SL 500 e-bike has the Fox Float DPS EVOL model installed, and has a travel of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The STEREO HYBRID 120 HPC SL 500 2019 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE STEREO HYBRID 120 HPC SL 500 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
