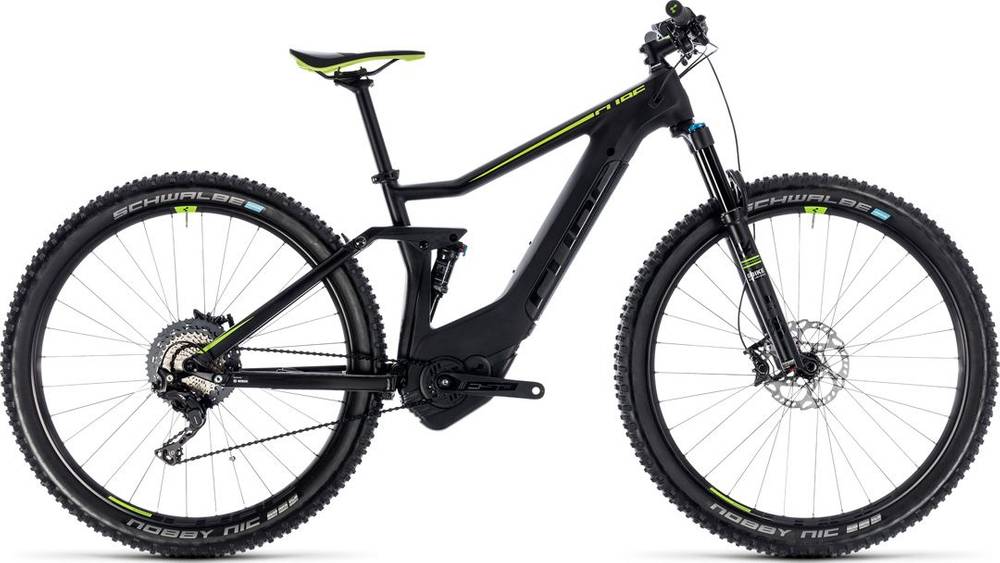

CUBE STEREO HYBRID 120 HPC SL 500 27.5 2018
2018 E-bike
Weight | 22.3 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Float 34
-
Groupset XT, FSA -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C:62 Monocoque Advanced Twin Mold Technology FT, HPA RT, ETC 4-Link, ATG, Boost148, Tuned Drive Position, AXH, FIB
Suspension Fork
Fox 34 Float, 3-Position Micro-Adjust GRIP Damper, Tapered, Ebike Optimized, 15x110mm, 120mm
Rear Shock
Fox Float DPS EVOL, 184x44mm, Open/Medium/Firm Mode
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed
Shift Levers
Shimano XT SL-M8000-I, Direct Attach
Cassette
Shimano SLX CS-M7000, 11-46T
Crank
FSA CK-745, 170mm, 15T
Chain
KMC X11e Turbo
Wheels
Front Hub
Shimano XT HB-M8000, 15QR, Boost, Centerlock
Rear Hub
Shimano XT FH-M8010-B, 12mm, Boost, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Nobby Nic Kevlar, Addix Speedgrip, Apex, Tubeless Easy (27.5: 2.60 // 29: 2.35)
Brakes
Brakes
Shimano XT BR-M8000, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar Pro, 740mm
Grips
CUBE Race Grip 31, 1-Clamp
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seat
Saddle
CUBE Race SL 145
Seatpost
CUBE Performance Post, 31.6mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" |
|---|---|
| Stack Reach Ratio | 1.47 mm |
| Bottom Bracket Height | 326 mm |
| Front Center | 677 mm |
| Rake | 44 mm |
| Trail | 93 mm |
| Stack | 592 mm |
| Reach | 403 mm |
| Top Tube Length | 570.5 mm |
| Seat Tube Angle | 73.7 ° |
| Seat Tube Length | 380 mm |
| Head Tube Angle | 68.5 ° |
| Head Tube Length | 105 mm |
| Chainstay Length | 473 mm |
| Wheelbase | 1149 mm |
| Bottom Bracket Drop | 29 mm |
| Rear Travel | 120 mm |
| Wheels | 27" |
About this model
STEREO HYBRID 120 HPC SL 500 27.5 belongs to the Cube E Stereo Hybrid 120 model. CUBE released 83 e-bikes variations of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail e-bikes
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Trail e-bikes average weight
Trail e-bikes have an average weight of 23.7 kg (52.25 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
CUBE STEREO HYBRID 120 HPC SL 500 27.5 it’s weighing 22.3 kg (49.16 lbs). At this weight, is a bit lighter than average. In conclusion, the average Trail e-bike weighs 6.28% more than STEREO HYBRID 120 HPC SL 500 27.5.
STEREO HYBRID 120 HPC SL 500 27.5 components
Fork
CUBE STEREO HYBRID 120 HPC SL 500 27.5 2018 e-bike is equipped with the Fox Float 34 fork, and has 120mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The STEREO HYBRID 120 HPC SL 500 27.5 has a rear shock with a travel of 120mm. The model Fox Float DPS EVOL is the one installed in this e-bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The STEREO HYBRID 120 HPC SL 500 27.5 2018 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE STEREO HYBRID 120 HPC SL 500 27.5 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
