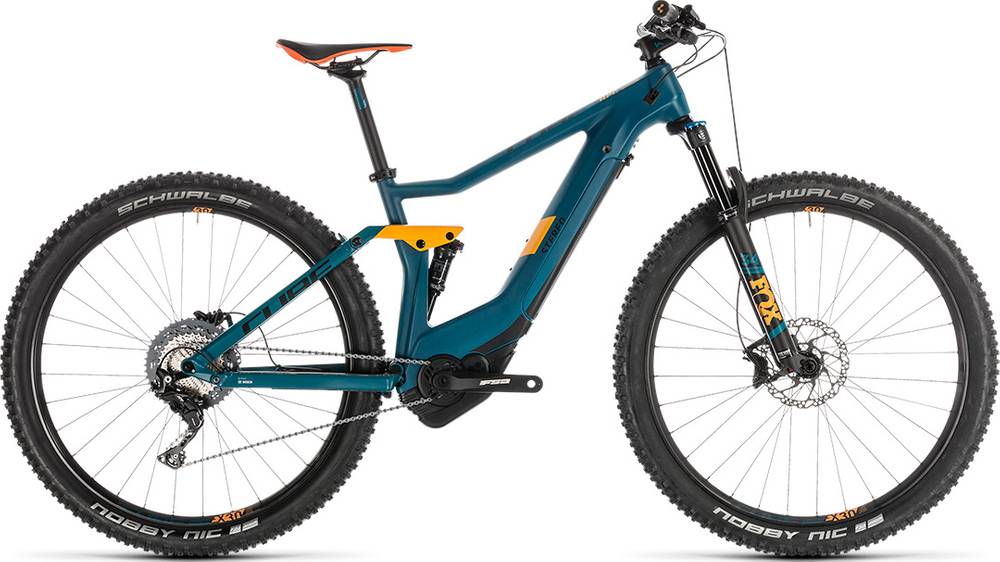

CUBE STEREO HYBRID 120 HPC SL 500 KIOX 2019
2019 E-bike
Estimate price |
4,701$
Weight | 22.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" / 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Rhythm Float 34
-
Groupset XT, SLX -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control 4-Link, Agile Trail Geometry, Boost 148, Tuned Drive Position, AXH, Full Integrated Battery
Suspension Fork
Fox 34 Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, E-Bike Optimized, 120mm
Rear Shock
Fox Float DPS EVOL, 184x44mm, Open/Medium/Firm Mode
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed
Shift Levers
Shimano SLX SL-M7000
Cassette
Shimano SLX CS-M7000, 11-46T
Crank
FSA CK-745, 15T, 170mm
Chain
KMC X11e, EcoProTeQ
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-MT400-B, 15QR, Boost, Centerlock
Rear Hub
Shimano FH-MT400-B, 12mm, Boost, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Nobby Nic, PerfL, 2.60
Brakes
Brakes
Shimano BR-MT520/BR-MT500, Hydr. Disc Brake (180/180)
Cockpit
Stem
Newmen Evolution 318.4, 31.8mm
Handlebar
Newmen Evolution 318.20, 760mm
Grips
CUBE Race Grip 31mm, 1-Clamp
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seat
Saddle
Natural Fit Active Race
Seatpost
Newmen Evolution, 31.6mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500
Remote
Bosch Kiox
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.45 mm | 1.42 mm | 1.42 mm |
| Bottom Bracket Height | 326 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 677 mm | 705 mm | 724 mm | 744 mm |
| Rake | 44 mm | 50 mm | 51 mm | 51 mm |
| Trail | 93 mm | 97 mm | 96 mm | 96 mm |
| Stack | 592 mm | 600 mm | 609 mm | 628 mm |
| Reach | 403 mm | 415 mm | 430 mm | 442 mm |
| Top Tube Length | 570.5 mm | 590 mm | 608 mm | 626 mm |
| Seat Tube Angle | 73.7 ° | 73.2 ° | 73.2 ° | 73.2 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 68.5 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm | 140 mm |
| Chainstay Length | 473 mm | 487 mm | 487 mm | 487 mm |
| Wheelbase | 1149 mm | 1190 mm | 1209 mm | 1229 mm |
| Bottom Bracket Drop | 29 mm | 30 mm | 30 mm | 30 mm |
| Rear Travel | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 27" | 29" | 29" | 29" |
Model Overview
STEREO HYBRID 120 HPC SL 500 KIOX belongs to the Cube E Stereo Hybrid 120 model. CUBE released 83 e-bikes variations of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
CUBE STEREO HYBRID 120 Pro 500 2019 is the most affordable e-bike of this model and has a price of 3397$. On the other hand, CUBE STEREO HYBRID 120 HPC SLT 500 2019, is the most expensive and costs 6901$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2019 for 4352$. In conclusion, this e-bike price is 29.33% more expensive than the price of the average Trail e-bike.
Average weight for Trail e-bikes
Trail e-bikes have an average weight of 23.7 kg (52.25 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
slightly lighter than average, STEREO HYBRID 120 HPC SL 500 KIOX has a weight of 22.9 kg (50.49 lbs). In short, the average Trail e-bike weight is 3.49% higher than this one.
STEREO HYBRID 120 HPC SL 500 KIOX components
Fork
The STEREO HYBRID 120 HPC SL 500 KIOX comes factory-installed with the Fox Rhythm Float 34 fork. This has a travel range of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this e-bike has the Fox Float DPS EVOL model, with a travel of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The wheels on STEREO HYBRID 120 HPC SL 500 KIOX are the 27.5″ aluminum type. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE STEREO HYBRID 120 HPC SL 500 KIOX has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
