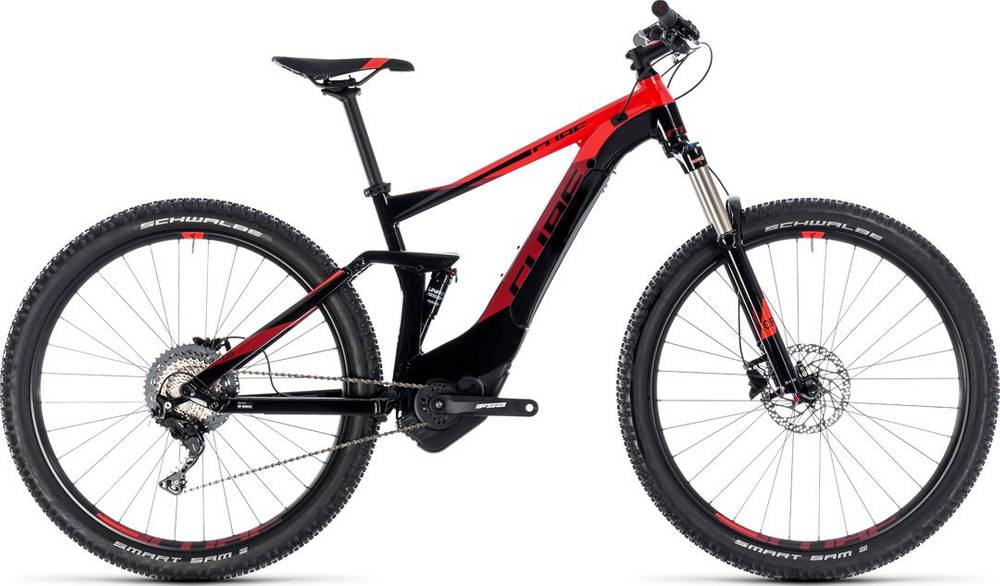

CUBE STEREO HYBRID 120 Pro 500 27.5 2018
2018 E-bike
Weight | 23.8 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Travel Rear 120mm -
Fork SunTour XCR 34
-
Groupset XT, SLX -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, Tripple Butted, ETC 4-Link, ATG, Boost148, Tuned Drive Position, AXH, FIB
Suspension Fork
SR Suntour XCR34 Air LO-R, Tapered, 15x110mm, 120mm
Rear Shock
SR Suntour UNAir LOR8, 184x44mm
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed
Shift Levers
Shimano SLX SL-M7000
Cassette
Shimano SLX CS-M7000, 11-46T
Crank
FSA CK-745, 170mm, 15T
Chain
KMC X11e, EcoProTeQ
Wheels
Front Hub
Shimano Deore HB-M6010-B, 15QR, Boost, Centerlock
Rear Hub
Shimano Deore FH-M6010-B, 12mm, Boost, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Smart Sam, Active, 2.60
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar Pro, 740mm
Grips
CUBE Race Grip 31, 1-Clamp
Headset
FSA 1.5B ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Selle Royal MTB
Seatpost
CUBE Performance Post, 31.6mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" |
|---|---|
| Stack Reach Ratio | 1.48 mm |
| Bottom Bracket Height | 340 mm |
| Front Center | 683 mm |
| Rake | 44 mm |
| Trail | 100 mm |
| Stack | 578 mm |
| Reach | 391 mm |
| Top Tube Length | 557 mm |
| Seat Tube Angle | 74 ° |
| Seat Tube Length | 375 mm |
| Head Tube Angle | 67.5 ° |
| Head Tube Length | 126 mm |
| Chainstay Length | 465 mm |
| Wheelbase | 1148 mm |
| Bottom Bracket Drop | 15 mm |
| Rear Travel | 120 mm |
| Wheels | 27" |
About this model
STEREO HYBRID 120 Pro 500 27.5 is a Cube E Stereo Hybrid 120 model. CUBE launched 83 e-bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail e-bikes average price
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Trail e-bikes average weight
On a deeper look, we notice that the average weight of a Trail e-bike is 23.7 kg (52.25 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
STEREO HYBRID 120 Pro 500 27.5 weighs 23.8 kg (52.47 lbs) and is slightly heavier than the average. In conclusion, the average Trail e-bike weighs 0.42% less than STEREO HYBRID 120 Pro 500 27.5.
STEREO HYBRID 120 Pro 500 27.5 components
Fork
CUBE STEREO HYBRID 120 Pro 500 27.5 2018 e-bike is equipped with the SunTour XCR 34 fork, and has 120mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
CUBE STEREO HYBRID 120 Pro 500 27.5 e-bike has the SR Suntour UNAir LOR8 model installed, and has a travel of 120mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When leaving the production line, the STEREO HYBRID 120 Pro 500 27.5 model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
