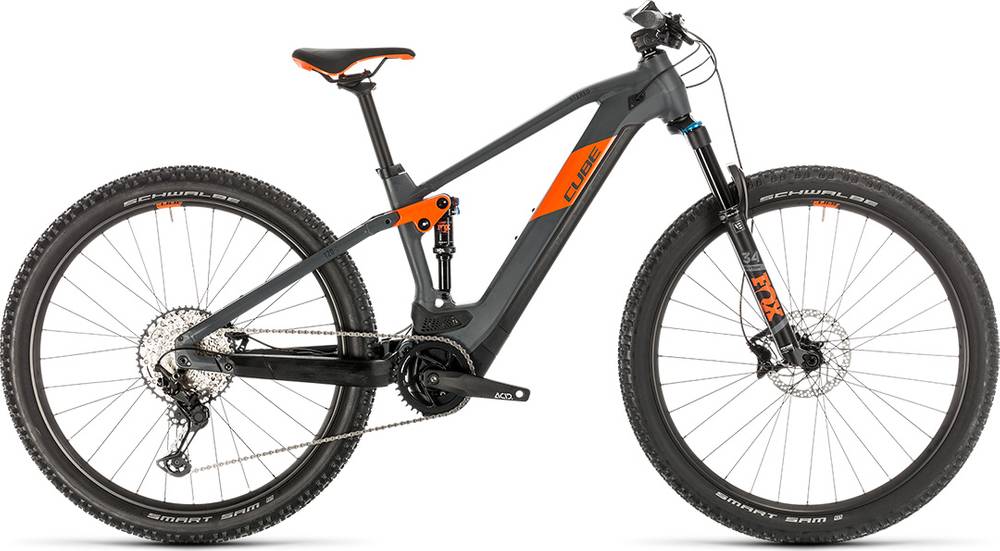

CUBE STEREO HYBRID 120 RACE 625 29 2020
2020 E-bike
Estimate price |
4,471$
Weight | 24.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Rhythm Float 34
-
Groupset XT, SLX -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery PowerTube 625 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HPA, High Performance Aluminium
Suspension Fork
Fox 34 Rhythm, E-Bike Tune, 120mm
Rear Shock
Fox Float DPS EVOL
Drivetrain
Rear Derailleur
Shimano XT, 10-51T, 1x12
Shift Levers
Shimano SLX SL-M7100
Cassette
Shimano SLX CS-M7100, 10-51T
Crank
ACID E-Crank, 38T
Chain
Shimano SLX CN-M7100
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub
Shimano FH-MT510-B, 12mm, Boost, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Smart Sam, Active, 2.60
Brakes
Brakes
Shimano BR-MT420
Cockpit
Stem
CUBE Performance Stem E-MTB, 31.8mm
Handlebar
Newmen Evolution SL 318.25, 760mm
Grips
Natural Fit All Terrain
Headset
FSA Orbit Z 1.5B ZS, Top Zero-Stack 1 1/2" (OD 56mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Natural Fit Sequence+
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX GEN4 (75Nm)
Battery
PowerTube 625
Remote
Kiox
Charger
2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.44 mm | 1.4 mm | 1.37 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Front Center | 726 mm | 735 mm | 757 mm | 784 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 104 mm | 104 mm | 104 mm | 104 mm |
| Stack | 620 mm | 629 mm | 639 mm | 652 mm |
| Reach | 433 mm | 438 mm | 456 mm | 477 mm |
| Top Tube Length | 589 mm | 597 mm | 618 mm | 643 mm |
| Seat Tube Angle | 75.3 ° | 75.3 ° | 75.3 ° | 75.3 ° |
| Seat Tube Length | 390 mm | 420 mm | 465 mm | 515 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 117 mm | 127 mm | 137 mm | 152 mm |
| Chainstay Length | 497 mm | 497 mm | 497 mm | 497 mm |
| Wheelbase | 1221 mm | 1230 mm | 1252 mm | 1279 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm | 37 mm |
| Standover Height | 786 mm | 788 mm | 790 mm | 828 mm |
| Rear Travel | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 29" | 29" | 29" | 29" |
Model Overview
STEREO HYBRID 120 RACE 625 29 is part of the Cube E Stereo Hybrid 120 model. CUBE launched 83 e-bikes of this model so far. You can easily view all of the Cube E Stereo Hybrid 120 e-bikes models from 2020, here.
Model range prices
CUBE STEREO HYBRID 120 PRO 500 29 2020 is the most economical model, with a starting price of 3415$. CUBE STEREO HYBRID 120 SL 625 29 2020 on the other hand costs 4657$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail e-bikes average price
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4139$. In conclusion, this e-bike price is 23% more expensive than the price of the average Trail e-bike.
Average weight for Trail e-bikes
Trail e-bikes weigh an average of 23.7 kg (52.25 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 24.4 kg (53.79 lbs), CUBE e-bike is slightly heavier than average. In other words, this model is 2.95% heavier than the average Trail e-bike.
Overview of components
Fork
This e-bike has the Fox Rhythm Float 34 fork installed. The fork’s travel is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The STEREO HYBRID 120 RACE 625 29 has a rear shock with a travel of 120mm. The model Fox Float DPS EVOL is the one installed in this e-bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
As for the wheels, CUBE STEREO HYBRID 120 RACE 625 29 2020, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
