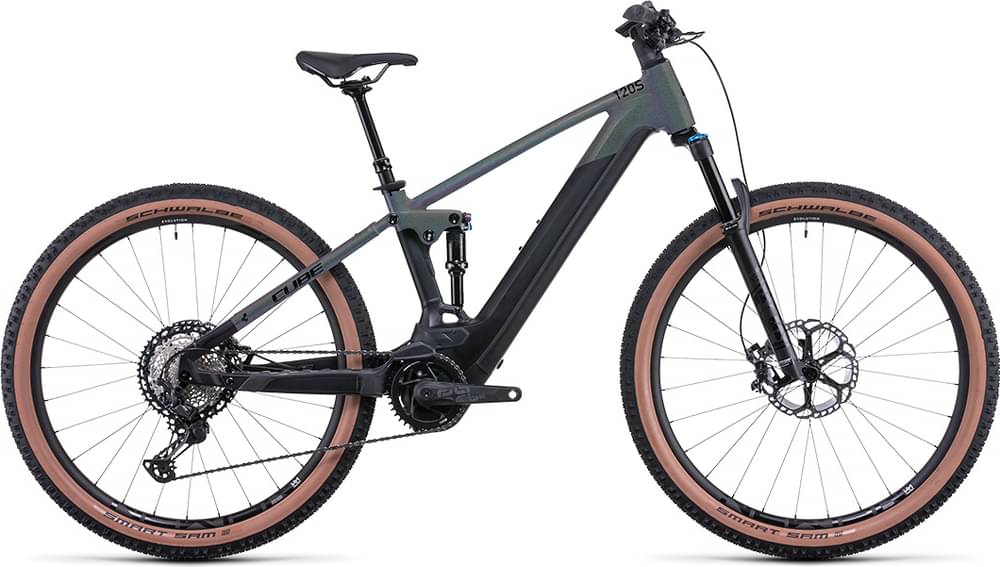

CUBE STEREO HYBRID 120 SLT 29 2022
2022 E-bike
Estimate price |
5,848$
Weight | 25 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Fork Fox Rhythm Float 34
-
Groupset XT, e*thirteen -
Suspension Full -
Motor mid-drive -
Battery [This component is subject to an embargo until 31.08.21] -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points
Suspension Fork
Fox 34 Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, E-Bike Optimized, 130mm
Rear Shock
Fox Float DPS EVOL, 185x55mm, Open/Medium/Firm Mode, Trunnion Mount
Drivetrain
Rear Derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shift Levers
Shimano XT SL-M8100-IR, Direct Attach
Cassette
Shimano XT CS-M8100, 10-51T
Crank
e*thirteen Plus Crank, 170mm, 38T
Chain
Shimano CN-M8100
Pedals
CUBE PP MTB
Wheels
Rims
Newmen Evolution SL E.G. 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
Schwalbe Smart Sam, Active, 2.6
Brakes
Brakes
Shimano XT BR-M8120, Hydr. Disc Brake (203/203)
Cockpit
Stem
CUBE Performance Stem E-MTB, 31.8mm
Handlebar
Newmen Evolution SL 318.25, 760mm
Grips
Natural Fit All Terrain
Headset
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Sequence+
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 30.9mm (M: 125mm, L, XL: 150mm)
Motor & Battery
Motor
[This component is subject to an embargo until 31.08.21]
Battery
[This component is subject to an embargo until 31.08.21]
Remote
[This component is subject to an embargo until 31.08.21]
Charger
[This component is subject to an embargo until 31.08.21]
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.38 mm | 1.35 mm |
| Bottom Bracket Height | 332 mm | 332 mm | 332 mm |
| Front Center | 767 mm | 793 mm | 820 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 104 mm | 104 mm | 104 mm |
| Stack | 650 | 659 mm | 672.5 mm |
| Reach | 457 mm | 479 mm | 499.6 mm |
| Top Tube Length | 613 mm | 638 mm | 663 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 420 mm | 465 mm | 515 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 135 mm | 145 mm | 160 mm |
| Chainstay Length | 483 mm | 483 mm | 483 mm |
| Wheelbase | 1247 mm | 1273 mm | 1299 mm |
| Bottom Bracket Drop | 42 mm | 42 mm | 42 mm |
| Standover Height | 786 mm | 793 mm | 834 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
STEREO HYBRID 120 SLT 29 belongs to the Cube E Stereo Hybrid 120 model. There are 83 e-bikes that carry this model name. You can easily view all of the Cube E Stereo Hybrid 120 e-bikes models from 2022, here.
Model range prices
The most economical model, the CUBE STEREO HYBRID 120 PRO 625 2022 has a starting price of 3874$. CUBE STEREO HYBRID 120 SLT 29 2022 on the other hand is the most expensive at 5414$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail e-bikes average price
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 5414$. Doing a quick comparison, we notice that STEREO HYBRID 120 SLT 29 price is 60.89% higher than the average cost of a Trail e-bike.
Average weight for Trail e-bikes
Trail e-bikes have an average weight of 23.7 kg (52.25 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
a bit heavier than average, STEREO HYBRID 120 SLT 29 has a weight of 25 kg (55.12 lbs). In other words, this model is 5.49% heavier than the average Trail e-bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The Fox Rhythm Float 34 is included from the factory. It has a travel distance of 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The STEREO HYBRID 120 SLT 29 2022 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
CUBE STEREO HYBRID 120 SLT 29 comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
