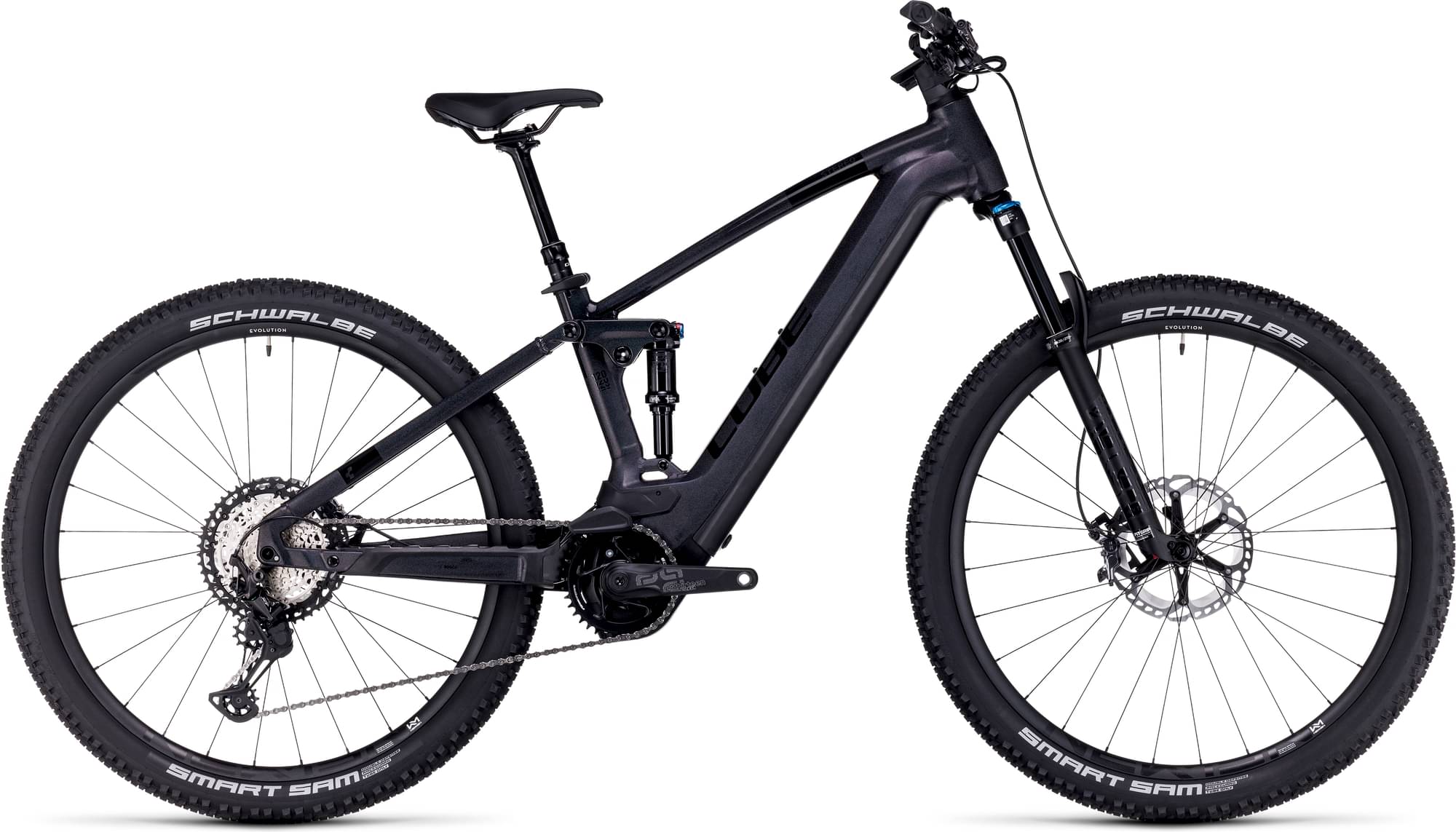

CUBE STEREO HYBRID 120, SLT 750 2023
2023 E-bike
Estimate price |
6,078$
Weight | 25.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Fork Fox Rhythm Float 34
-
Groupset XT, e*thirteen -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

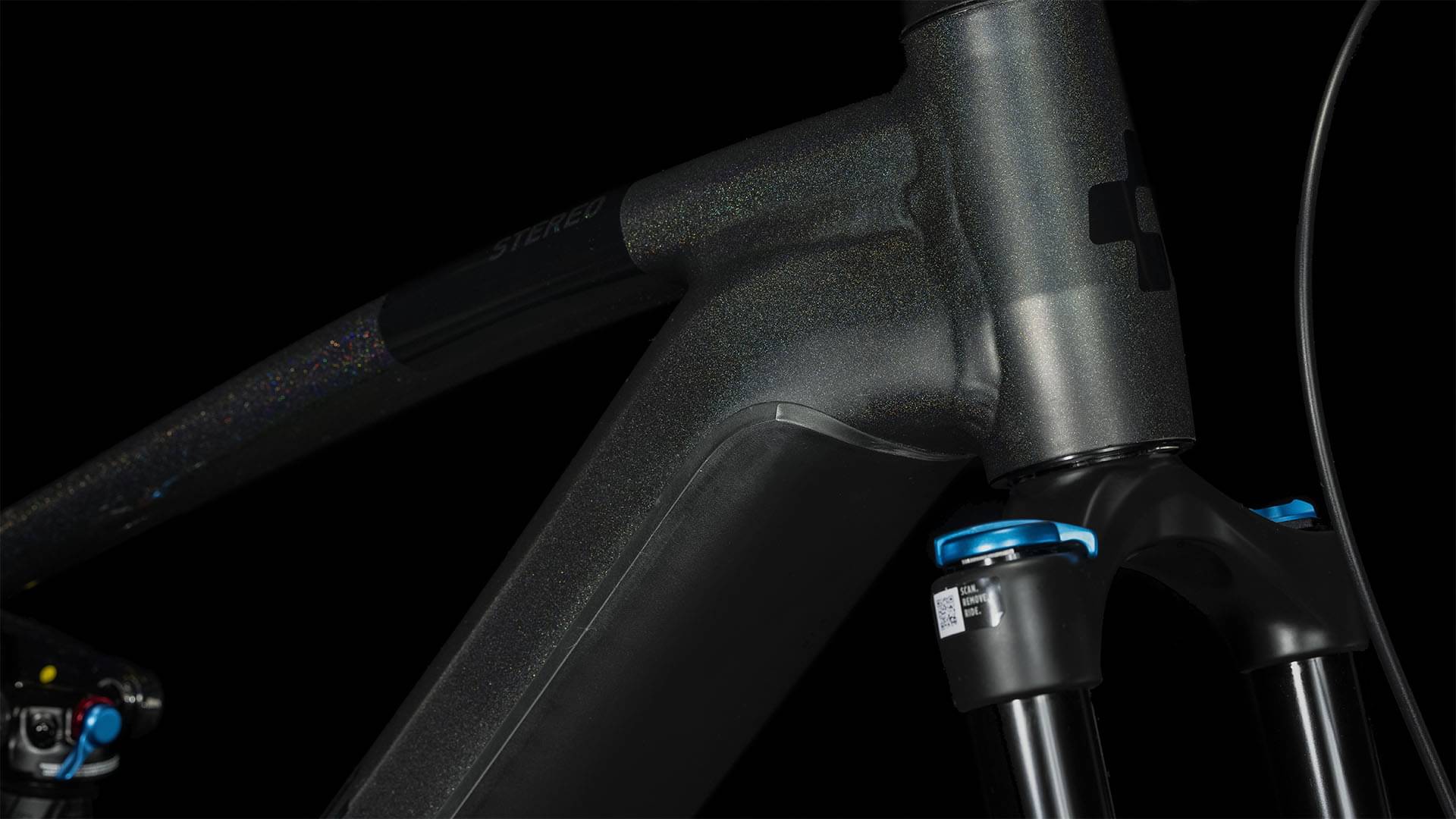

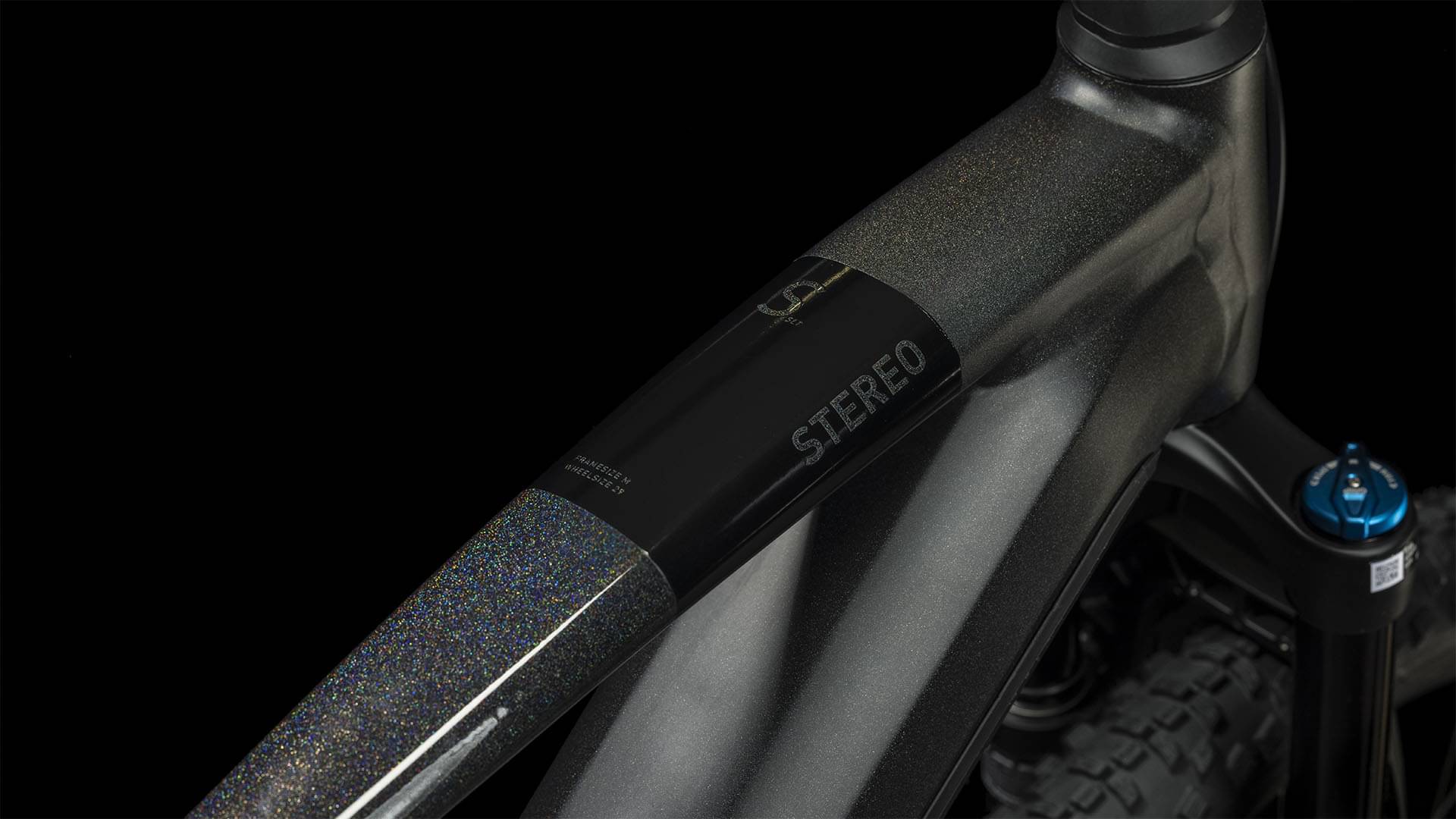

Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, Fully Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points
Suspension Fork
Fox 34 Float Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, E-Bike Optimized, 130mm
Rear Shock

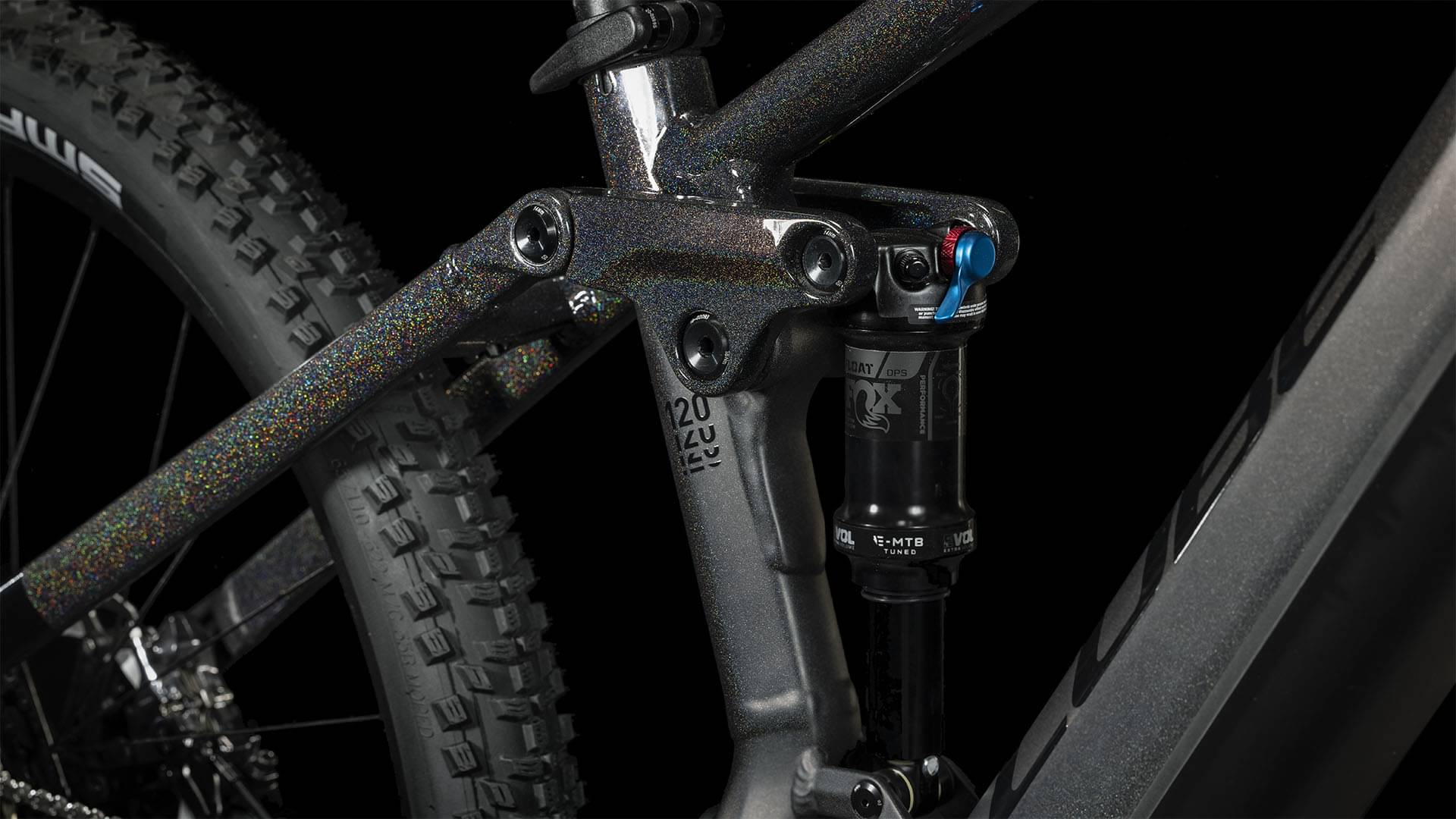

Fox Float DPS EVOL, 185x55mm (27.5: 165x45mm), Open/Medium/Firm Mode, Trunnion Mount
Drivetrain
Rear Derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shift Levers
Shimano XT SL-M8100-IR, Direct Attach
Cassette
Shimano XT CS-M8100, 10-51T
Crank

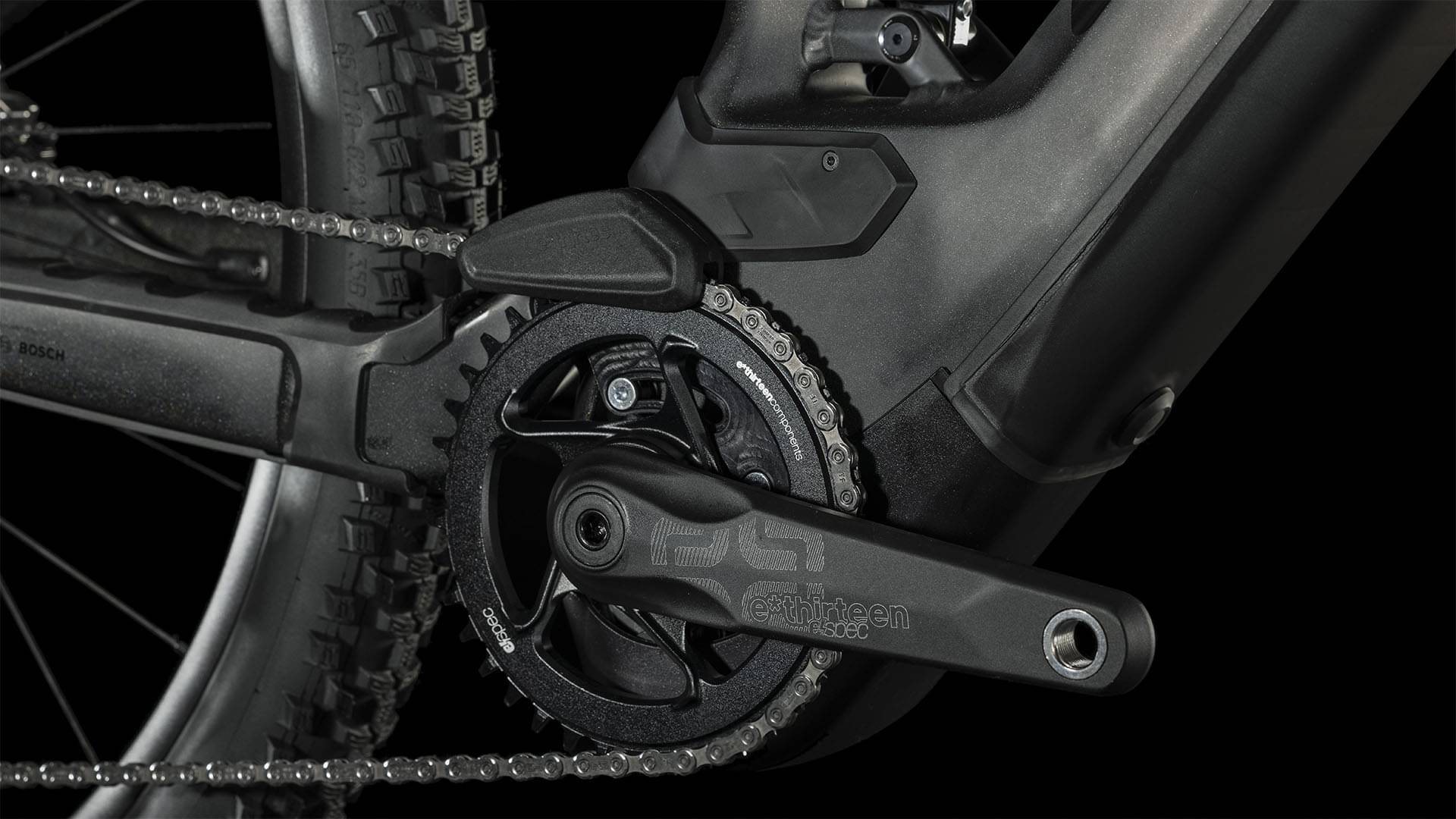

e*thirteen Plus Crank, 170mm, 38T
Chain
Shimano CN-M8100
Pedals
ACID PP MTB
Wheels
Rims
Newmen Evolution SL E.G. 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
Schwalbe Smart Sam, Performance, Kevlar, 2.6
Brakes
Brakes
Shimano XT BR-M8120, Hydr. Disc Brake (203/203)

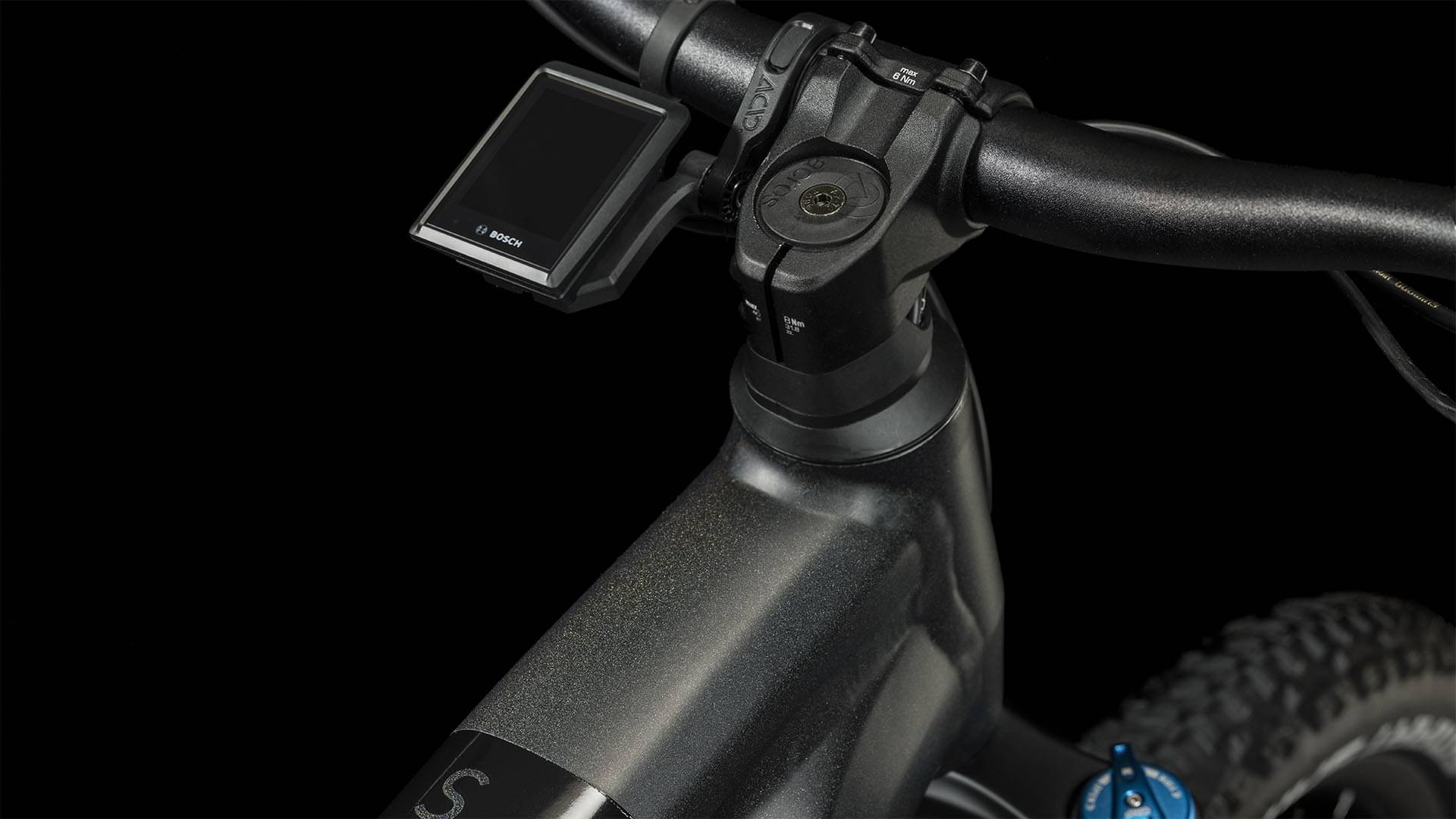

Cockpit
Stem
CUBE Performance Stem E-MTB, 31.8mm
Handlebar
Newmen Evolution SL 318.25, 760mm
Grips
ACID Hybrid Perform
Headset
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Sequence+
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 750
Remote
Bosch LED Remote
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.42 mm | 1.38 mm | 1.35 mm |
| Bottom Bracket Height | 331 mm | 331 mm | 331 mm | 331 mm |
| Front Center | 734 mm | 767 mm | 793 mm | 820 mm |
| Rake | 43 mm | 51 mm | 51 mm | 51 mm |
| Trail | 106 mm | 104 mm | 104 mm | 104 mm |
| Stack | 614 mm | 651 mm | 660 mm | 674 mm |
| Reach | 438 mm | 458 mm | 480 mm | 501 mm |
| Top Tube Length | 582 mm | 614 mm | 639 mm | 664 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 370 mm | 420 mm | 465 mm | 515 mm |
| Head Tube Angle | 66.7 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 130 mm | 135 mm | 145 mm | 160 mm |
| Chainstay Length | 470 mm | 484 mm | 484 mm | 484 mm |
| Wheelbase | 1203 mm | 1248 mm | 1274 mm | 1301 mm |
| Bottom Bracket Drop | 24 mm | 43 mm | 43 mm | 43 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
STEREO HYBRID 120, SLT 750 belongs to the Cube E Stereo Hybrid 120 model. 83 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
CUBE STEREO HYBRID 120, PRO 625 2023 is the most economical model, with a starting price of 4140$. CUBE STEREO HYBRID 120, SLT 750 2023 on the other hand costs 5626$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2023 and its price was 5626$. If we compare this with the average Trail e-bike cost we notice that the price is 67.19% more expensive.
Trail e-bikes average weight
On a deeper look, we notice that the average weight of a Trail e-bike is 23.7 kg (52.25 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 25.3 kg (55.78 lbs), the STEREO HYBRID 120, SLT 750 model is a bit heavier than average. In conclusion, the average Trail e-bike weighs 6.75% less than STEREO HYBRID 120, SLT 750.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
STEREO HYBRID 120, SLT 750 components
Fork
This e-bike has the Fox Rhythm Float 34 fork installed. The fork’s travel is 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The wheels on STEREO HYBRID 120, SLT 750 are the 27.5″ aluminum type. These wheels will provide you with more control over the e-bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
STEREO HYBRID 120, SLT 750 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
CUBE STEREO HYBRID 120, SLT 750 comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
