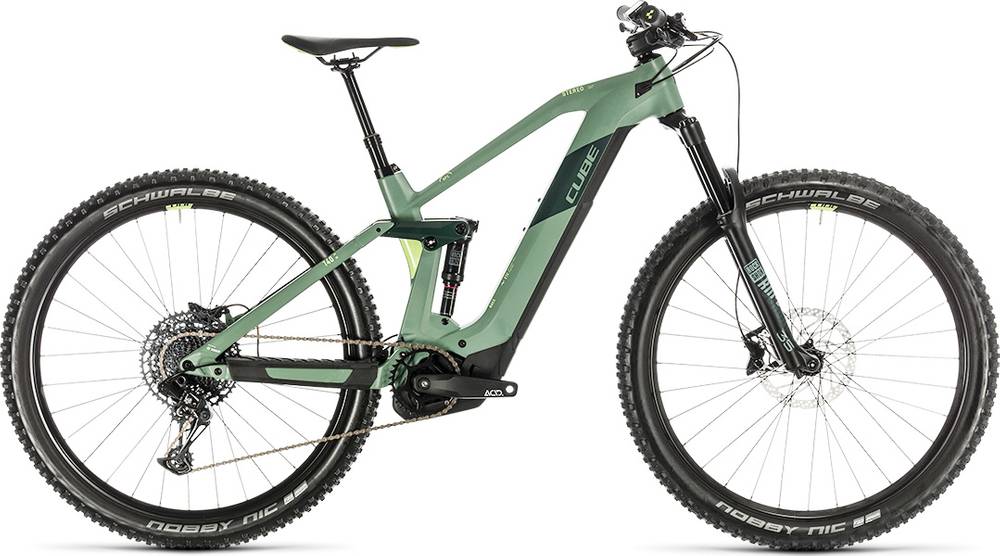

CUBE STEREO HYBRID 140 HPC RACE 625 29 2020
2020 E-bike
Estimate price |
4,471$
Weight | 23.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox 35 Gold RL
-
Groupset NX Eagle, SX Eagle -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery PowerTube 625 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HPC, High Performance Composite
Suspension Fork
RockShox 35 Gold, eMTB Approved, 140mm
Rear Shock
RockShox Deluxe Select
Drivetrain
Rear Derailleur
SRAM NX Eagle™, 11-50T, 1x12
Shift Levers
SRAM SX Eagle™ Trigger, Single Click
Cassette
SRAM PG-1210 Eagle™, 11-50T
Crank
ACID E-Crank, 34T
Chain
SRAM SX Eagle™
Wheels
Front Hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub
Shimano FH-MT400-B, 12mm, Boost, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Nobby Nic, PerfL, 2.60
Brakes
Brakes
Shimano BR-MT420
Cockpit
Stem
CUBE Performance Stem E-MTB, 31.8mm
Handlebar
Newmen Evolution SL 318.25, 760mm
Grips
CUBE Race Grip 31mm, 1-Clamp
Headset
FSA Orbit Z 1.5B ZS, Top Zero-Stack 1 1/2" (OD 56mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Natural Fit Venec Lite
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (16": 361x100mm; 18": 403x120mm; 20", 22": 425x130mm)
Motor & Battery
Motor
Bosch Drive Unit Performance CX GEN4 (75Nm)
Battery
PowerTube 625
Remote
Kiox
Charger
2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.42 mm | 1.38 mm | 1.36 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 730 mm | 751 mm | 776 mm | 803 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 111 mm | 111 mm | 111 mm | 111 mm |
| Stack | 606 mm | 608 mm | 618 mm | 636 mm |
| Reach | 408 mm | 428 mm | 449 mm | 468 mm |
| Top Tube Length | 561 mm | 582 mm | 606 mm | 633 mm |
| Seat Tube Angle | 75.2 ° | 75.2 ° | 75.2 ° | 75.2 ° |
| Seat Tube Length | 375 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 105 mm | 108 mm | 118 mm | 138 mm |
| Chainstay Length | 449 mm | 449 mm | 449 mm | 449 mm |
| Wheelbase | 1177 mm | 1198 mm | 1223 mm | 1250 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm | 36 mm |
| Standover Height | 763 mm | 763 mm | 763 mm | 798 mm |
| Rear Travel | 140 mm | 140 mm | 140 mm | 140 mm |
| Wheels | 29" | 29" | 29" | 29" |
About this model
STEREO HYBRID 140 HPC RACE 625 29 is a Cube E Stereo Hybrid 140 model. CUBE launched 64 e-bikes of this model so far. Take a sneak peek at all Cube E Stereo Hybrid 140 e-bikes models from 2020, by clicking here.
Model range prices
The most economical model, the CUBE STEREO HYBRID 140 HPC RACE 500 29 2020 has a starting price of 3829$. CUBE STEREO HYBRID 140 HPC SLT 625 29 2020 on the other hand is the most expensive at 8279$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail e-bikes
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When CUBE released this model in 2020, its price was 4139$. Comparing this to the average Trail e-bike price, we see that the price is 23% more expensive.
Average weight for Trail e-bikes
Trail e-bikes have an average weight of 23.7 kg (52.25 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 23.7 kg (52.25 lbs), CUBE e-bike is equally heavier with average. To sum up, it’s 0% heavier than the average weight of Trail e-bikes.
Overview of components
Fork
The STEREO HYBRID 140 HPC RACE 625 29 comes factory-installed with the RockShox 35 Gold RL fork. This has a travel range of 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the RockShox Deluxe Select rear shock model, which has a travel of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When leaving the production line, the STEREO HYBRID 140 HPC RACE 625 29 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE STEREO HYBRID 140 HPC RACE 625 29 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Dropper post
The CUBE model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
