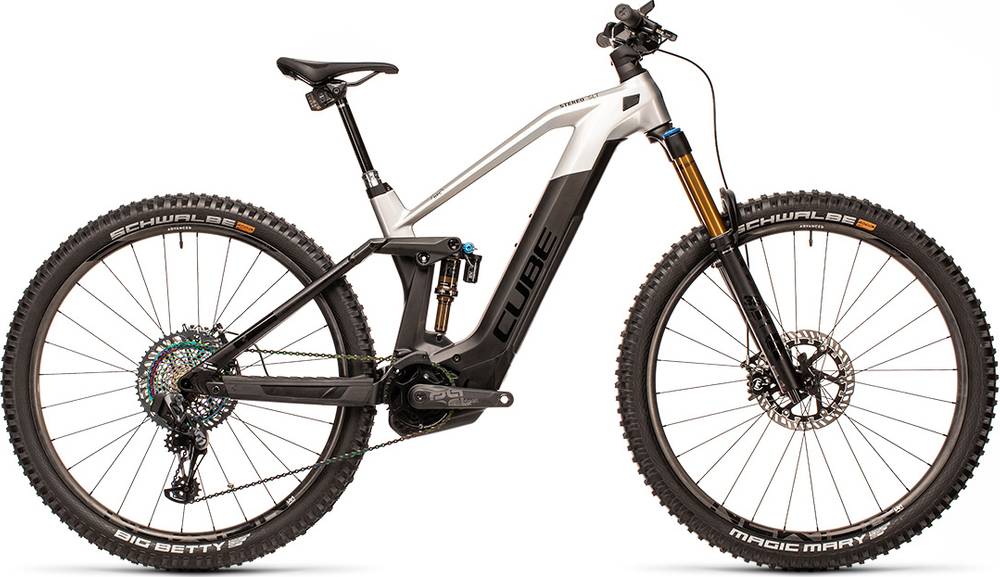

CUBE STEREO HYBRID 140 HPC SLT 625 NYON 2021
2021 E-bike
Estimate price |
9,691$
Weight | 23.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" / 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle AXS, e*thirteen -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 625 -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C:62 Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, Full Integrated Battery
Suspension Fork
Fox 36 Float Factory FIT GRIP2, Tapered, 15x110mm, E-Bike Tune, 150mm, Kashima Coated
Rear Shock
Fox Float DPX2 Factory EVOL, 185x55mm, Open(Adjustable)/Medium/Firm Mode, Trunnion Mount, Kashima Coated
Drivetrain
Rear Derailleur
SRAM X01 Eagle™ AXS, 12-Speed
Shift Levers
SRAM Eagle AXS™ Controller
Cassette
SRAM XG-1299 Eagle™ Rainbow, 10-52T
Crank
e*thirteen Plus Crank, 165mm (27.5: 36T // 29: 34T)
Chain
SRAM PC-XX1 Eagle™ Rainbow
Chain Guide
e*thirteen Plus e*spec
Wheels
Rims
Newmen Advanced SL A.30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4
Brakes
Brakes
Magura MT7, Hydr. Disc Brake (203/203)
Cockpit
Stem
CUBE Performance Stem E-MTB, 31.8mm
Handlebar
Newmen Advanced 318.25, Carbon, 780mm
Grips
CUBE Race Grip 31mm, 1-Clamp
Headset
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Venec
Seatpost
RockShox Reverb AXS™ 31.6mm (XS, S: 100mm, M, L: 150mm, XL: 170mm)
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
Battery
Bosch PowerTube 625
Remote
Bosch Nyon
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.48 mm | 1.42 mm | 1.37 mm | 1.36 mm |
| Bottom Bracket Height | 339 mm | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 709 mm | 730 mm | 751 mm | 776 mm | 803 mm |
| Rake | 44 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 110 mm | 111 mm | 111 mm | 111 mm | 111 mm |
| Stack | 576 mm | 610 mm | 612 mm | 622 mm | 640 mm |
| Reach | 406 mm | 412 mm | 432 mm | 453 mm | 472 mm |
| Top Tube Length | 554 mm | 565 mm | 586 mm | 610 mm | 637 mm |
| Seat Tube Angle | 75.3 ° | 75.2 ° | 75.2 ° | 75.2 ° | 75.2 ° |
| Seat Tube Length | 345 mm | 375 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 105 mm | 105 mm | 108 mm | 118 mm | 138 mm |
| Chainstay Length | 444 mm | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1153 mm | 1181 mm | 1202 mm | 1227 mm | 1254 mm |
| Bottom Bracket Drop | 16 mm | 36 mm | 36 mm | 36 mm | 36 mm |
| Standover Height | 731 mm | 767 mm | 767 mm | 767 mm | 802 mm |
| Rear Travel | 140 mm | 140 mm | 140 mm | 140 mm | 140 mm |
| Wheels | 27" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
STEREO HYBRID 140 HPC SLT 625 NYON is a Cube E Stereo Hybrid 140 model. CUBE released 64 e-bikes variations of this model so far. You can easily view all of the Cube E Stereo Hybrid 140 e-bikes models from 2021, here.
Model range prices
CUBE STEREO HYBRID 140 HPC PRO 625 2021 is the most affordable e-bike of this model and has a price of 4140$. On the other hand, CUBE STEREO HYBRID 140 HPC SLT 625 NYON 2021, is the most expensive and costs 8971$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 8971$. If we compare this with the average Trail e-bike cost we notice that the price is 166.6% more expensive.
Average weight for Trail e-bikes
Trail e-bikes have an average weight of 23.7 kg (52.25 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
slightly lighter than average, STEREO HYBRID 140 HPC SLT 625 NYON has a weight of 23.6 kg (52.03 lbs). To sum up, it’s 0.42% lighter than the average weight of Trail e-bikes.
Overview of components
Fork
This e-bike has the Fox Factory Float 36 fork installed. The fork’s travel is 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this e-bike has the Fox Float DPX2 Factory EVOL model, with a travel of 140mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The wheels on STEREO HYBRID 140 HPC SLT 625 NYON are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
STEREO HYBRID 140 HPC SLT 625 NYON comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the STEREO HYBRID 140 HPC SLT 625 NYON. Therefore, climbing or descending will be a breeze.
