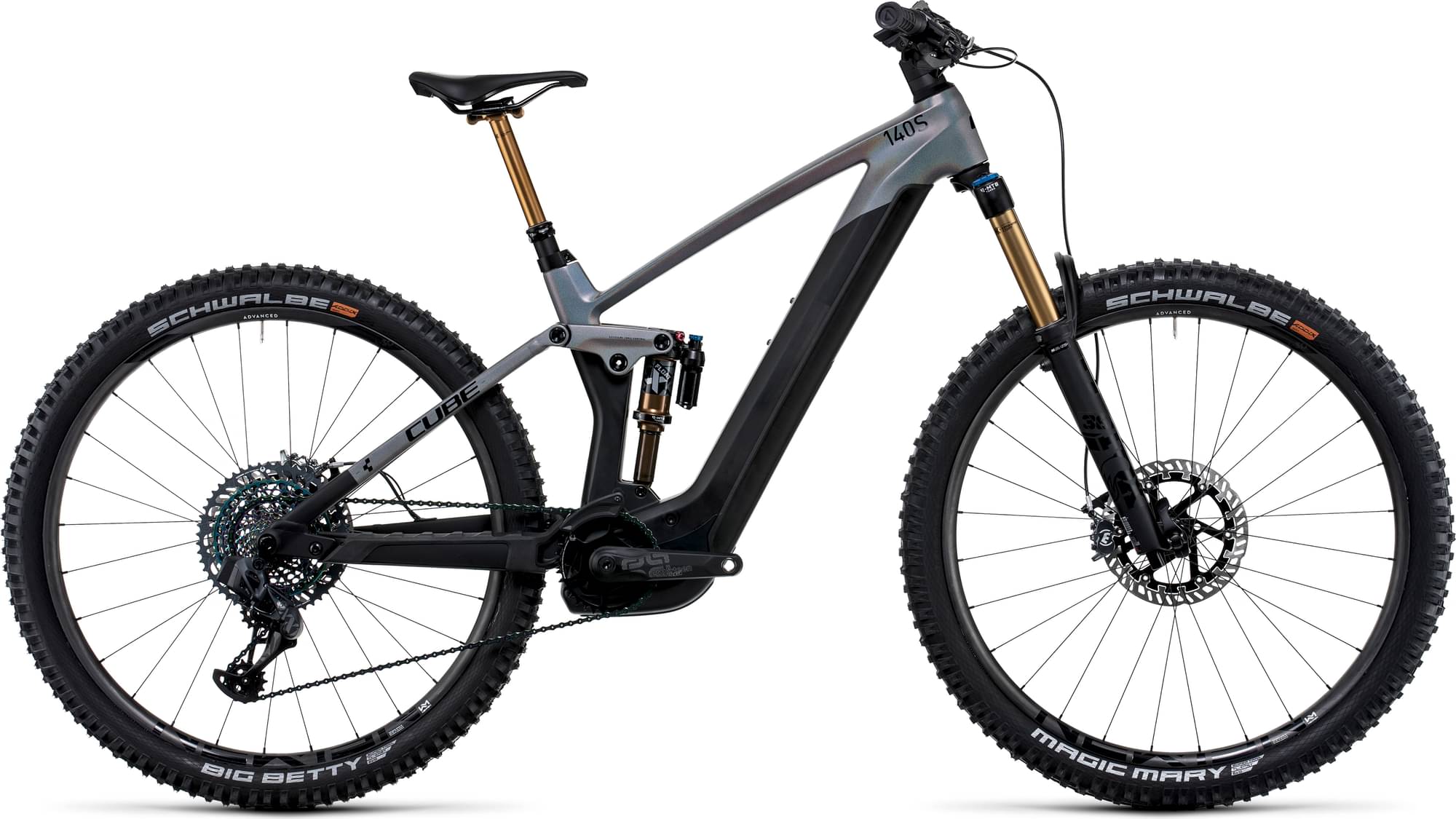

CUBE STEREO HYBRID 140 HPC, SLT 750 29 2023
2023 E-bike
Estimate price |
9,633$
Weight | 23.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Fork Fox Factory Float 36
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750 -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

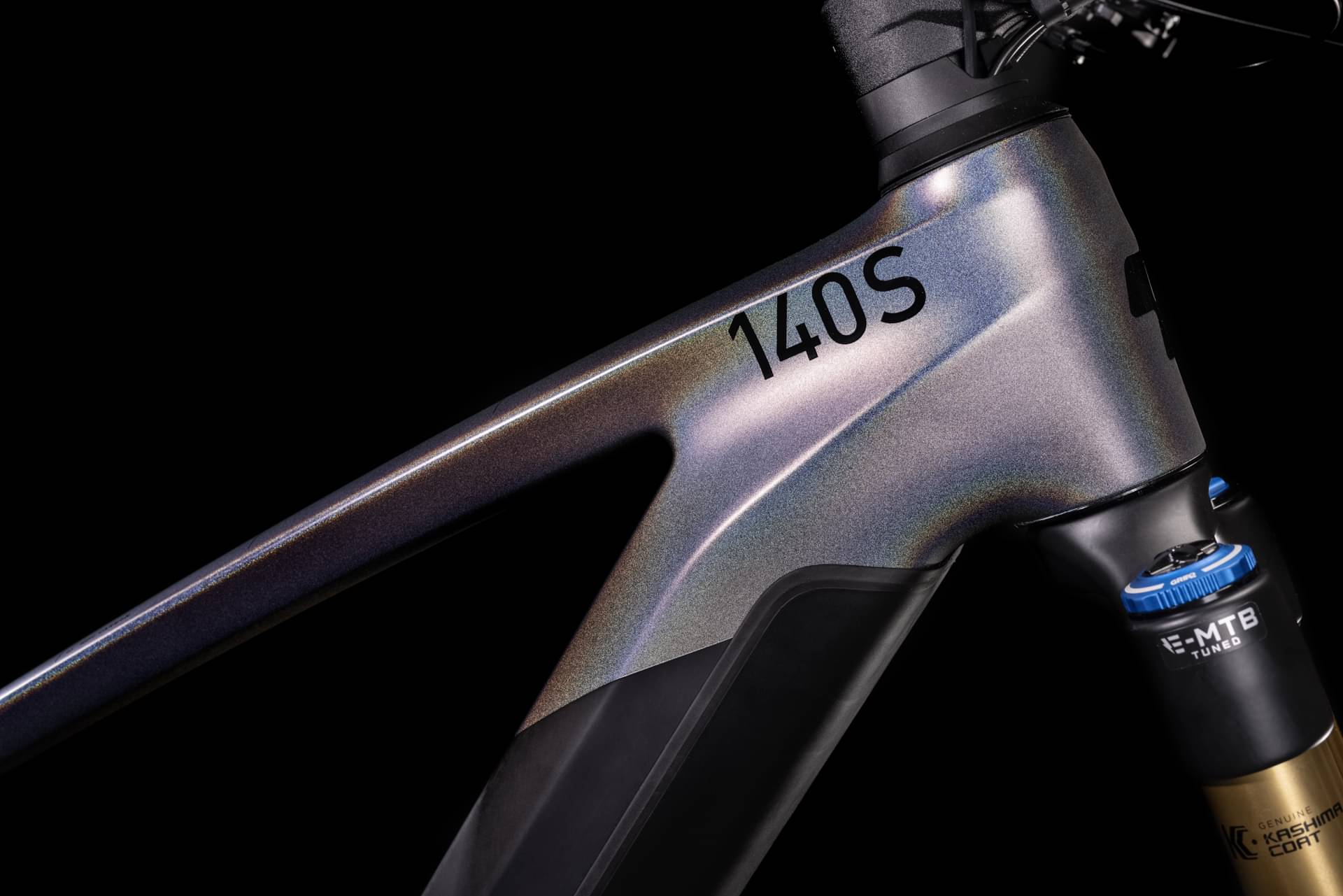

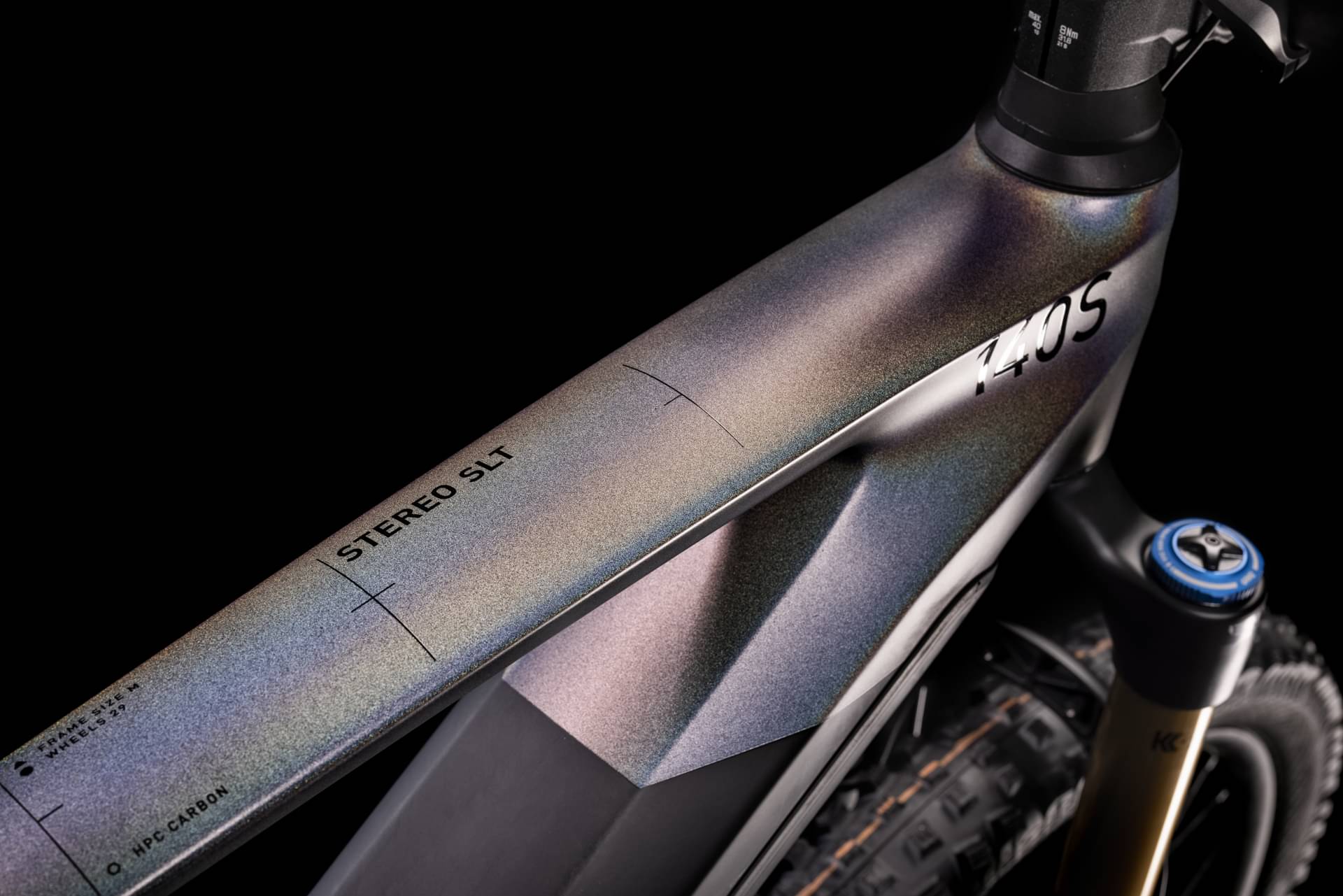

Frame
C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH?, Full Integrated Battery, Advanced Internal Cable Routing

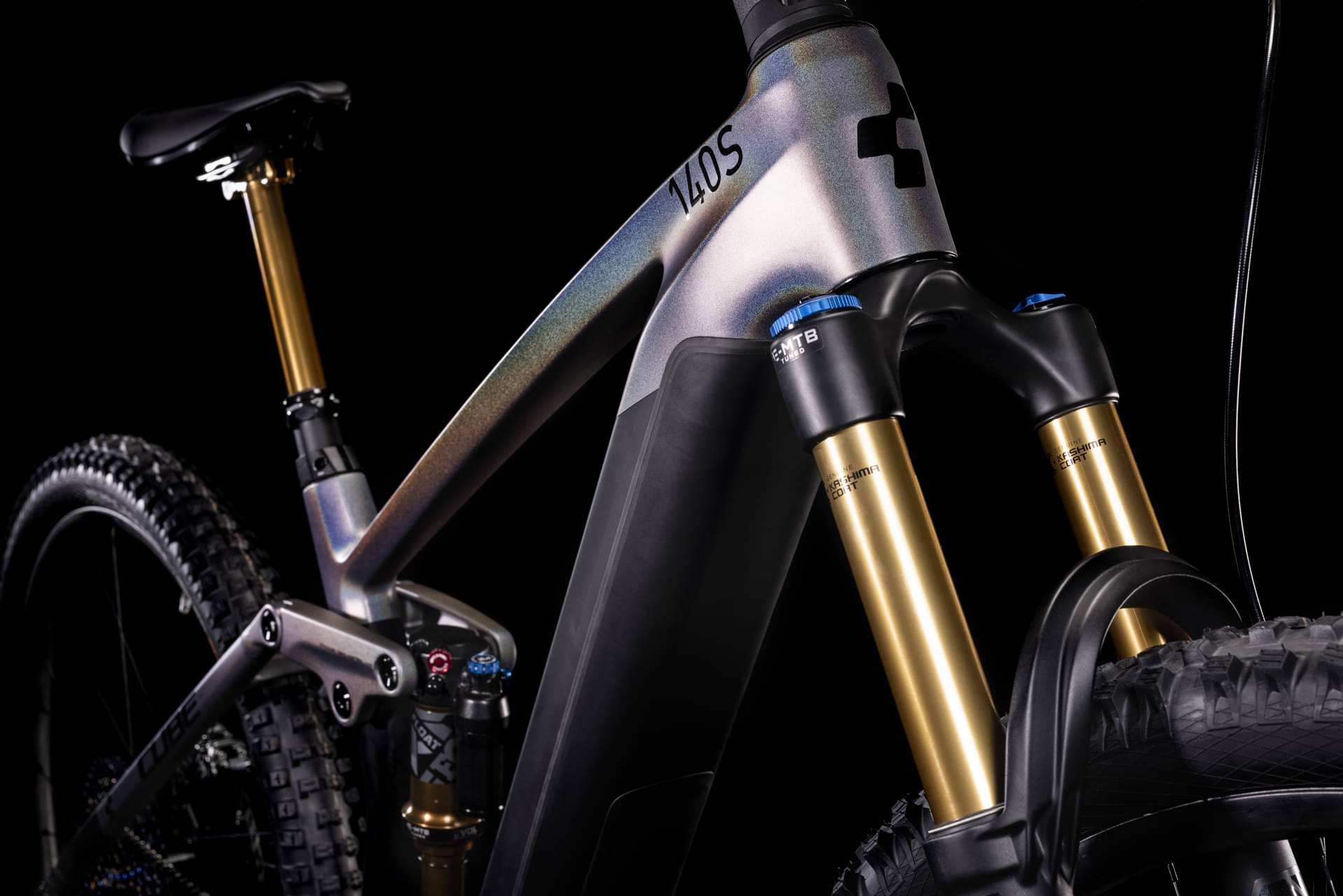

Suspension Fork
Fox 36 Float Factory FIT GRIP2, Tapered, 15x110mm, E-Bike Tune, 150mm, Kashima Coated

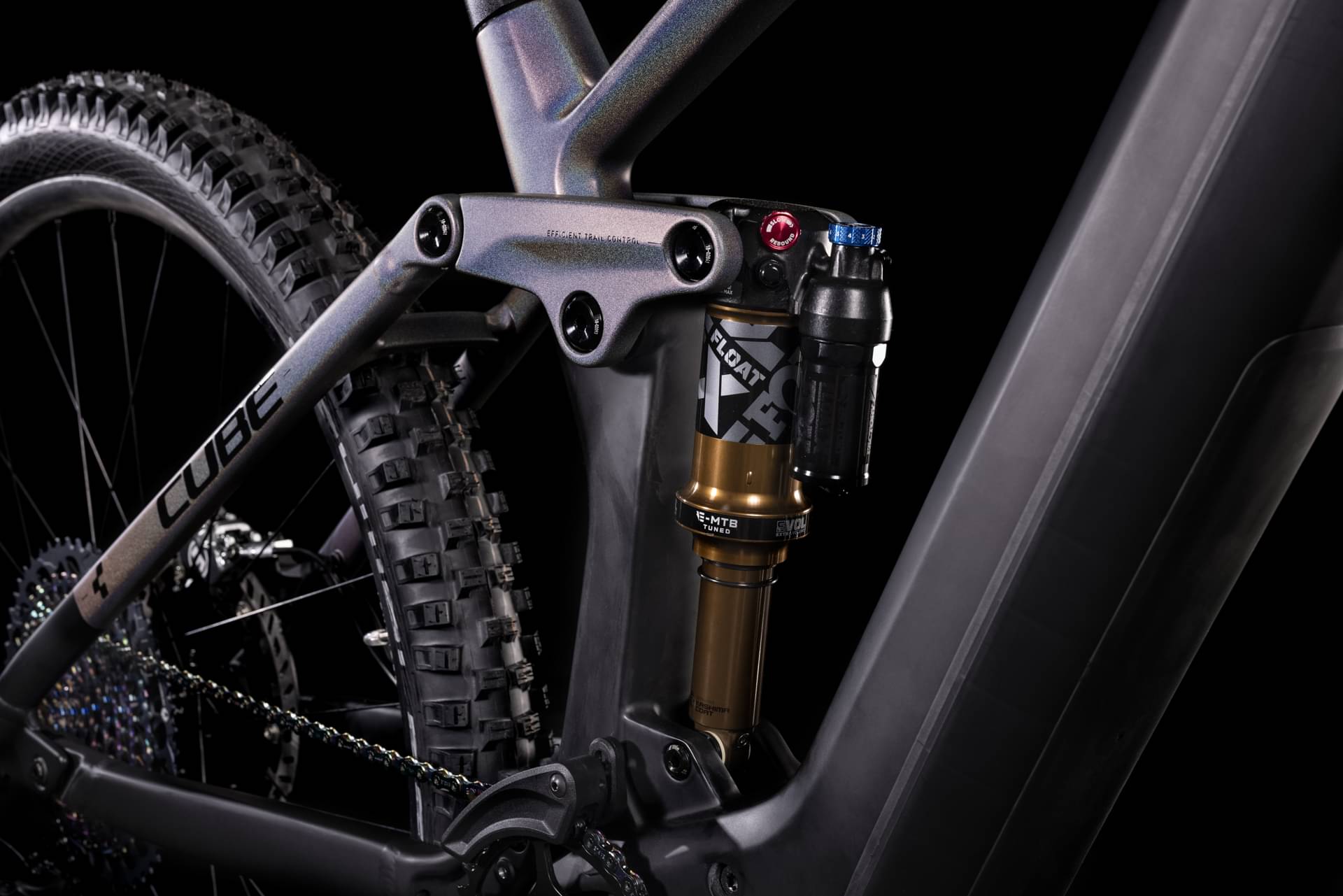

Rear Shock
Fox Float X Factory, 205x60mm, Trunnion Mount, Adjustable LSC w/ 2-Pos. Lever, Kashima Coated
Drivetrain

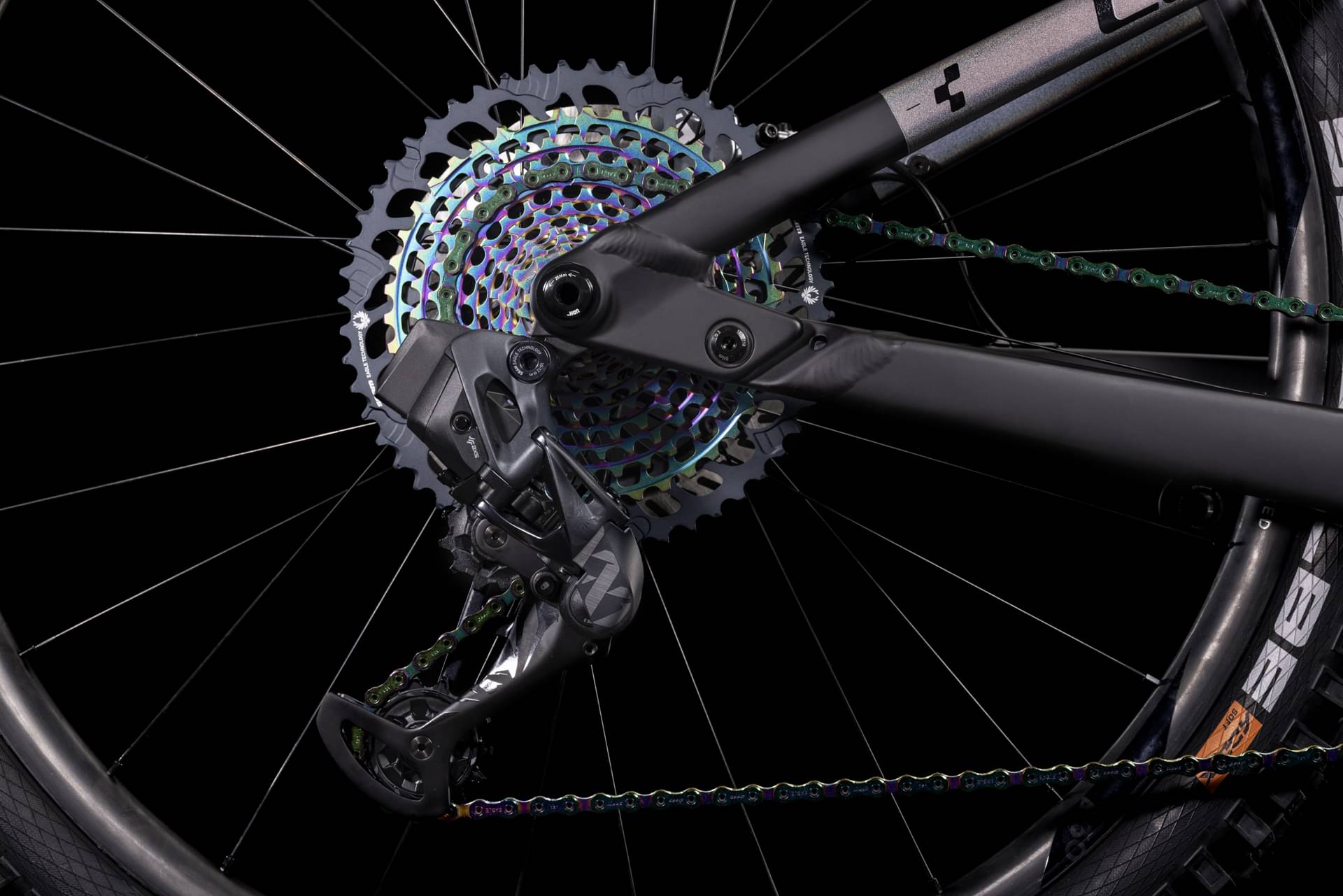

Rear Derailleur
SRAM XX1 Eagle AXS™, 12-Speed
Shift Levers
SRAM Eagle AXS™ Controller
Cassette
SRAM XG-1299 Eagle? Rainbow, 10-52T
Crank
e*thirteen Plus Crank, 165mm, 34T
Chain
SRAM PC-XX1 Eagle™ Rainbow
Chain Guide
Reverse Flip-Guide E-Chain Guide, Direct Mount, GEN4
Wheels
Rims
Newmen Advanced SL A.30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
Front: Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4, Rear: Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4
Brakes
Brakes
Magura MT7, Hydr. Disc Brake (203/203)
Cockpit
Stem
CUBE Performance Stem E-MTB, 31.8mm
Handlebar
Newmen Advanced 318.25, Carbon, 780mm
Grips
ACID Disrupt, Soft Compound
Headset
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat

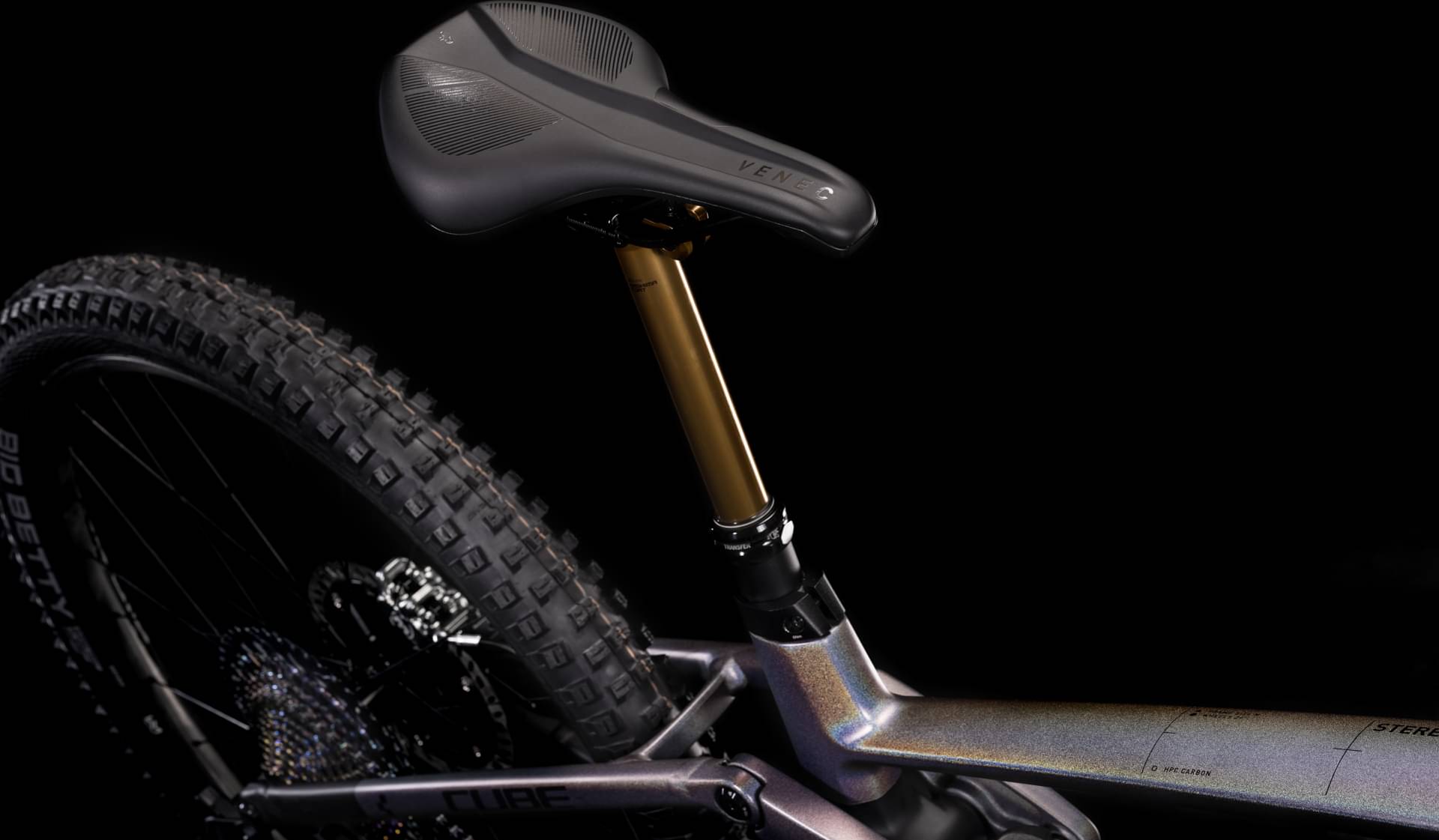

Saddle
Natural Fit Venec
Seatpost
Fox Transfer Factory 31.6mm, Kashima Coated (M,L: 150mm, XL: 175mm)
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 750
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.34 mm | 1.31 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm |
| Front Center | 766 mm | 797 mm | 828 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 111 mm | 111 mm | 111 mm |
| Stack | 628.5 mm | 639.5 mm | 655.9 mm |
| Reach | 449.8 mm | 475.8 mm | 499.8 mm |
| Top Tube Length | 603 mm | 633 mm | 663 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 420 mm | 460 mm | 490 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 108 mm | 120 mm | 138 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1223 mm | 1254 mm | 1285 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
STEREO HYBRID 140 HPC, SLT 750 29 is part of the Cube E Stereo Hybrid 140 model. CUBE launched 64 e-bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
CUBE STEREO HYBRID 140 HPC, PRO 625 2023 is the cheapest e-bike model and costs 4565$. CUBE STEREO HYBRID 140 HPC, SLT 750 2023 is the most expensive one and costs 9343$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro e-bikes
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2023 and its price was 8918$. In conclusion, this e-bike price is 86.37% higher than the price of the average Enduro e-bike.
Average weight for Enduro e-bikes
On a deeper look, we notice that the average weight of an Enduro e-bike is 23.42 kg (51.63 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
CUBE STEREO HYBRID 140 HPC, SLT 750 29 it’s weighing 23.9 kg (52.69 lbs). At this weight, is slightly heavier than average. To sum up, it’s 2.05% heavier than the average weight of Enduro e-bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
This e-bike has the Fox Factory Float 36 fork installed. The fork’s travel is 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The wheels on STEREO HYBRID 140 HPC, SLT 750 29 are the 29″ carbon type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The STEREO HYBRID 140 HPC, SLT 750 29 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
