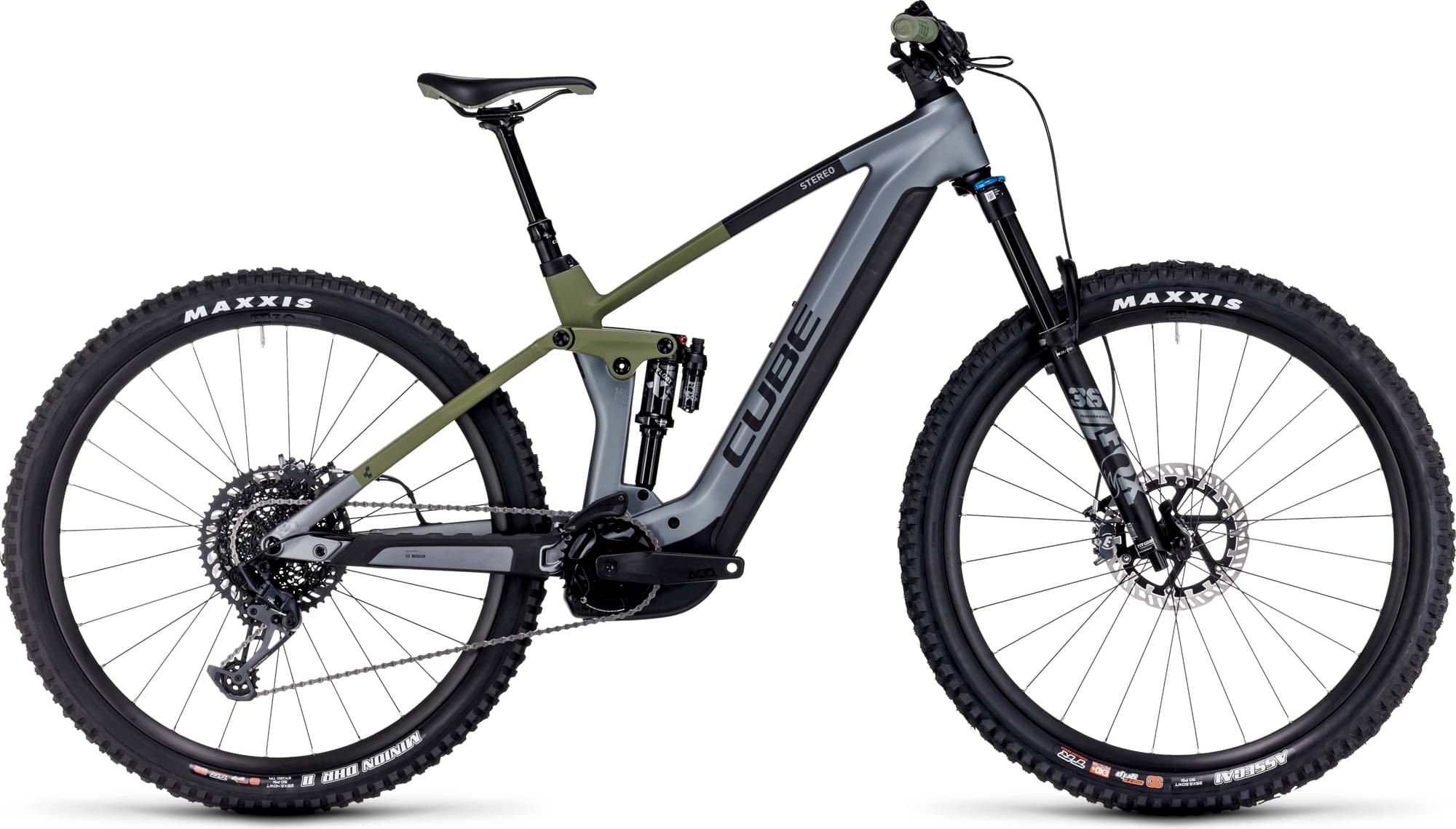

CUBE STEREO HYBRID 140 HPC, TM 750 2023
2023 E-bike
Estimate price |
6,651$
Weight | 24.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Fork Fox Performance Float 36
-
Groupset GX Eagle -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced Internal Cable Routing
Suspension Fork
Fox 36 Float Performance GRIP, 3-Position w/Micro Adjust, Tapered, 15x110mm, E-Bike Optimized, 150mm

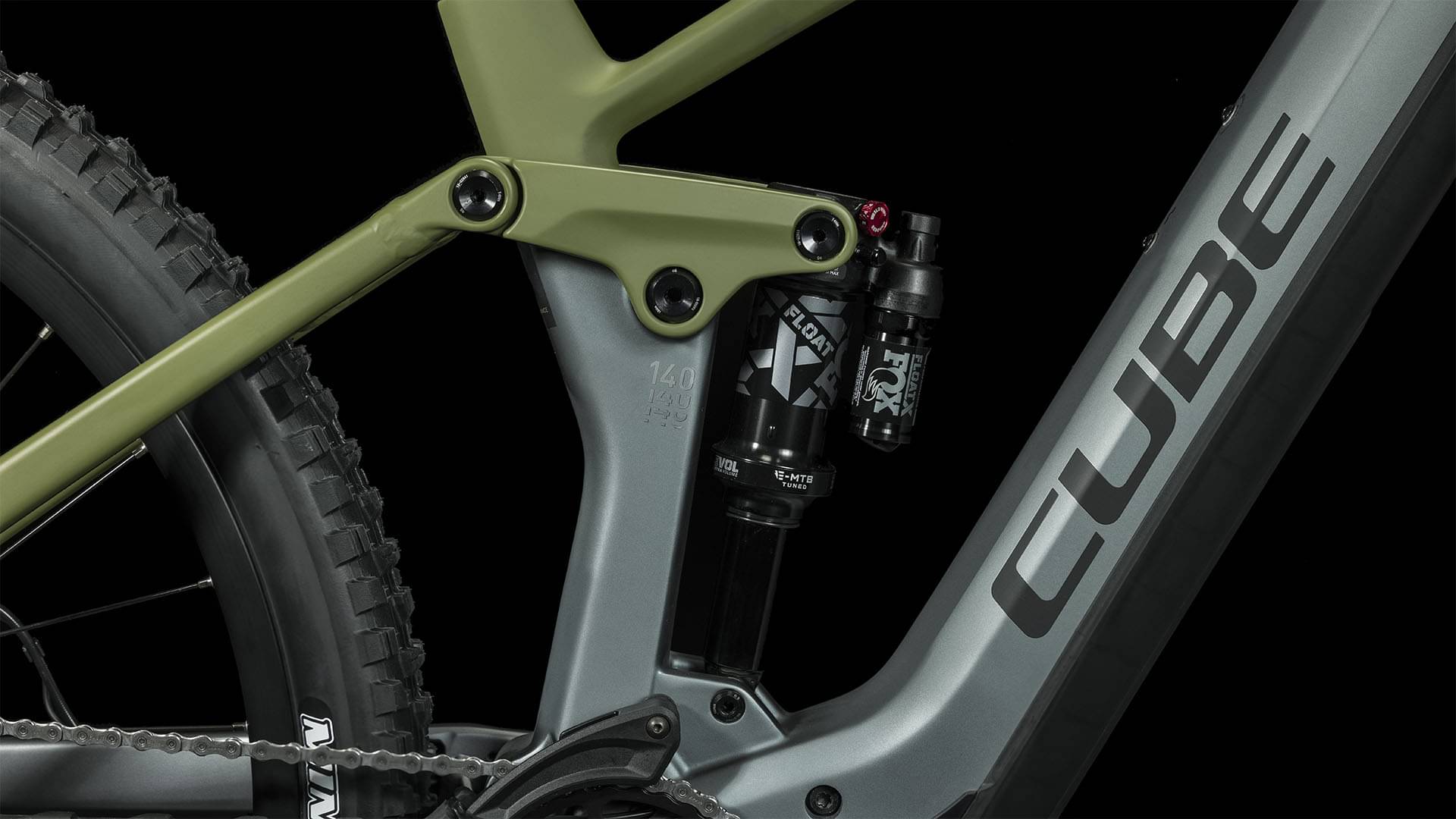

Rear Shock
Fox Float X Performance, 205x60mm (27.5: 185x55mm), Trunnion Mount, Adjustable LSR w/ 2-Pos. Lever
Drivetrain
Rear Derailleur
SRAM GX Eagle™, 12-Speed
Shift Levers
SRAM GX Eagle™ Trigger, Single Click
Cassette
SRAM XG-1275 Eagle™, 10-52T
Crank
ACID E-Crank, 165mm (27.5: 36T // 29: 34T)
Chain
SRAM NX Eagle™
Chain Guide
Reverse Flip-Guide E-Chain Guide, Direct Mount, GEN4
Wheels
Rims
Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
Front: Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT, Rear: Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT
Brakes
Brakes
Magura MT7, Hydr. Disc Brake (203/203)
Cockpit
Stem
CUBE Performance Stem E-MTB, 31.8mm
Handlebar
Newmen Evolution SL 318.25, 800mm
Grips
ACID Disrupt, Soft Compound
Headset
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Venec
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 750
Remote
Bosch LED Remote
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.4 mm | 1.34 mm | 1.31 mm |
| Bottom Bracket Height | 339 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 737 mm | 766 mm | 797 mm | 828 mm |
| Rake | 44 mm | 51 mm | 51 mm | 51 mm |
| Trail | 110 mm | 111 mm | 111 mm | 111 mm |
| Stack | 611 mm | 630 mm | 641 mm | 657 mm |
| Reach | 430 mm | 451 mm | 477 mm | 501 mm |
| Top Tube Length | 574 mm | 604 mm | 634 mm | 664 mm |
| Seat Tube Angle | 76 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 370 mm | 420 mm | 460 mm | 490 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 120 mm | 108 mm | 120 mm | 138 mm |
| Chainstay Length | 454 mm | 461 mm | 461 mm | 461 mm |
| Wheelbase | 1191 mm | 1225 mm | 1256 mm | 1287 mm |
| Bottom Bracket Drop | 16 mm | 36 mm | 36 mm | 36 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
STEREO HYBRID 140 HPC, TM 750 is a Cube E Stereo Hybrid 140 model. CUBE released 64 e-bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
CUBE STEREO HYBRID 140 HPC, PRO 625 2023 is the most economical model, with a starting price of 4565$. CUBE STEREO HYBRID 140 HPC, SLT 750 2023 on the other hand costs 9343$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro e-bikes average price
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When CUBE released this model in 2023, its price was 6157$. Comparing this to the average Enduro e-bike price, we see that the price is 28.67% more expensive.
Average weight for Enduro e-bikes
Enduro e-bikes weigh an average of 23.42 kg (51.63 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
CUBE STEREO HYBRID 140 HPC, TM 750 it’s weighing 24.6 kg (54.23 lbs). At this weight, is a bit heavier than average. In conclusion, the average Enduro e-bike weighs 5.04% less than STEREO HYBRID 140 HPC, TM 750.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The Fox Performance Float 36 is included from the factory. It has a travel distance of 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the STEREO HYBRID 140 HPC, TM 750 model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The STEREO HYBRID 140 HPC, TM 750 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
CUBE STEREO HYBRID 140 HPC, TM 750 includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
