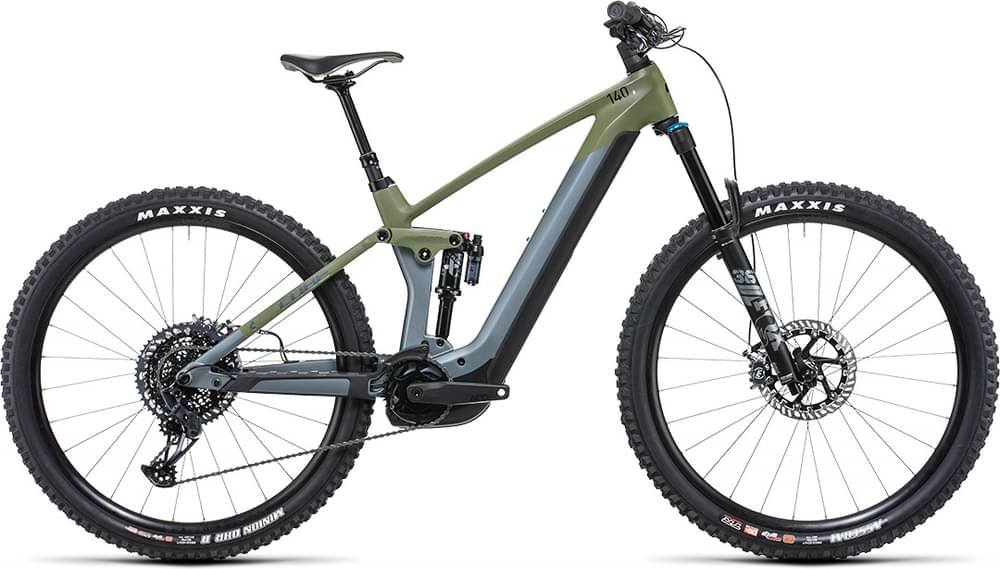

CUBE STEREO HYBRID 140 HPC TM 750 29 2022
2022 E-bike
Estimate price |
6,078$
Weight | 24.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Fork Fox Float 36
-
Groupset GX Eagle -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
Suspension Fork
Fox 36 Float GRIP, 3-Position w/Micro Adjust, Tapered, 15x110mm, E-Bike Optimized, 150mm
Rear Shock
Fox Float X, 205x60mm, Trunnion Mount, Adjustable LSR w/ 2-Pos. Lever
Drivetrain
Rear Derailleur
SRAM GX Eagle™, 12-Speed
Shift Levers
SRAM GX Eagle™ Trigger, Single Click
Cassette
SRAM XG-1275 Eagle™, 10-52T
Crank
ACID E-Crank, 165mm, 34T
Chain
SRAM NX Eagle™
Chain Guide
Reverse Flip-Guide E-Kettenführung, Direct Mount, GEN4
Wheels
Rims
Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT
Brakes
Brakes
Magura MT7, Hydr. Disc Brake (203/203)
Cockpit
Stem
CUBE Performance Stem E-MTB, 31.8mm
Handlebar
Newmen Evolution SL 318.25, 800mm
Grips
ACID Disrupt, Soft Compound
Headset
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Venec
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (M: 125mm, L,XL: 150mm)
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 750
Remote
Bosch Kiox 300
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.34 mm | 1.31 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm |
| Front Center | 766 mm | 797 mm | 828 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 111 mm | 111 mm | 111 mm |
| Stack | 628.5 mm | 639.5 mm | 655.9 mm |
| Reach | 449.8 mm | 475.8 mm | 499.8 mm |
| Top Tube Length | 603 mm | 633 mm | 663 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 420 mm | 460 mm | 490 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 108 mm | 120 mm | 138 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1223 mm | 1254 mm | 1285 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm |
| Standover Height | 767 mm | 765 mm | 787 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
STEREO HYBRID 140 HPC TM 750 29 is a Cube E Stereo Hybrid 140 model. 64 e-bikes variations carry this model name so far. Take a sneak peek at all Cube E Stereo Hybrid 140 e-bikes models from 2022, by clicking here.
Model range prices
CUBE STEREO HYBRID 140 HPC PRO 625 2022 is the cheapest e-bike model and costs 4140$. CUBE STEREO HYBRID 140 HPC, SLT 750 2022 is the most expensive one and costs 9343$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro e-bikes
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 5626$. Comparing this to the average Enduro e-bike price, we see that the price is 17.58% more expensive.
Enduro e-bikes average weight
Enduro e-bikes have an average weight of 23.42 kg (51.63 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
STEREO HYBRID 140 HPC TM 750 29 weighs 24.6 kg (54.23 lbs) and is a bit heavier than the average. In short, the average Enduro e-bike weight is 5.04% lower than this one.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
STEREO HYBRID 140 HPC TM 750 29 components
Fork
This e-bike has the Fox Float 36 fork installed. The fork’s travel is 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When it comes to wheels, the STEREO HYBRID 140 HPC TM 750 29 e-bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the STEREO HYBRID 140 HPC TM 750 29. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
