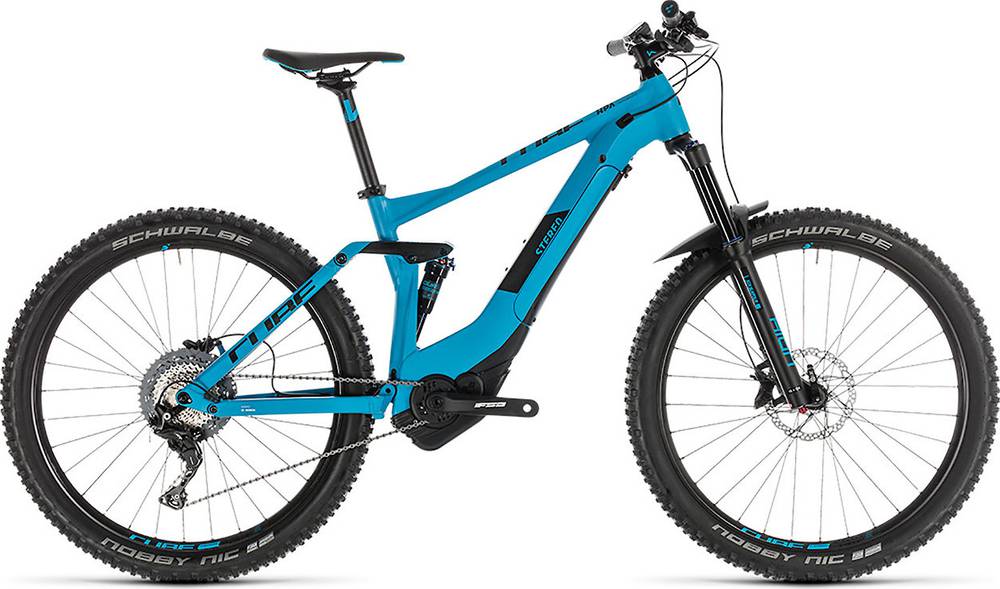

CUBE Stereo Hybrid 140 Pro 500 2019
2019 E-bike
Weight | 23.7 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork SunTour AION
-
Groupset XT, SLX -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube 500 with Bosch 2A charger -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
SR Suntour Aion RC, 15mm x 110mm
Rear Shock
SR Suntour DUAir LOR8, 190mm x 50mm, 30x8mm upper and lower mounts
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DGS, Shadow Plus, 11-speed
Front Derailleur
N/A
Shift Levers
Shimano SLX SL-M7000
Cassette
Shimano SLX CS-M7000, 11-46 tooth, 11-speed
Crank
FSA CK-745, 170mm
Chain
KMC X11e, EcoProTeQ
Chain Guide
N/A
Pedals
Cube PP MTB
Wheels
Front Hub
Front: Shimano HB-MT400-B, Boost, Center Lock, 15QR x 110mm, Rear: Shimano FH-MT400-B, Boost, Center Lock, 12mm x 148mm
Rear Hub
Front: Shimano HB-MT400-B, Boost, Center Lock, 15QR x 110mm, Rear: Shimano FH-MT400-B, Boost, Center Lock, 12mm x 148mm
Rims
Cube EX30, 32 hole, tubeless ready
Tires
Schwalbe Nobby Nic, Addix Performance, 27.5 x 2.60"
Brakes
Brakes
Shimano BR-MT520/BR-MT500 with 180mm rotors front and rear
Brake Levers
Shimano BR-MT520/BR-MT500
Cockpit
Stem
Newmen Evolution 318.4, 31.8mm diameter
Handlebar
Newmen Evolution 318.20, 760mm width
Grips
Cube Race, 31mm, single clamp
Headset
FSA 1.5B ZS, zero stack
Seat
Saddle
Cube Natural Fit Active
Seatpost
Newmen Evolution
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500 with Bosch 2A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.38 mm | 1.39 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 690 mm | 710 mm | 732 mm | 752 mm |
| Rake | 43 mm | 43 mm | 44 mm | 42 mm |
| Trail | 102 mm | 102 mm | 101 mm | 103 mm |
| Stack | 604 mm | 604 mm | 614 mm | 635 mm |
| Reach | 407 mm | 427 mm | 444 mm | 457 mm |
| Top Tube Length | 577 mm | 597 mm | 617 mm | 635 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 67.3 ° | 67.3 ° | 67.3 ° | 67.3 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 150 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1170 mm | 1190 mm | 1212 mm | 1232 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Wheels | 27" | 27" | 27" | 27" |
About this model
Stereo Hybrid 140 Pro 500 is part of the Cube E Stereo Hybrid 140 model. 64 e-bikes variations carry this model name so far. You can easily view all of the Cube E Stereo Hybrid 140 e-bikes models from 2019, here.
Model range prices
CUBE STEREO HYBRID 140 Pro 500 27.5 2019 is the cheapest e-bike model and costs 3715$. CUBE STEREO HYBRID 140 TM 500 KIOX 27.5 2019 is the most expensive one and costs 5202$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Trail e-bikes average weight
On a deeper look, we notice that the average weight of a Trail e-bike is 23.7 kg (52.25 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 23.7 kg (52.25 lbs), the Stereo Hybrid 140 Pro 500 model is equally heavier with average. In conclusion, the average Trail e-bike weighs 0% less than Stereo Hybrid 140 Pro 500.
Overview of components
Fork
The SunTour AION is included from the factory. It has a travel distance of 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this e-bike is SR Suntour DUAir LOR8, with a travel distance of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The Stereo Hybrid 140 Pro 500 2019 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the e-bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
