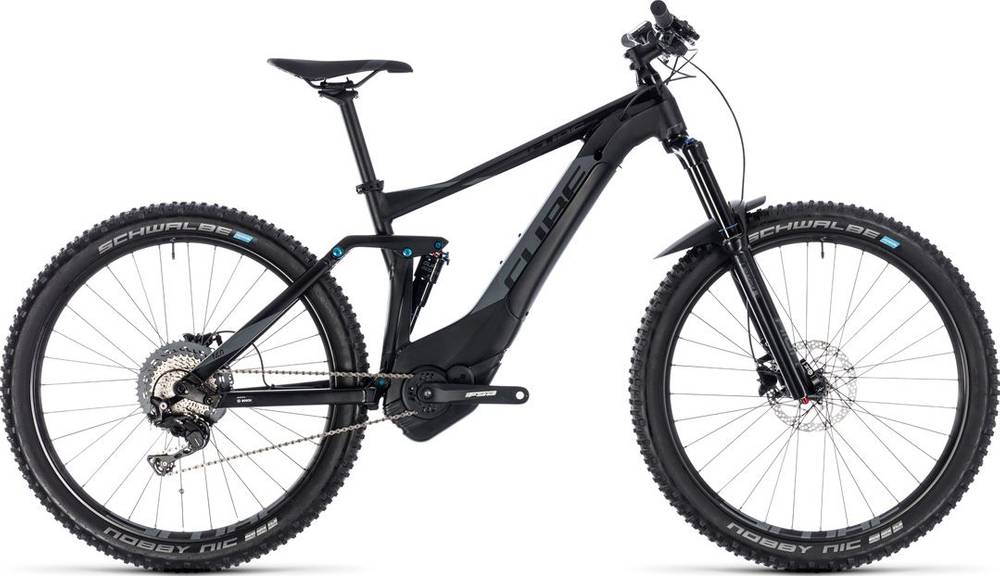

CUBE STEREO HYBRID 140 Pro 500 27.5 2018
2018 E-bike
Weight | 23.1 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork SunTour AION
-
Groupset XT, SLX -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, Tripple Butted, ETC 4-Link, ATG, Boost148, Tuned Drive Position, AXH, FIB
Suspension Fork
SR Suntour Aion RC-PCS, Tapered, 15x110mm, 140mm
Rear Shock
SR Suntour DUAir LOR8, 190x50mm
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed
Front Derailleur
N/A
Shift Levers
Shimano SLX SL-M7000
Cassette
Shimano SLX CS-M7000, 11-46T
Crank
FSA CK-745, 170mm, 15T
Chain
KMC X11e, EcoProTeQ
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Shimano Deore HB-M6010-B, 15QR, Boost, Centerlock
Rear Hub
Shimano Deore FH-M6010-B, 12mm, Boost, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Spokes
32 count front and rear
Tires
Schwalbe Nobby Nic Kevlar 2.60, Addix Speedgrip, Apex, Tubeless Easy
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (180/180)
Brake Levers
Shimano BR-M315
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar Pro, 740mm
Grips
CUBE Race Grip, 1-Clamp
Headset
FSA 1.5B ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Selle Royal MTB
Seatpost
CUBE Performance Post, 31.6mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.38 mm | 1.39 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 690 mm | 710 mm | 732 mm | 752 mm |
| Rake | 43 mm | 43 mm | 44 mm | 42 mm |
| Trail | 102 mm | 102 mm | 101 mm | 103 mm |
| Stack | 604 mm | 604 mm | 614 mm | 635 mm |
| Reach | 407 mm | 427 mm | 444 mm | 457 mm |
| Top Tube Length | 577 mm | 597 mm | 617 mm | 635 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 67.3 ° | 67.3 ° | 67.3 ° | 67.3 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 150 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1170 mm | 1190 mm | 1212 mm | 1232 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Rear Travel | 140 mm | 140 mm | 140 mm | 140 mm |
| Wheels | 27" | 27" | 27" | 27" |
Model Overview
STEREO HYBRID 140 Pro 500 27.5 belongs to the Cube E Stereo Hybrid 140 model. There are 64 e-bikes that carry this model name. Check out the entire range from 2018 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Trail e-bikes average weight
If we make a quick analysis of the average weight of a Trail e-bike, we get 23.7 kg (52.25 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
slightly lighter than average, STEREO HYBRID 140 Pro 500 27.5 has a weight of 23.1 kg (50.93 lbs). In other words, this model is 2.6% lighter than the average Trail e-bike.
Overview of components
Fork
The fork installed on this bike is the SunTour AION model. The travel on this model is 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The STEREO HYBRID 140 Pro 500 27.5 has a rear shock with a travel of 140mm. The model SR Suntour DUAir LOR8 is the one installed in this e-bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The STEREO HYBRID 140 Pro 500 27.5 2018 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The STEREO HYBRID 140 Pro 500 27.5 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
