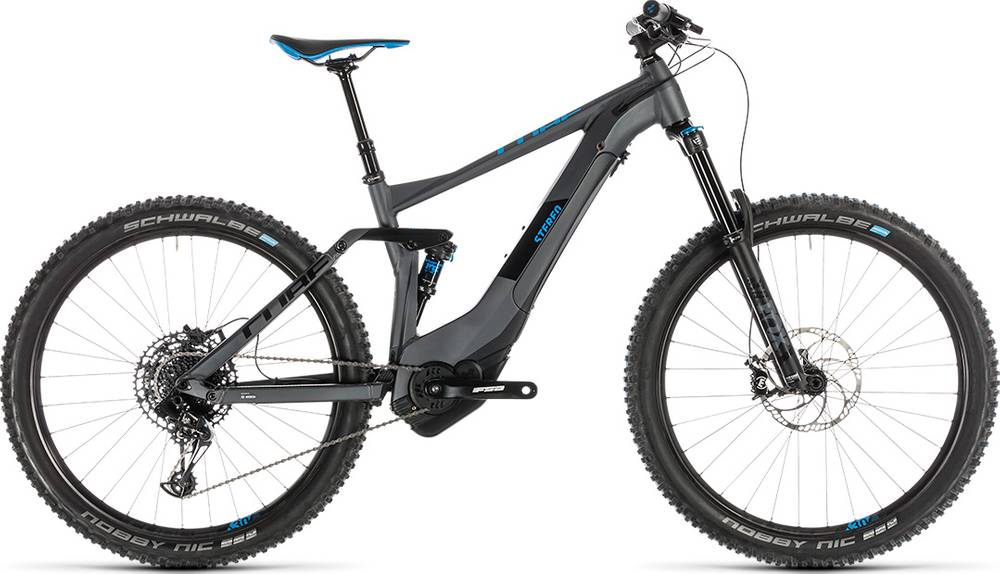

CUBE STEREO HYBRID 140 Race 500 27.5 2019
2019 E-bike
Estimate price |
4,357$
Weight | 24.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Rhythm Float 34
-
Groupset NX Eagle, FSA -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, Triple Butted, Efficient Trail Control 4-Link, Agile Trail Geometry, Boost 148, Tuned Drive Position, AXH, Full Integrated Battery
Suspension Fork
Fox 34 Rhythm, 2-Position Sweep-Adjust GRIP Damper, 15x110mm, E-Bike Optimized, 140mm
Rear Shock
Fox Float DPS EVOL, 190x50mm, Open/Medium/Firm Mode
Drivetrain
Rear Derailleur
SRAM NX Eagle™, 12-Speed
Shift Levers
SRAM NX Eagle™ Trigger
Cassette
SRAM PG-1230 Eagle™, 11-50T
Crank
FSA CK-745, 16T, 170mm
Chain
SRAM NX Eagle™
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-MT400-B, 15QR, Boost, Centerlock
Rear Hub
Shimano FH-MT400-B, 12mm, Boost, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Nobby Nic 2.60, Addix Speedgrip, APEX, Tubeless Easy
Brakes
Brakes
Magura MT Trail Custom, Hydr. Disc Brake (203/180)
Cockpit
Stem
Newmen Evolution 318.4, 31.8mm
Handlebar
Newmen Evolution 318.20, 760mm
Grips
CUBE Race Grip 31mm, 1-Clamp
Headset
FSA 1.5E ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Natrual Fit Active Race
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (16": 370x100mm, 18": 420x125mm, 20", 22": 480x150mm)
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500
Remote
Bosch Purion
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.38 mm | 1.39 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 690 mm | 710 mm | 732 mm | 752 mm |
| Rake | 43 mm | 43 mm | 44 mm | 42 mm |
| Trail | 102 mm | 102 mm | 101 mm | 103 mm |
| Stack | 604 mm | 604 mm | 614 mm | 635 mm |
| Reach | 407 mm | 427 mm | 444 mm | 457 mm |
| Top Tube Length | 577 mm | 597 mm | 617 mm | 635 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 67.3 ° | 67.3 ° | 67.3 ° | 67.3 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 150 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1170 mm | 1190 mm | 1212 mm | 1232 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Rear Travel | 140 mm | 140 mm | 140 mm | 140 mm |
| Wheels | 27" | 27" | 27" | 27" |
Model Overview
STEREO HYBRID 140 Race 500 27.5 completes the Cube E Stereo Hybrid 140 model. CUBE released 64 e-bikes variations of this model so far. You can easily view all of the Cube E Stereo Hybrid 140 e-bikes models from 2019, here.
Model range prices
CUBE STEREO HYBRID 140 Pro 500 27.5 2019 is the most affordable e-bike of this model and has a price of 3715$. On the other hand, CUBE STEREO HYBRID 140 TM 500 KIOX 27.5 2019, is the most expensive and costs 5202$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail e-bikes
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2019 for 4034$. Comparing the average cost of a Trail e-bike to this one, you will see that STEREO HYBRID 140 Race 500 27.5 price is 19.88% more expensive.
Trail e-bikes average weight
On a deeper look, we notice that the average weight of a Trail e-bike is 23.7 kg (52.25 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
CUBE STEREO HYBRID 140 Race 500 27.5 it’s weighing 24.3 kg (53.57 lbs). At this weight, is slightly heavier than average. In other words, this model is 2.53% heavier than the average Trail e-bike.
STEREO HYBRID 140 Race 500 27.5 components
Fork
The fork installed on this bike is the Fox Rhythm Float 34 model. The travel on this model is 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the Fox Float DPS EVOL rear shock model, which has a travel of 140mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
As for the wheels, CUBE STEREO HYBRID 140 Race 500 27.5 2019, has a 27.5″ aluminum model. These wheels will provide you with more control over the e-bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Dropper post
CUBE STEREO HYBRID 140 Race 500 27.5 comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
