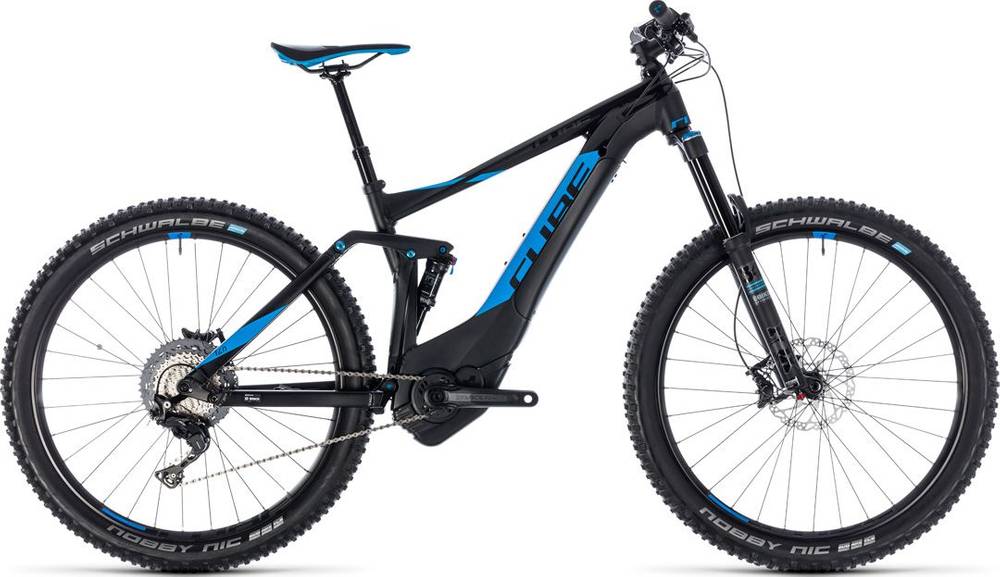

CUBE STEREO HYBRID 140 SL 500 27.5 2018
2018 E-bike
Weight | 22.7 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Float 34
-
Groupset XT, Race Face -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, Tripple Butted, ETC 4-Link, ATG, Boost148, Tuned Drive Position, AXH, FIB
Suspension Fork
Fox 34 Float, 3-Position Micro-Adjust GRIP Damper, Tapered, Ebike Optimized, 15x110mm, 140mm
Rear Shock
Fox Float DPS EVOL, 190x50mm, Open/Medium/Firm Mode
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed
Front Derailleur
N/A
Shift Levers
Shimano XT SL-M8000-I, Direct Attach
Cassette
Shimano SLX CS-M7000, 11-46T
Crank
Race Face Aeffect, 170mm, 15T
Chain
KMC X11e, EcoProTeQ
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Shimano XT HB-M8000, 15QR, Boost, Centerlock
Rear Hub
Shimano XT FH-M8010-B, 12mm, Boost, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Spokes
32 count front and rear
Tires
Schwalbe Nobby Nic Kevlar 2.60, Addix Speedgrip, Apex, Tubeless Easy
Brakes
Brakes
Shimano XT BR-M8000, Hydr. Disc Brake (180/180)
Brake Levers
Shimano XT
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar Pro, 740mm
Grips
CUBE Race Grip 31, 1-Clamp
Headset
FSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
CUBE Race EXC 145
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (16", 18": 400x120mm; 20", 22": 458x150mm)
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.38 mm | 1.39 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 690 mm | 710 mm | 732 mm | 752 mm |
| Rake | 43 mm | 43 mm | 44 mm | 42 mm |
| Trail | 102 mm | 102 mm | 101 mm | 103 mm |
| Stack | 604 mm | 604 mm | 614 mm | 635 mm |
| Reach | 407 mm | 427 mm | 444 mm | 457 mm |
| Top Tube Length | 577 mm | 597 mm | 617 mm | 635 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 67.3 ° | 67.3 ° | 67.3 ° | 67.3 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 150 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1170 mm | 1190 mm | 1212 mm | 1232 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Rear Travel | 140 mm | 140 mm | 140 mm | 140 mm |
| Wheels | 27" | 27" | 27" | 27" |
Model Overview
STEREO HYBRID 140 SL 500 27.5 is a Cube E Stereo Hybrid 140 model. CUBE launched 64 e-bikes of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail e-bikes average price
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Trail e-bikes average weight
Trail e-bikes have an average weight of 23.7 kg (52.25 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 22.7 kg (50.04 lbs), the STEREO HYBRID 140 SL 500 27.5 model is slightly lighter than average. In short, the average Trail e-bike weight is 4.41% higher than this one.
Overview of components
Fork
This e-bike has the Fox Float 34 fork installed. The fork’s travel is 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
CUBE STEREO HYBRID 140 SL 500 27.5 e-bike has the Fox Float DPS EVOL model installed, and has a travel of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When leaving the production line, the STEREO HYBRID 140 SL 500 27.5 model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
