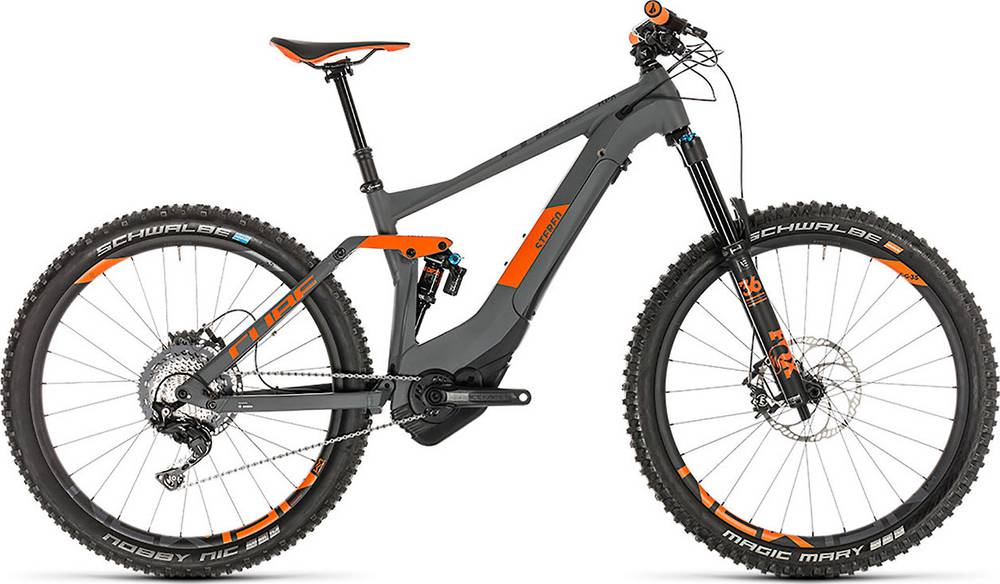

CUBE Stereo Hybrid 140 TM 500 2019
2019 E-bike
Weight | 24.6 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Float 36
-
Groupset XT, Race Face -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube 500 with Bosch 4A charger -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX 36 Float, GRIP, 3-position with micro adjust, e-bike optimized, 15mm x 110mm
Rear Shock
FOX Float DPX2 EVOL, open(adjustable)/medium/firm mode, 190mm x 50mm, 30x8mm upper and lower mounts
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DGS, Shadow Plus, 11-speed
Front Derailleur
N/A
Shift Levers
Shimano XT SL-M8000-I, direct attach
Cassette
Shimano SLX CS-M7000, 11-46 tooth, 11-speed
Crank
Race Face Aeffect, 165mm
Chain
KMC X11e, EcoProTeQ
Chain Guide
N/A
Pedals
Cube PP MTB
Wheels
Front Hub
Newmen Evolution SL E.35 wheelset, 15mm x 110mm front, 12mm x 148mm rear
Rear Hub
Newmen Evolution SL E.35 wheelset, 15mm x 110mm front, 12mm x 148mm rear
Rims
Newmen Evolution SL E.35 wheelset, 28 hole, tubeless ready
Spokes
Newmen Evolution SL E.35 wheelset
Tires
Front: Schwalbe Magic Mary, Addix Soft, Tubeless Easy, Super Gravity, 27.5 x 2.60", Rear: Schwalbe Nobby Nic, Addix Speedgrip, Tubeless Easy, Super Gravity, 27.5 x 2.60"
Brakes
Brakes
Magura MT7 with 203mm rotors (front and rear)
Brake Levers
Magura MT7
Cockpit
Stem
Race Face Turbine, 35mm diameter
Handlebar
Race Face Turbine 35, 780mm width
Grips
SDG Slater
Headset
FSA 1.5E ZS, zero stack
Seat
Saddle
Cube Natural Fit Active Race
Seatpost
FOX Transfer Performance Elite, 395x100mm for 16" frame, 409x125mm for 18" frame, 456x150mm for 20" and 22" frames
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500 with Bosch 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.38 mm | 1.39 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 690 mm | 710 mm | 732 mm | 752 mm |
| Rake | 43 mm | 43 mm | 44 mm | 42 mm |
| Trail | 102 mm | 102 mm | 101 mm | 103 mm |
| Stack | 604 mm | 604 mm | 614 mm | 635 mm |
| Reach | 407 mm | 427 mm | 444 mm | 457 mm |
| Top Tube Length | 577 mm | 597 mm | 617 mm | 635 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 67.3 ° | 67.3 ° | 67.3 ° | 67.3 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 150 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1170 mm | 1190 mm | 1212 mm | 1232 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Wheels | 27" | 27" | 27" | 27" |
About this model
Stereo Hybrid 140 TM 500 is a Cube E Stereo Hybrid 140 model. Cube launched 64 e-bikes of this model so far. Take a sneak peek at all Cube E Stereo Hybrid 140 e-bikes models from 2019, by clicking here.
Model range prices
CUBE STEREO HYBRID 140 Pro 500 27.5 2019 is the most economical model, with a starting price of 3715$. CUBE STEREO HYBRID 140 TM 500 KIOX 27.5 2019 on the other hand costs 5202$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail e-bikes
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Average weight for Trail e-bikes
If we make a quick analysis of the average weight of a Trail e-bike, we get 23.7 kg (52.25 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 24.6 kg (54.23 lbs), the Stereo Hybrid 140 TM 500 model is slightly heavier than average. In conclusion, the average Trail e-bike weighs 3.8% less than Stereo Hybrid 140 TM 500.
Stereo Hybrid 140 TM 500 components
Fork
The Stereo Hybrid 140 TM 500 comes factory-installed with the Fox Float 36 fork. This has a travel range of 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the FOX Float DPX2 EVOL rear shock model, which has a travel of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When leaving the production line, the Stereo Hybrid 140 TM 500 model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Stereo Hybrid 140 TM 500 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
