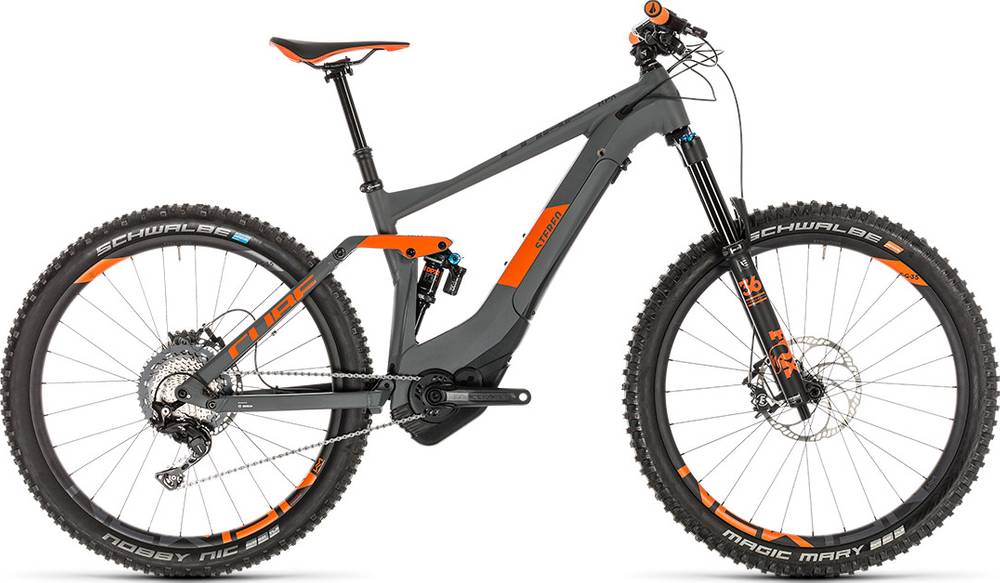

CUBE STEREO HYBRID 140 TM 500 27.5 2019
2019 E-bike
Estimate price |
5,504$
Weight | 24.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Float 36
-
Groupset XT, Race Face -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, Triple Butted, Efficient Trail Control 4-Link, Agile Trail Geometry, Boost 148, Tuned Drive Position, AXH, Full Integrated Battery
Suspension Fork
Fox 36 Float GRIP, 3-Position w/Micro Adjust, Tapered, 15x110mm, E-Bike Optimized, 150mm
Rear Shock
Fox Float DPX2 EVOL, 190x50mm, Open(Adjustable)/Medium/Firm Mode
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed
Shift Levers
Shimano XT SL-M8000-I, Direct Attach
Cassette
Shimano SLX CS-M7000, 11-46T
Crank
Race Face Aeffect, 15T, 165mm
Chain
KMC X11e, EcoProTeQ
Pedals
CUBE PP MTB
Wheels
Rims
Newmen Evolution SL E.35, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
Schwalbe Magic Mary 2.60, Addix Soft, Tubeless Easy, Super Gravity
Brakes
Brakes
Magura MT7, Hydr. Disc Brake (203/203)
Cockpit
Stem
Race Face Turbine, 35mm
Handlebar
Race Face Turbine 35, 780mm
Grips
SDG Slater
Headset
FSA 1.5E ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Natural Fit Active Race
Seatpost
Fox Transfer Performance Elite 31.6mm (16": 359x100mm; 18": 409x125mm; 20", 22": 456x150mm)
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500
Remote
Bosch Purion
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.38 mm | 1.39 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 690 mm | 710 mm | 732 mm | 752 mm |
| Rake | 43 mm | 43 mm | 44 mm | 42 mm |
| Trail | 102 mm | 102 mm | 101 mm | 103 mm |
| Stack | 604 mm | 604 mm | 614 mm | 635 mm |
| Reach | 407 mm | 427 mm | 444 mm | 457 mm |
| Top Tube Length | 577 mm | 597 mm | 617 mm | 635 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 67.3 ° | 67.3 ° | 67.3 ° | 67.3 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 150 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1170 mm | 1190 mm | 1212 mm | 1232 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Rear Travel | 140 mm | 140 mm | 140 mm | 140 mm |
| Wheels | 27" | 27" | 27" | 27" |
About this model
STEREO HYBRID 140 TM 500 27.5 is a Cube E Stereo Hybrid 140 model. There are 64 e-bikes that carry this model name. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
The most economical model, the CUBE STEREO HYBRID 140 Pro 500 27.5 2019 has a starting price of 3715$. CUBE STEREO HYBRID 140 TM 500 KIOX 27.5 2019 on the other hand is the most expensive at 5202$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail e-bikes average price
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When CUBE released this model in 2019, its price was 5096$. Comparing the average cost of a Trail e-bike to this one, you will see that STEREO HYBRID 140 TM 500 27.5 price is 51.44% more expensive.
Trail e-bikes average weight
Trail e-bikes have an average weight of 23.7 kg (52.25 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
CUBE STEREO HYBRID 140 TM 500 27.5 it’s weighing 24.6 kg (54.23 lbs). At this weight, is slightly heavier than average. To sum up, it’s 3.8% heavier than the average weight of Trail e-bikes.
STEREO HYBRID 140 TM 500 27.5 components
Fork
CUBE STEREO HYBRID 140 TM 500 27.5 2019 e-bike is equipped with the Fox Float 36 fork, and has 150mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The STEREO HYBRID 140 TM 500 27.5 has a rear shock with a travel of 140mm. The model Fox Float DPX2 EVOL is the one installed in this e-bike. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The wheels on STEREO HYBRID 140 TM 500 27.5 are the 27.5″ aluminum type. These wheels will provide you with more control over the e-bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The STEREO HYBRID 140 TM 500 27.5 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Dropper post
CUBE STEREO HYBRID 140 TM 500 27.5 comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
