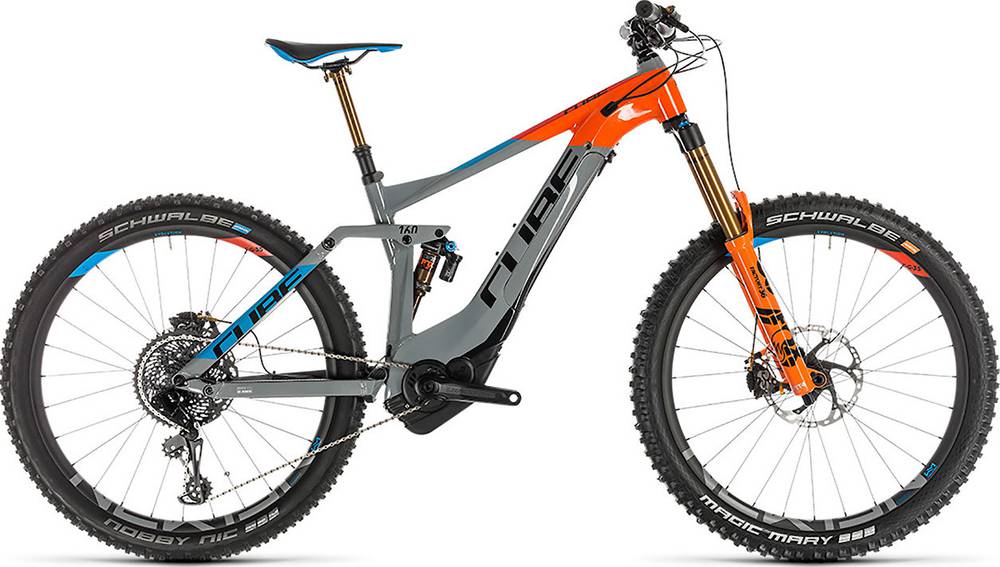

CUBE Stereo Hybrid 160 Action Team 500 2019
2019 E-bike
Weight | 24.6 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Factory Float 36
-
Groupset EX1, Race Face -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube 500 with Bosch 4A charger -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX 36 Float Factory, Kashima, FIT4, 3-position with low speed compression adjust, 15mm x 110mm
Rear Shock
FOX Float DPX2 Factory EVOL, Kashima, 200mm x 57mm, 30x8mm upper and lower mounts
Drivetrain
Rear Derailleur
SRAM EX1, 8-speed
Front Derailleur
N/A
Shift Levers
SRAM EX1 trigger, 8-speed
Cassette
SRAM XG-899, 11-48 tooth, 8-speed
Crank
Race Face Aeffect, 165mm
Chain
SRAM EX1
Chain Guide
N/A
Pedals
Cube PP MTB
Wheels
Front Hub
Newmen Evolution SL E.35 wheelset, 15mm x 110mm front, 12mm x 148mm rear
Rear Hub
Newmen Evolution SL E.35 wheelset, 15mm x 110mm front, 12mm x 148mm rear
Rims
Newmen Evolution SL E.35 wheelset, 28 hole, tubeless ready
Spokes
Newmen Evolution SL E.35 wheelset
Tires
Front: Schwalbe Magic Mary, Addix Soft, Tubeless Easy, Super Gravity, 27.5 x 2.60", Rear: Schwalbe Nobby Nic, Addix Speedgrip, Tubeless Easy, Super Gravity, 27.5 x 2.60"
Brakes
Brakes
Shimano Saint BR-M820 with 180mm rotors (front and rear)
Brake Levers
Shimano Saint BR-M820
Cockpit
Stem
Race Face Turbine, 35mm diameter
Handlebar
Race Face SixC 35, 820mm width
Grips
Cube Race, 31mm, single clamp
Headset
FSA 1.5B ZS, zero stack
Seat
Saddle
Cube Natural Fit Active Race
Seatpost
FOX Transfer Factory, Kashima, 359x100mm for 16" frame, 409x125mm for 18" frame, 456x150mm for 20" and 22" frames
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500 with Bosch 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.43 mm | 1.41 mm | 1.43 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 728 mm | 749 mm | 763 mm | 776 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 112 mm | 112 mm | 112 mm | 112 mm |
| Stack | 619 mm | 623 mm | 632 mm | 647 mm |
| Reach | 417 mm | 437 mm | 447 mm | 453 mm |
| Top Tube Length | 588 mm | 609 mm | 626 mm | 637 mm |
| Seat Tube Angle | 74.3 ° | 74.3 ° | 74.3 ° | 74.3 ° |
| Seat Tube Length | 390 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 65.8 ° | 65.8 ° | 65.8 ° | 65.8 ° |
| Head Tube Length | 115 mm | 119 mm | 129 mm | 146 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1208 mm | 1229 mm | 1243 mm | 1256 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm |
| Wheels | 27" | 27" | 27" | 27" |
About this model
Stereo Hybrid 160 Action Team 500 completes the Cube E Stereo Hybrid 160 model. Cube launched 48 e-bikes of this model so far. Take a sneak peek at all Cube E Stereo Hybrid 160 e-bikes models from 2019, by clicking here.
Model range prices
CUBE STEREO HYBRID 160 Race 500 27.5 2019 is the cheapest e-bike model and costs 4034$. CUBE STEREO HYBRID 160 Action Team 500 KIOX 27.5 2019 is the most expensive one and costs 6263$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro e-bikes average price
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Average weight for Enduro e-bikes
Enduro e-bikes weigh an average of 23.42 kg (51.63 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
a bit heavier than average, Stereo Hybrid 160 Action Team 500 has a weight of 24.6 kg (54.23 lbs). In conclusion, the average Enduro e-bike weighs 5.04% less than Stereo Hybrid 160 Action Team 500.
Overview of components
Fork
This e-bike has the Fox Factory Float 36 fork installed. The fork’s travel is 170mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Cube Stereo Hybrid 160 Action Team 500 e-bike has the FOX Float DPX2 Factory EVOL model installed, and has a travel of 160mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When it comes to wheels, the Stereo Hybrid 160 Action Team 500 e-bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Cube Stereo Hybrid 160 Action Team 500 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Dropper post
Cube Stereo Hybrid 160 Action Team 500 includes a dropper post. Therefore, climbing or descending will be a breeze.
