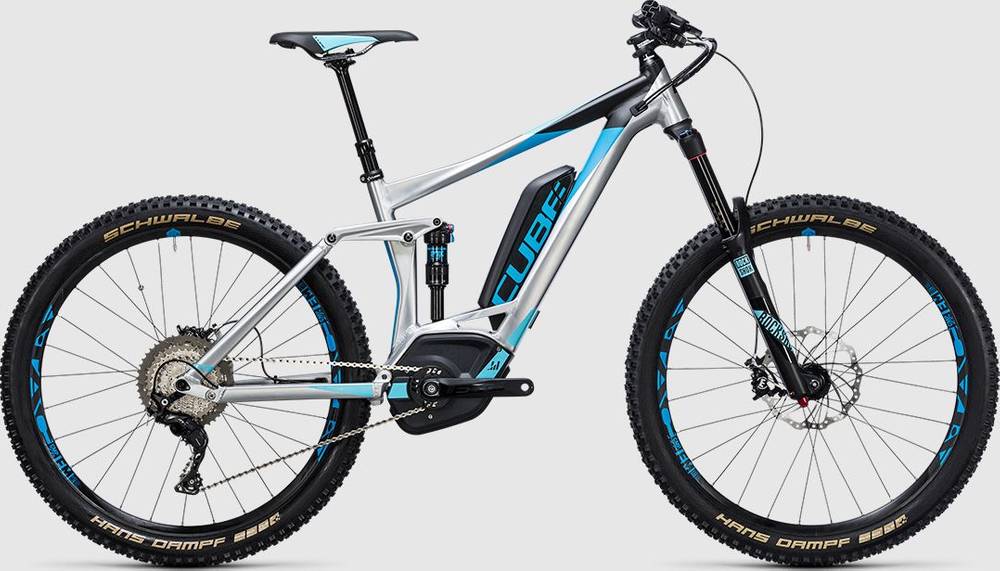

CUBE STEREO HYBRID 160 HPA Race 500 27.5 2017
2017 E-bike
Weight | 23 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox Yari RC
-
Groupset XT, FSA -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HPA Ultralight, Advanced Hydroform, Triple Butted, ETC 4-Link, ATG, Boost148mm, Tuned Drive Position, AXH
Suspension Fork
Rock Shox Yari RC, Tapered, QR15, 160mm
Rear Shock
Fox Float DPS, 200x57mm, Open/Medium/Firm Mode, EVOL Air Sleeve
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed, Direct Mount
Shift Levers
Shimano XT SL-M8000
Cassette
Shimano XT CS-M8000, 11-46T
Crank
FSA CK-745, 16T
Chain
KMC X11e, EcoProTeQ
Wheels
Rims
Answer Atac EM, QR15/X12 Boost, Tubeless-Ready 584x25C Rims
Tires
Schwalbe Hans Dampf Kevlar 2.35, TrailStar, Tubeless Easy, Super Gravity
Brakes
Brakes
Magura MT5, Hydr. Disc Brake (203/180)
Cockpit
Stem
Race Face Ride 35
Handlebar
Race Face Ride 35, 760mm
Grips
CUBE Fritzz Grip, 2-Clamp
Headset
FSA Orbit Z-t, Top Zero-Stack 1 1/8" (OD44mm), Bottom Integrated 1 1/2"
Seat
Saddle
Selle Italia SC1
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm, 458x150mm (400x120mm for smallest frame size)
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.45 mm | 1.42 mm | 1.45 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 709 mm | 730 mm | 749 mm | 763 mm |
| Rake | 45 mm | 44 mm | 43 mm | 44 mm |
| Trail | 107 mm | 108 mm | 109 mm | 108 mm |
| Stack | 596 mm | 606 mm | 615 mm | 633 mm |
| Reach | 400 mm | 417 mm | 433 mm | 438 mm |
| Top Tube Length | 567 mm | 587 mm | 605 mm | 616 mm |
| Seat Tube Angle | 74.3 ° | 74.3 ° | 74.3 ° | 74.3 ° |
| Seat Tube Length | 380 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 66.3 ° | 66.3 ° | 66.3 ° | 66.3 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 150 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1174 mm | 1195 mm | 1214 mm | 1228 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm |
| Rear Travel | 160 mm | 160 mm | 160 mm | 160 mm |
| Wheels | 27" | 27" | 27" | 27" |
About this model
STEREO HYBRID 160 HPA Race 500 27.5 belongs to the Cube E Stereo Hybrid 160 model. 48 e-bikes variations carry this model name so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro e-bikes average price
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Enduro e-bikes
The average weight for Enduro e-bikes is 23.42 kg (51.63 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
STEREO HYBRID 160 HPA Race 500 27.5 weighs 23 kg (50.71 lbs) and is slightly lighter than the average. In other words, this model is 1.83% lighter than the average Enduro e-bike.
Overview of components
Fork
CUBE STEREO HYBRID 160 HPA Race 500 27.5 2017 e-bike is equipped with the RockShox Yari RC fork, and has 160mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this e-bike has the Fox Float DPS model, with a travel of 160mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
As for the wheels, CUBE STEREO HYBRID 160 HPA Race 500 27.5 2017, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The STEREO HYBRID 160 HPA Race 500 27.5 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
