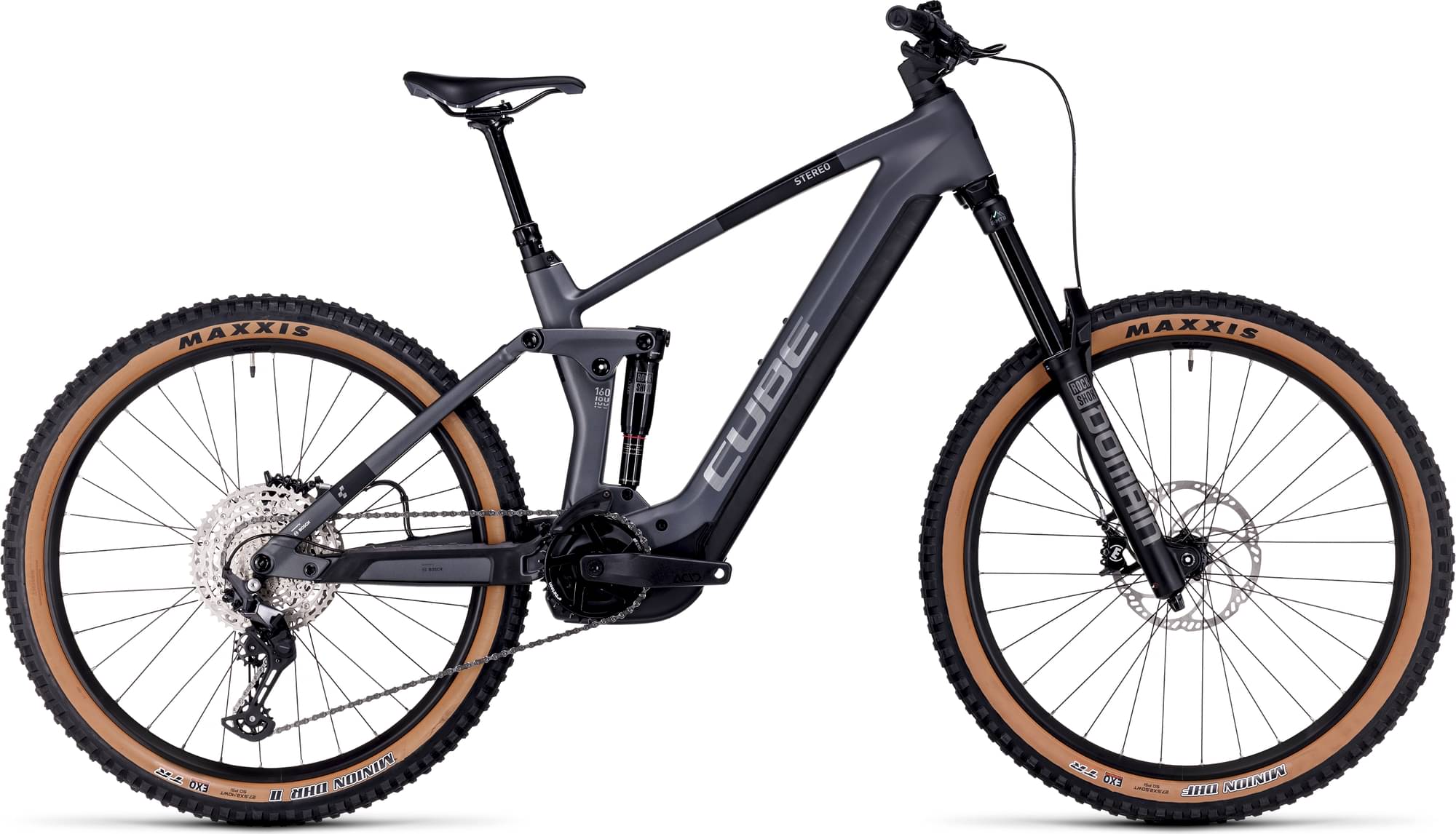

CUBE STEREO HYBRID 160 HPC, RACE 750 27.5 2023
2023 E-bike
Estimate price |
5,504$
Weight | 24.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 170mm -
Fork RockShox Domain
-
Groupset Deore -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

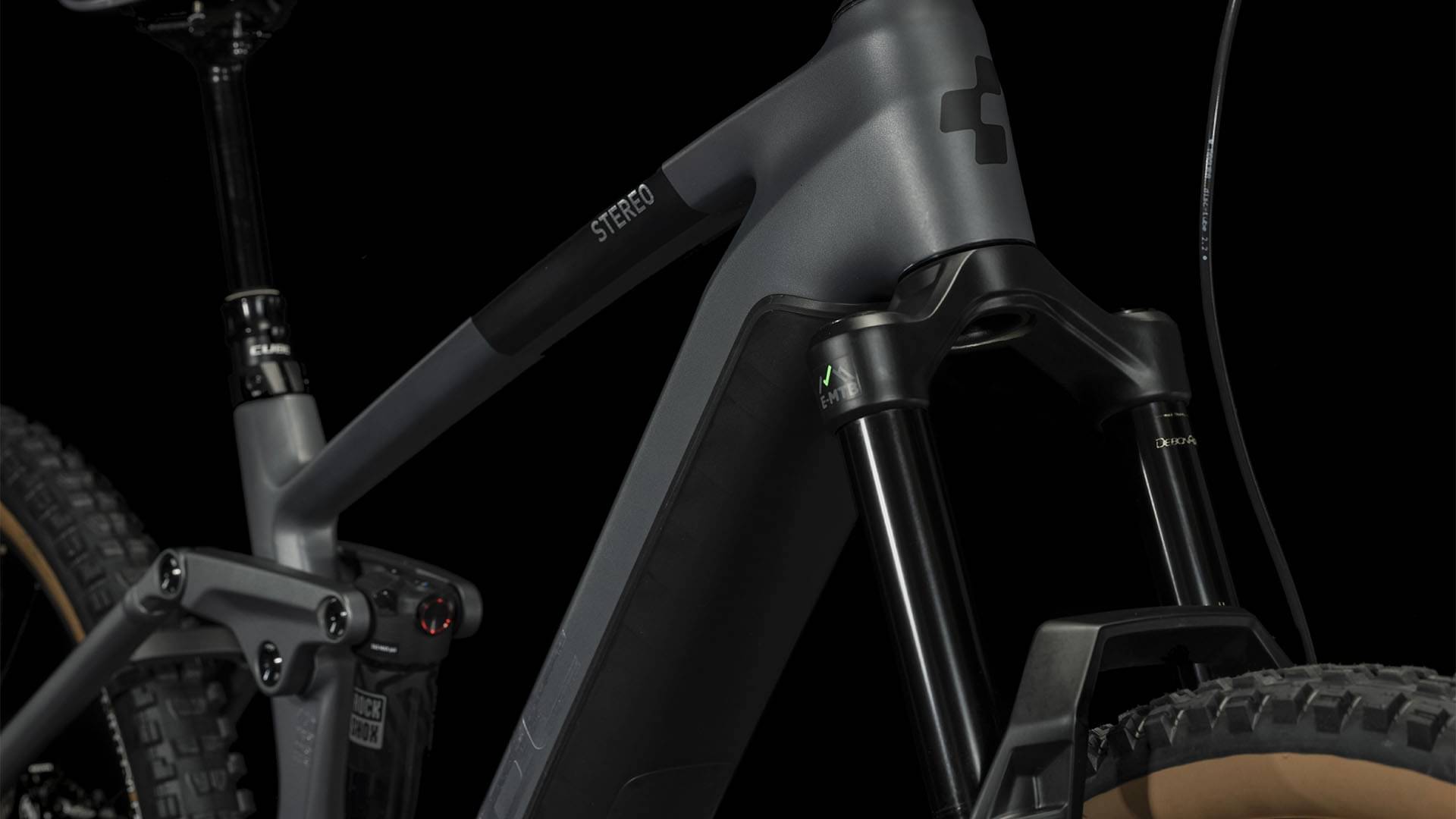

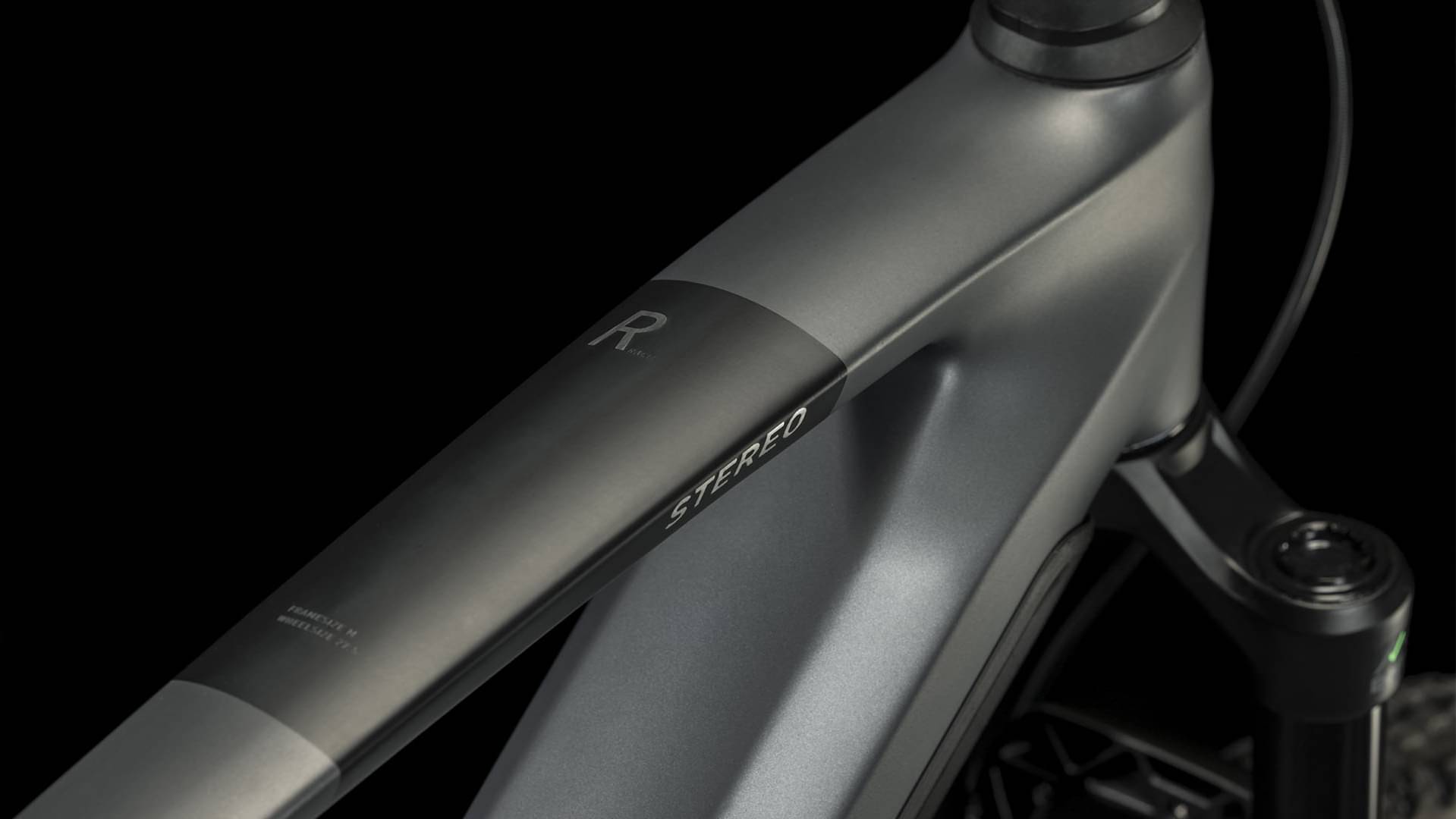

C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced Internal Cable Routing
Suspension Fork
RockShox Domain R, Tapered, 15x110mm, eMTB Approved, 170mm
Rear Shock

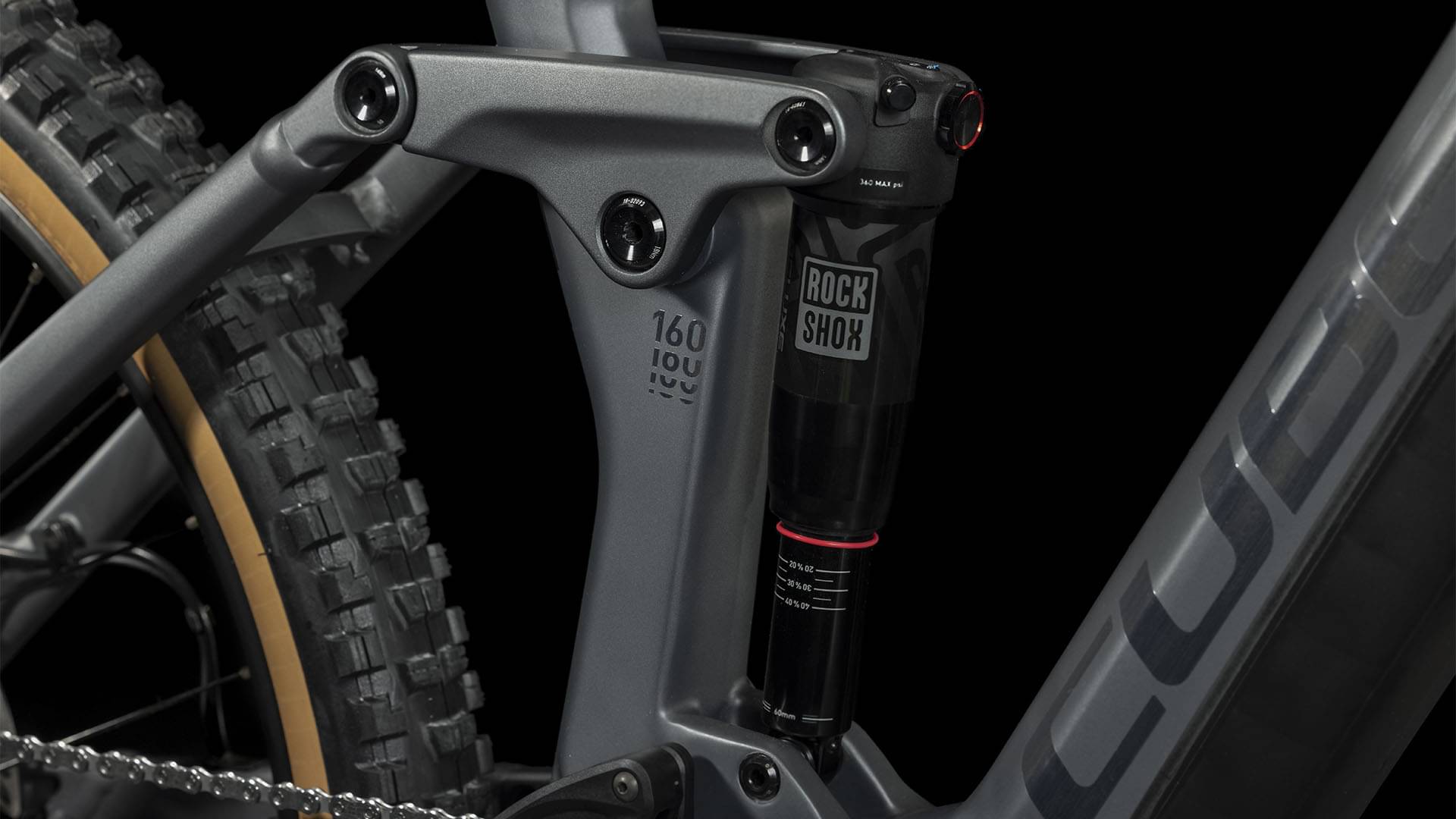

RockShox Deluxe Select, 205x65mm, Rebound Adjust, Trunnion Mount
Drivetrain
Rear Derailleur
Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed
Shift Levers
Shimano Deore SL-M6100, Rapidfire-Plus
Cassette
Shimano Deore CS-M6100, 10-51T
Crank
ACID E-Crank, 165mm, 36T
Chain
Shimano CN-M6100
Chain Guide
Reverse Flip-Guide E-Chain Guide, Direct Mount, GEN4
Wheels
Front Hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub
Shimano FH-MT410-B, 12mm, Boost, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Front: Maxxis Minion DHF, Dual/EXO, Tubeless Ready, 2.5 WT, Rear: Maxxis Minion DHF, Dual/EXO, Tubeless Ready, 2.5 WT
Brakes
Brakes
Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
Cockpit
Stem
CUBE Performance Stem E-MTB, 31.8mm
Handlebar
Newmen Evolution SL 318.25, 780mm
Grips
ACID React Pro
Headset
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle

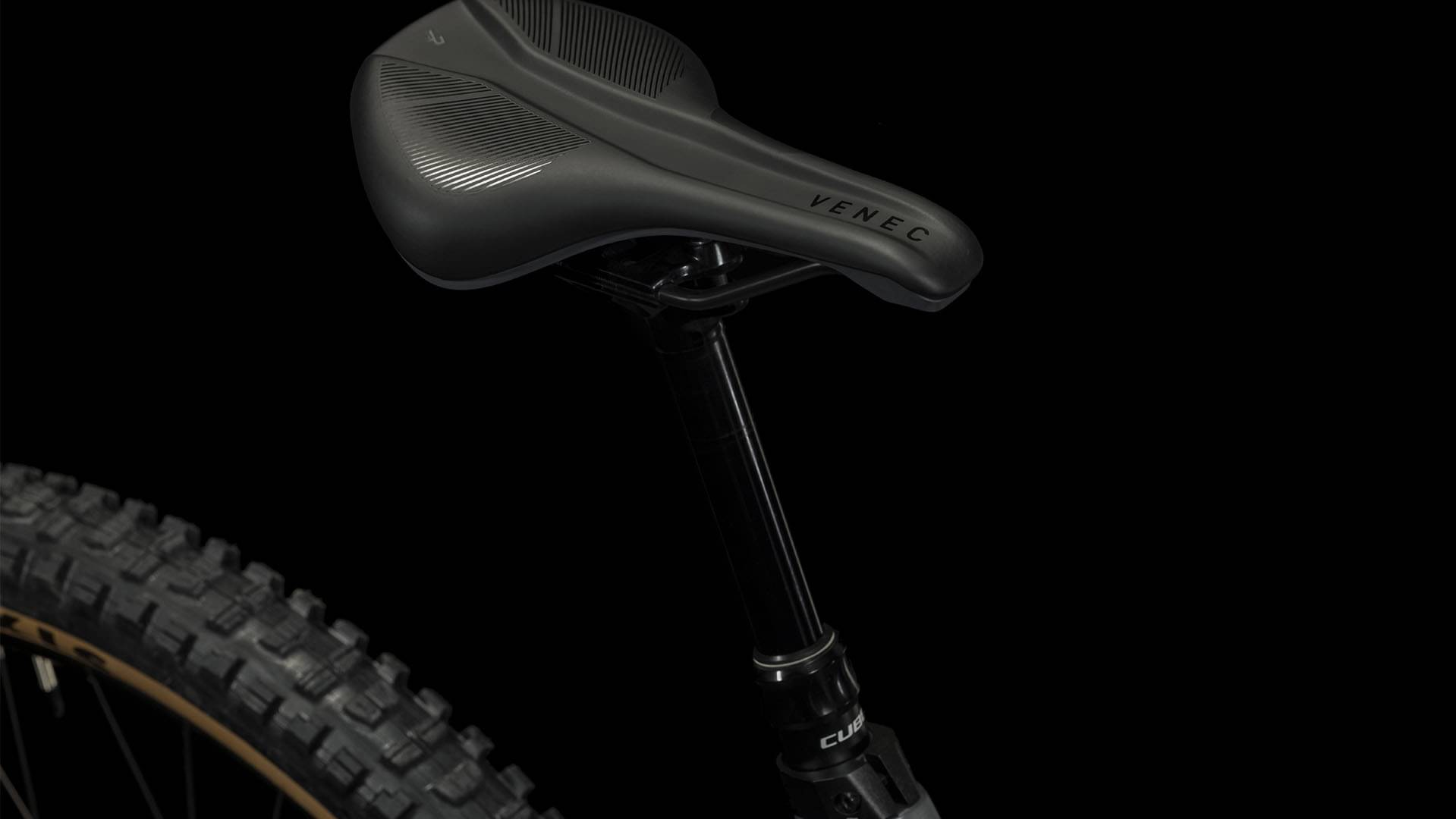

Natural Fit Venec
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 750
Remote

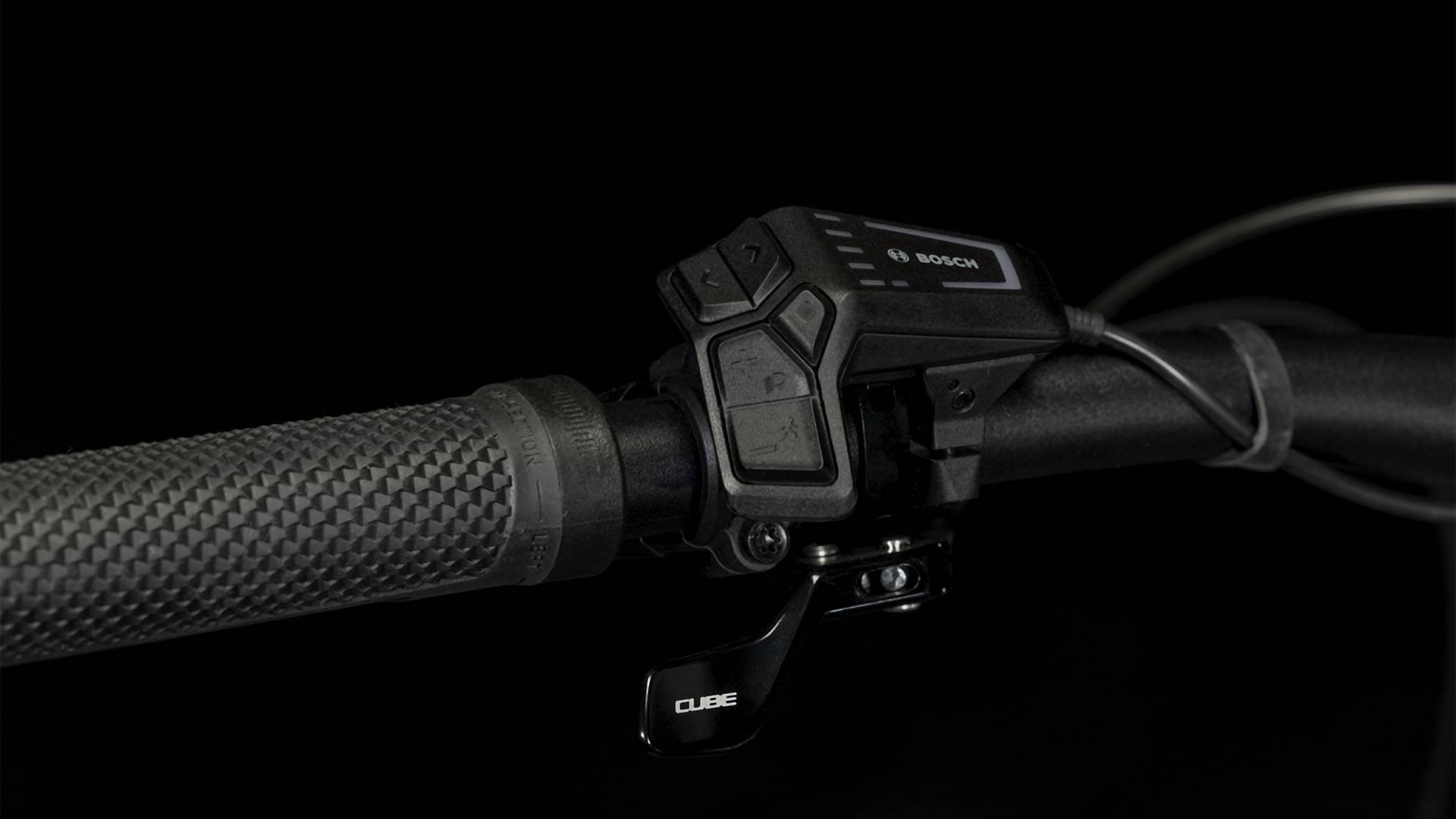

Bosch LED Remote
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.36 mm | 1.3 mm | 1.27 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 751 mm | 783 mm | 814 mm | 847 mm |
| Rake | 44 mm | 44 mm | 43 mm | 44 mm |
| Trail | 117 mm | 117 mm | 118 mm | 117 mm |
| Stack | 609 mm | 620 mm | 631 mm | 647 mm |
| Reach | 431 mm | 457 mm | 484 mm | 509 mm |
| Top Tube Length | 574 mm | 604 mm | 634 mm | 664 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 370 mm | 420 mm | 460 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 108 mm | 120 mm | 132 mm | 150 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1197 mm | 1229 mm | 1260 mm | 1293 mm |
| Bottom Bracket Drop | 13 mm | 13 mm | 13 mm | 13 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
STEREO HYBRID 160 HPC, RACE 750 27.5 belongs to the Cube E Stereo Hybrid 160 model. 48 e-bikes variations carry this model name so far. Take a sneak peek at all Cube E Stereo Hybrid 160 e-bikes models from 2023, by clicking here.
Model range prices
CUBE STEREO HYBRID 160 HPC, RACE 625 27.5 2023 is the cheapest e-bike model and costs 4883$. CUBE STEREO HYBRID 160 HPC, SLT 750 27.5 2023 is the most expensive one and costs 9449$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro e-bikes average price
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When CUBE released this model in 2023, its price was 5096$. Comparing this to the average Enduro e-bike price, we see that the price is 6.5% higher.
Enduro e-bikes average weight
If we make a quick analysis of the average weight of an Enduro e-bike, we get 23.42 kg (51.63 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
a bit heavier than average, STEREO HYBRID 160 HPC, RACE 750 27.5 has a weight of 24.6 kg (54.23 lbs). In other words, this model is 5.04% heavier than the average Enduro e-bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
STEREO HYBRID 160 HPC, RACE 750 27.5 components
Fork
The STEREO HYBRID 160 HPC, RACE 750 27.5 comes factory-installed with the RockShox Domain fork. This has a travel range of 170mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The STEREO HYBRID 160 HPC, RACE 750 27.5 2023 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The STEREO HYBRID 160 HPC, RACE 750 27.5 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
CUBE STEREO HYBRID 160 HPC, RACE 750 27.5 includes a dropper post. Therefore, climbing or descending will be a breeze.
