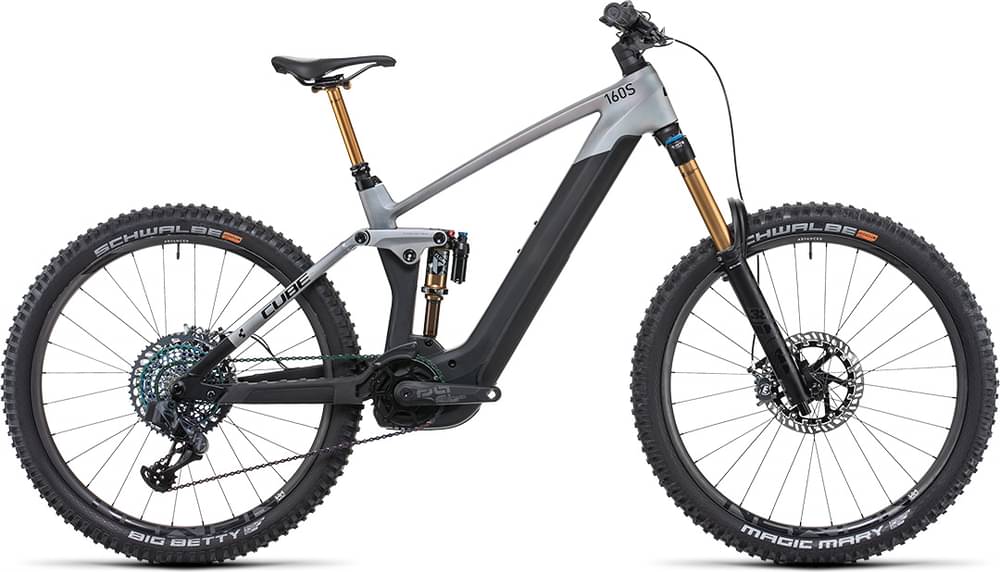

CUBE STEREO HYBRID 160 HPC SLT 27.5 2022
2022 E-bike
Estimate price |
9,633$
Weight | 24.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 170mm -
Fork Fox Factory Float 38
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Full -
Motor mid-drive -
Battery [This component is subject to an embargo until 31.08.21] -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
Suspension Fork
Fox 38 Float Factory FIT GRIP2, Tapered, 15x110mm, E-Bike Tune, 170mm, Kashima Coated
Rear Shock
Fox Float X Factory, 205x65mm, Trunnion Mount, Adjustable LSC w/ 2-Pos. Lever, Kashima Coated
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS™, 12-Speed
Shift Levers
SRAM Eagle AXS™ Controller
Cassette
SRAM XG-1299 Eagle™ Rainbow, 10-52T
Crank
e*thirteen Plus Crank, 165mm, 36T
Chain
SRAM PC-XX1 Eagle™ Rainbow
Chain Guide
Reverse Flip-Guide E-Kettenführung, Direct Mount, GEN4
Wheels
Rims
Newmen Advanced SL A.30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4
Brakes
Brakes
Magura MT7, Hydr. Disc Brake (203/203)
Cockpit
Stem
CUBE Performance Stem E-MTB, 31.8mm
Handlebar
Newmen Advanced 318.25, Carbon, 780mm
Grips
ACID Disrupt, Soft Compound
Headset
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Venec
Seatpost
Fox Transfer Factory 31.6mm, Kashima Coated (M,L: 150mm, XL: 175mm)
Motor & Battery
Motor
[This component is subject to an embargo until 31.08.21]
Battery
[This component is subject to an embargo until 31.08.21]
Remote
[This component is subject to an embargo until 31.08.21]
Charger
[This component is subject to an embargo until 31.08.21]
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.3 mm | 1.27 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm |
| Front Center | 783 mm | 815 mm | 847 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 117 mm | 117 mm | 117 mm |
| Stack | 619.1 mm | 629.9 mm | 646.3 mm |
| Reach | 456.4 mm | 482.8 mm | 507.5 mm |
| Top Tube Length | 603 mm | 633 mm | 663 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 420 mm | 460 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 120 mm | 132 mm | 150 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1227 mm | 1259 mm | 1291 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm |
| Standover Height | 772 mm | 772 mm | 795 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
STEREO HYBRID 160 HPC SLT 27.5 belongs to the Cube E Stereo Hybrid 160 model. CUBE launched 48 e-bikes of this model so far. Take a sneak peek at all Cube E Stereo Hybrid 160 e-bikes models from 2022, by clicking here.
Model range prices
CUBE STEREO HYBRID 160 HPC RACE 625 27.5 2022 is the most economical model, with a starting price of 4352$. CUBE STEREO HYBRID 160 HPC SLT 27.5 2022 on the other hand costs 8918$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro e-bikes
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2022 and its price was 8918$. In conclusion, this e-bike price is 86.37% more expensive than the price of the average Enduro e-bike.
Enduro e-bikes average weight
If we make a quick analysis of the average weight of an Enduro e-bike, we get 23.42 kg (51.63 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
CUBE STEREO HYBRID 160 HPC SLT 27.5 it’s weighing 24.3 kg (53.57 lbs). At this weight, is slightly heavier than average. In short, the average Enduro e-bike weight is 3.76% lower than this one.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
STEREO HYBRID 160 HPC SLT 27.5 components
Fork
The Fox Factory Float 38 is included from the factory. It has a travel distance of 170mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When leaving the production line, the STEREO HYBRID 160 HPC SLT 27.5 model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE STEREO HYBRID 160 HPC SLT 27.5 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
