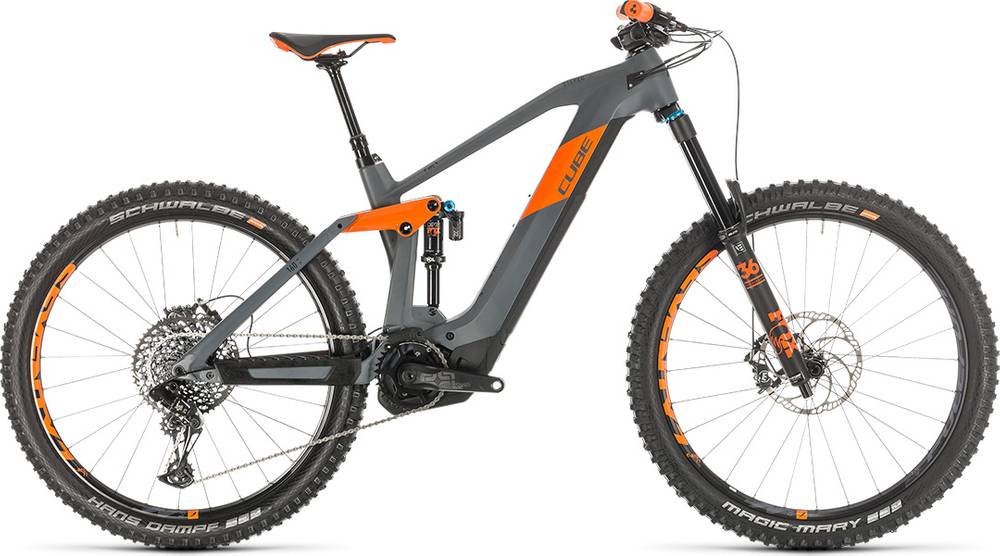

CUBE STEREO HYBRID 160 HPC TM 625 27.5 2020
2020 E-bike
Estimate price |
5,589$
Weight | 23.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Float 36
-
Groupset NX Eagle, e*thirteen -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery PowerTube 625 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HPC, High Performance Composite
Suspension Fork
Fox 36 Float GRIP, E-Bike Tune, 170mm
Rear Shock
Fox Float DPX2 EVOL
Drivetrain
Rear Derailleur
SRAM NX Eagle™, 10-50T, 1x12
Shift Levers
SRAM NX Eagle™ Trigger, Single Click
Cassette
SRAM XG-1275 Eagle™, 10-50T
Crank
e*thirteen Plus Crank, 36T
Chain
SRAM NX Eagle™
Chain Guide
e*thirteen Plus e*spec
Wheels
Rims
Fulcrum E-Metal 700
Tires
Schwalbe Magic Mary Kevlar, Addix Soft, Super Gravity, Tubeless Easy, 2.60
Brakes
Brakes
Magura MT7
Cockpit
Stem
CUBE Performance Stem E-MTB, 31.8mm
Handlebar
Newmen Evolution SL 318.25, 780mm
Grips
CUBE Race Grip 31mm, 1-Clamp
Headset
FSA Orbit Z 1.5E ZS, Top Zero-Stack 1 1/2" (OD 56mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Natural Fit Venec
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (16": 370x100mm, 18": 420x125mm, 20", 22": 480x150mm)
Motor & Battery
Motor
Bosch Drive Unit Performance CX GEN4 (75Nm)
Battery
PowerTube 625
Remote
Kiox
Charger
4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.38 mm | 1.34 mm | 1.32 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 742 mm | 765 mm | 789 mm | 818 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 117 mm | 117 mm | 117 mm | 117 mm |
| Stack | 590 mm | 597 mm | 606 mm | 624 mm |
| Reach | 412 mm | 432 mm | 452 mm | 472 mm |
| Top Tube Length | 560 mm | 582 mm | 605 mm | 630 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 375 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 105 mm | 112 mm | 122 mm | 142 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1175 mm | 1198 mm | 1222 mm | 1251 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm |
| Standover Height | 764 mm | 764 mm | 764 mm | 791 mm |
| Rear Travel | 160 mm | 160 mm | 160 mm | 160 mm |
| Wheels | 27" | 27" | 27" | 27" |
Model Overview
STEREO HYBRID 160 HPC TM 625 27.5 is a Cube E Stereo Hybrid 160 model. CUBE released 48 e-bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
CUBE STEREO HYBRID 160 HPC SL 625 27.5 2020 is the most affordable e-bike of this model and has a price of 4346$. On the other hand, CUBE STEREO HYBRID 160 HPC SLT 625 27.5 2020, is the most expensive and costs 8279$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro e-bikes average price
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, CUBE STEREO HYBRID 160 HPC TM 625 27.5 price was 5174$. Doing a quick comparison, we notice that STEREO HYBRID 160 HPC TM 625 27.5 price is 8.13% higher than the average cost of an Enduro e-bike.
Average weight for Enduro e-bikes
If we make a quick analysis of the average weight of an Enduro e-bike, we get 23.42 kg (51.63 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 23.9 kg (52.69 lbs), the STEREO HYBRID 160 HPC TM 625 27.5 model is slightly heavier than average. To sum up, it’s 2.05% heavier than the average weight of Enduro e-bikes.
Overview of components
Fork
The Fox Float 36 is included from the factory. It has a travel distance of 170mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this e-bike has the Fox Float DPX2 EVOL model, with a travel of 160mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When leaving the production line, the STEREO HYBRID 160 HPC TM 625 27.5 model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. CUBE STEREO HYBRID 160 HPC TM 625 27.5 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Dropper post
CUBE STEREO HYBRID 160 HPC TM 625 27.5 includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
