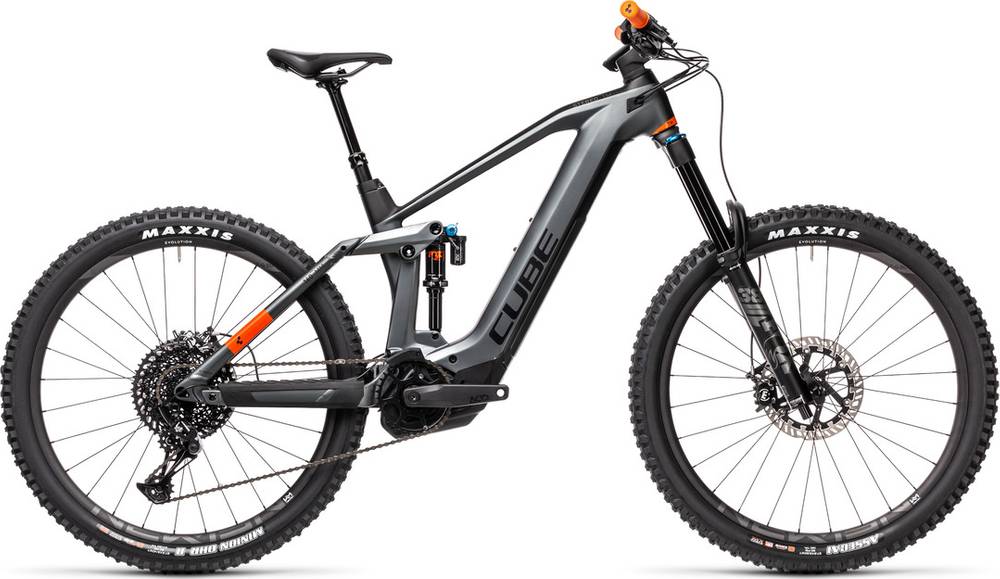

CUBE STEREO HYBRID 160 HPC TM 625 27.5 2021
2021 E-bike
Estimate price |
6,020$
Weight | 24.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Performance Float 38
-
Groupset NX Eagle -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 625 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C:62 Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, Full Integrated Battery
Suspension Fork
Fox 38 Float Performance GRIP, 3-Position w/Micro Adjust, Tapered, 15x110mm, 170mm
Rear Shock
Fox Float DPX2 EVOL, 205x60mm, Open/Medium/Firm Mode, Trunnion Mount
Drivetrain
Rear Derailleur
SRAM NX Eagle™, 12-Speed
Shift Levers
SRAM NX Eagle™ Trigger, Single Click
Cassette
SRAM XG-1275 Eagle™, 10-50T
Crank
ACID E-Crank, 36T, 165mm
Chain
SRAM SX Eagle™
Chain Guide
e*thirteen Plus e*spec
Wheels
Rims
Newmen Evolution SL E.30, 28/28 Spokes, 15x110/12x148mm, Tubeless Ready
Tires
Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT
Brakes
Brakes
Magura MT7, Hydr. Disc Brake (203/203)
Cockpit
Stem
CUBE Performance Stem E-MTB, 31.8mm
Handlebar
Newmen Evolution SL 318.25, 800mm
Grips
CUBE Race Grip 31mm, 1-Clamp
Headset
ACROS AZX-1030, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Venec
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (S: 100mm, M: 125mm, L, XL: 150mm)
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
Battery
Bosch PowerTube 625
Remote
Bosch Kiox
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.38 mm | 1.34 mm | 1.32 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 741 mm | 764 mm | 788 mm | 817 mm |
| Rake | 44 mm | 44 mm | 43 mm | 44 mm |
| Trail | 117 mm | 117 mm | 118 mm | 117 mm |
| Stack | 590 mm | 597 mm | 606 mm | 624 mm |
| Reach | 412 mm | 432 mm | 452 mm | 472 mm |
| Top Tube Length | 560 mm | 582 mm | 605 mm | 630 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 375 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 105 mm | 112 mm | 122 mm | 142 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1175 mm | 1198 mm | 1222 mm | 1251 mm |
| Bottom Bracket Drop | 13 mm | 13 mm | 13 mm | 13 mm |
| Standover Height | 764 mm | 764 mm | 764 mm | 791 mm |
| Rear Travel | 160 mm | 160 mm | 160 mm | 160 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
STEREO HYBRID 160 HPC TM 625 27.5 is part of the Cube E Stereo Hybrid 160 model. CUBE launched 48 e-bikes of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
CUBE STEREO HYBRID 160 HPC RACE 625 27.5 2021 is the most affordable e-bike of this model and has a price of 4352$. On the other hand, CUBE STEREO HYBRID 160 C:62 SLT 625 27.5 NYON 2021, is the most expensive and costs 9290$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro e-bikes
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, CUBE STEREO HYBRID 160 HPC TM 625 27.5 price was 5573$. Doing a quick comparison, we notice that STEREO HYBRID 160 HPC TM 625 27.5 price is 16.47% more expensive than the average cost of an Enduro e-bike.
Average weight for Enduro e-bikes
On a deeper look, we notice that the average weight of an Enduro e-bike is 23.42 kg (51.63 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 24.2 kg (53.35 lbs), CUBE e-bike is slightly heavier than average. In other words, this model is 3.33% heavier than the average Enduro e-bike.
STEREO HYBRID 160 HPC TM 625 27.5 components
Fork
The Fox Performance Float 38 is included from the factory. It has a travel distance of 170mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The STEREO HYBRID 160 HPC TM 625 27.5 has a rear shock with a travel of 160mm. The model Fox Float DPX2 EVOL is the one installed in this e-bike. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The wheels on STEREO HYBRID 160 HPC TM 625 27.5 are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. CUBE STEREO HYBRID 160 HPC TM 625 27.5 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
CUBE STEREO HYBRID 160 HPC TM 625 27.5 includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
