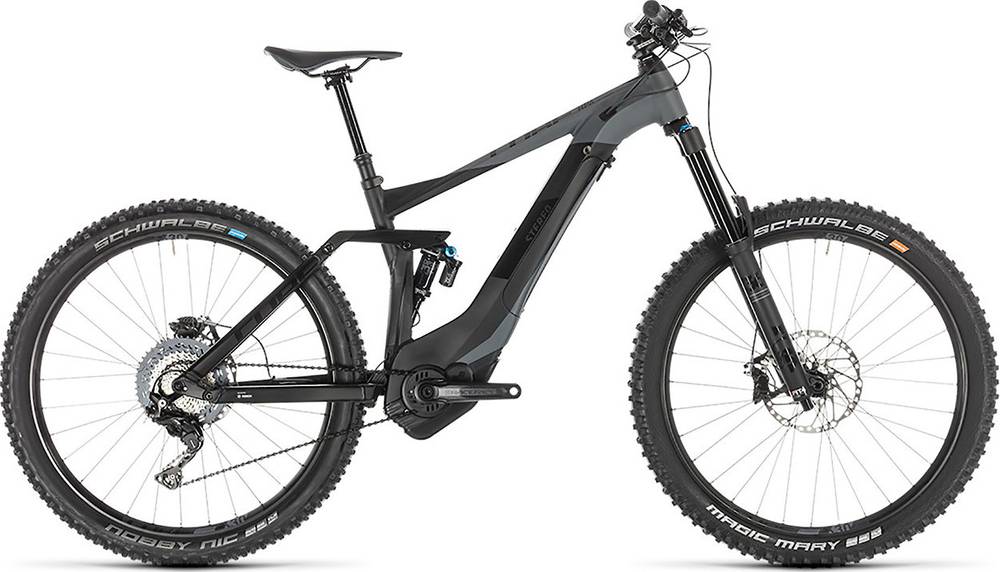

CUBE Stereo Hybrid 160 SL 500 2019
2019 E-bike
Weight | 23.7 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Float 36
-
Groupset XT, Race Face -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube 500 with Bosch 4A charger -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX 36 Float, GRIP, 3-position with micro adjust, 15mm x 110mm
Rear Shock
FOX Float DPX2 EVOL, open(adjustable)/medium/firm mode, 200mm x 57mm, 30x8mm upper and lower mounts
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DGS, Shadow Plus, 11-speed
Front Derailleur
N/A
Shift Levers
Shimano XT SL-M8000-I, direct attach
Cassette
Shimano SLX CS-M7000, 11-46 tooth, 11-speed
Crank
Race Face Aeffect, 165mm
Chain
KMC X11e Turbo
Chain Guide
N/A
Pedals
Cube PP MTB
Wheels
Front Hub
Front: Shimano XT HB-M8010-B, Boost, Center Lock, 15QR x 110mm, Rear: Shimano XT FH-M8010-B, Boost, Center Lock, 12mm x 148mm
Rear Hub
Front: Shimano XT HB-M8010-B, Boost, Center Lock, 15QR x 110mm, Rear: Shimano XT FH-M8010-B, Boost, Center Lock, 12mm x 148mm
Rims
Cube EX30, 32 hole, tubeless ready
Tires
Front: Schwalbe Magic Mary, Addix Soft, Tubeless Easy, Super Gravity, 27.5 x 2.60", Rear: Schwalbe Nobby Nic, Addix Speedgrip, Tubeless Easy, Super Gravity, 27.5 x 2.60"
Brakes
Brakes
Shimano XT with 180mm rotors (front and rear)
Brake Levers
Shimano XT
Cockpit
Stem
Race Face Ride, 35mm diameter
Handlebar
Race Face Ride 35, 760mm width
Grips
Cube Race, 31mm, single clamp
Headset
FSA 1.5B ZS, zero stack
Seat
Saddle
Cube Natural Fit Active Race
Seatpost
FOX Transfer Performance Elite, 359x100mm for 16" frame, 409x125mm for 18" frame, 456x150mm for 20" and 22" frames
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500 with Bosch 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.43 mm | 1.41 mm | 1.43 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 728 mm | 749 mm | 763 mm | 776 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 112 mm | 112 mm | 112 mm | 112 mm |
| Stack | 619 mm | 623 mm | 632 mm | 647 mm |
| Reach | 417 mm | 437 mm | 447 mm | 453 mm |
| Top Tube Length | 588 mm | 609 mm | 626 mm | 637 mm |
| Seat Tube Angle | 74.3 ° | 74.3 ° | 74.3 ° | 74.3 ° |
| Seat Tube Length | 390 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 65.8 ° | 65.8 ° | 65.8 ° | 65.8 ° |
| Head Tube Length | 115 mm | 119 mm | 129 mm | 146 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1208 mm | 1229 mm | 1243 mm | 1256 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm |
| Wheels | 27" | 27" | 27" | 27" |
Model Overview
Stereo Hybrid 160 SL 500 completes the Cube E Stereo Hybrid 160 model. 48 e-bikes variations carry this model name so far. Take a sneak peek at all Cube E Stereo Hybrid 160 e-bikes models from 2019, by clicking here.
Model range prices
CUBE STEREO HYBRID 160 Race 500 27.5 2019 is the most economical model, with a starting price of 4034$. CUBE STEREO HYBRID 160 Action Team 500 KIOX 27.5 2019 on the other hand costs 6263$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro e-bikes
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Enduro e-bikes
Enduro e-bikes weigh an average of 23.42 kg (51.63 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Cube Stereo Hybrid 160 SL 500 it’s weighing 23.7 kg (52.25 lbs). At this weight, is slightly heavier than average. In conclusion, the average Enduro e-bike weighs 1.2% less than Stereo Hybrid 160 SL 500.
Stereo Hybrid 160 SL 500 components
Fork
Cube Stereo Hybrid 160 SL 500 2019 e-bike is equipped with the Fox Float 36 fork, and has 170mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this e-bike is FOX Float DPX2 EVOL, with a travel distance of 160mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When leaving the production line, the Stereo Hybrid 160 SL 500 model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Cube Stereo Hybrid 160 SL 500 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Dropper post
A dropper post is included with the Stereo Hybrid 160 SL 500. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
