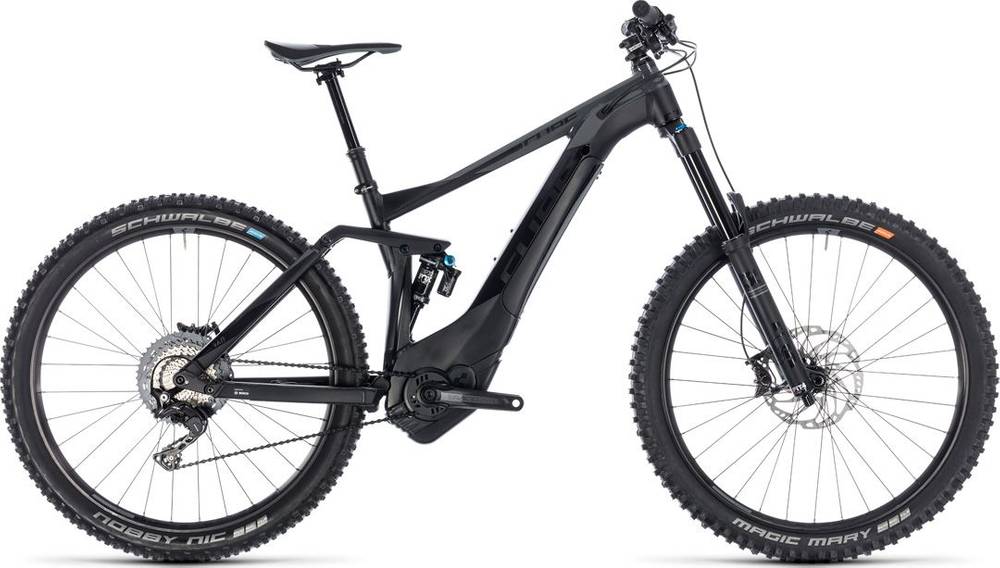

CUBE STEREO HYBRID 160 SL 500 27.5 2018
2018 E-bike
Weight | 23.7 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Float 36
-
Groupset XT, Race Face -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, Tripple Butted, ETC 4-Link, ATG, Boost148, Tuned Drive Position, AXH, FIB
Suspension Fork
Fox 36 Float GRIP, 3-Position w/Micro Adjust, Tapered, 15x110mm, 170mm
Rear Shock
Fox Float DPX2 EVOL, 200x57mm, Open(Adjustable)/Medium/Firm Mode
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed
Front Derailleur
N/A
Shift Levers
Shimano XT SL-M8000-I, Direct Attach
Cassette
Shimano SLX CS-M7000, 11-46T
Crank
Race Face Aeffect, 165mm, 15T
Chain
KMC X11e Turbo
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Shimano XT HB-M8000, 15QR, Boost, Centerlock
Rear Hub
Shimano XT FH-M8010-B, 12mm, Boost, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Spokes
32 count front and rear
Tires
Schwalbe Magic Mary 2.60, Addix Soft, Tubeless Easy, Super Gravity
Brakes
Brakes
Shimano XT BR-M8000, Hydr. Disc Brake (203/180)
Brake Levers
Shimano XT
Cockpit
Stem
Race Face Ride 35
Handlebar
Race Face Ride 35, 760mm
Grips
CUBE Race Grip 31, 1-Clamp
Headset
FSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
CUBE Race EXC 145
Seatpost
Fox Transfer Performance Elite 31.6mm (16": 359x100mm; 18": 409x125mm; 20", 22": 456x150mm)
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.43 mm | 1.41 mm | 1.43 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 728 mm | 749 mm | 763 mm | 776 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 112 mm | 112 mm | 112 mm | 112 mm |
| Stack | 619 mm | 623 mm | 632 mm | 647 mm |
| Reach | 417 mm | 437 mm | 447 mm | 453 mm |
| Top Tube Length | 588 mm | 609 mm | 626 mm | 637 mm |
| Seat Tube Angle | 74.3 ° | 74.3 ° | 74.3 ° | 74.3 ° |
| Seat Tube Length | 390 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 65.8 ° | 65.8 ° | 65.8 ° | 65.8 ° |
| Head Tube Length | 115 mm | 119 mm | 129 mm | 146 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1208 mm | 1229 mm | 1243 mm | 1256 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm |
| Rear Travel | 160 mm | 160 mm | 160 mm | 160 mm |
| Wheels | 27" | 27" | 27" | 27" |
About this model
STEREO HYBRID 160 SL 500 27.5 completes the Cube E Stereo Hybrid 160 model. There are 48 e-bikes that carry this model name. Take a sneak peek at all Cube E Stereo Hybrid 160 e-bikes models from 2018, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro e-bikes
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Average weight for Enduro e-bikes
The average weight for Enduro e-bikes is 23.42 kg (51.63 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
STEREO HYBRID 160 SL 500 27.5 weighs 23.7 kg (52.25 lbs) and is slightly heavier than the average. In short, the average Enduro e-bike weight is 1.2% lower than this one.
STEREO HYBRID 160 SL 500 27.5 components
Fork
The fork installed on this bike is the Fox Float 36 model. The travel on this model is 170mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The STEREO HYBRID 160 SL 500 27.5 has a rear shock with a travel of 160mm. The model Fox Float DPX2 EVOL is the one installed in this e-bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When leaving the production line, the STEREO HYBRID 160 SL 500 27.5 model has 27.5″ aluminum wheels. These wheels will provide you with more control over the e-bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The STEREO HYBRID 160 SL 500 27.5 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
