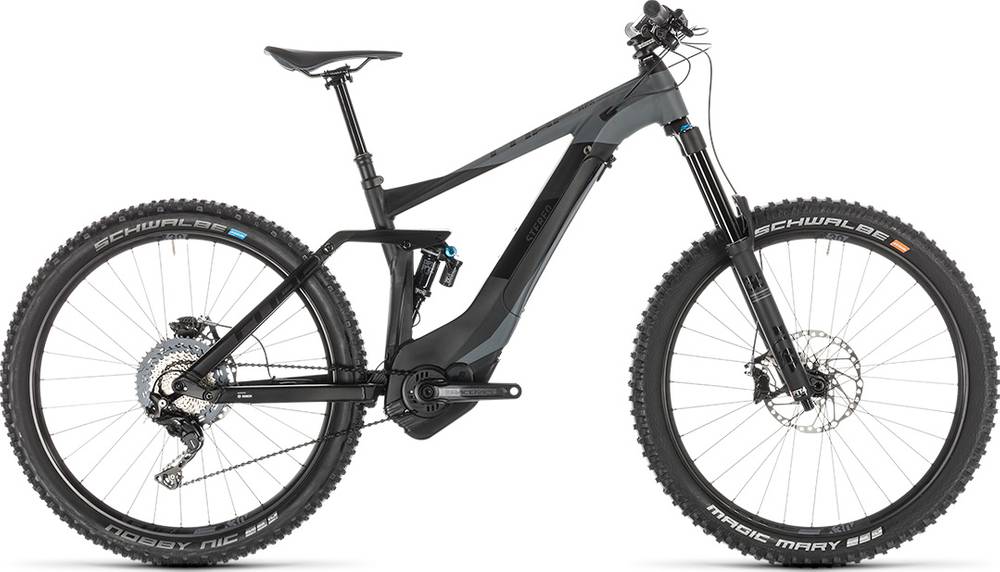

CUBE STEREO HYBRID 160 SL 500 KIOX 27.5 2019
2019 E-bike
Estimate price |
5,275$
Weight | 23.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Float 36
-
Groupset XT, Race Face -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, Triple Butted, Efficient Trail Control 4-Link, Agile Trail Geometry, Boost 148, Tuned Drive Position, AXH, Full Integrated Battery
Suspension Fork
Fox 36 Float GRIP, 3-Position w/Micro Adjust, Tapered, 15x110mm, 170mm
Rear Shock
Fox Float DPX2 EVOL, 200x57mm, Open(Adjustable)/Medium/Firm Mode
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed
Shift Levers
Shimano XT SL-M8000-I, Direct Attach
Cassette
Shimano SLX CS-M7000, 11-46T
Crank
Race Face Aeffect, 15T, 165mm
Chain
KMC X11e Turbo
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano XT HB-M8010-B, 15QR, Boost, Centerlock
Rear Hub
Shimano XT FH-M8010-B, 12mm, Boost, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Magic Mary 2.60, Addix Soft, Tubeless Easy, Super Gravity
Brakes
Brakes
Shimano XT BR-M8020, Hydr. Disc Brake (203/203)
Cockpit
Stem
Race Face Ride, 35mm
Handlebar
Race Face Ride 35, 760mm
Grips
CUBE Race Grip 31mm, 1-Clamp
Headset
FSA 1.5E ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Natural Fit Active Race
Seatpost
Fox Transfer Performance Elite 31.6mm (16": 359x100mm; 18": 409x125mm; 20", 22": 456x150mm)
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500
Remote
Bosch Kiox
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.43 mm | 1.41 mm | 1.43 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 728 mm | 749 mm | 763 mm | 776 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 112 mm | 112 mm | 112 mm | 112 mm |
| Stack | 619 mm | 623 mm | 632 mm | 647 mm |
| Reach | 417 mm | 437 mm | 447 mm | 453 mm |
| Top Tube Length | 588 mm | 609 mm | 626 mm | 637 mm |
| Seat Tube Angle | 74.3 ° | 74.3 ° | 74.3 ° | 74.3 ° |
| Seat Tube Length | 390 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 65.8 ° | 65.8 ° | 65.8 ° | 65.8 ° |
| Head Tube Length | 115 mm | 119 mm | 129 mm | 146 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1208 mm | 1229 mm | 1243 mm | 1256 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm |
| Rear Travel | 160 mm | 160 mm | 160 mm | 160 mm |
| Wheels | 27" | 27" | 27" | 27" |
About this model
STEREO HYBRID 160 SL 500 KIOX 27.5 belongs to the Cube E Stereo Hybrid 160 model. CUBE released 48 e-bikes variations of this model so far. Take a sneak peek at all Cube E Stereo Hybrid 160 e-bikes models from 2019, by clicking here.
Model range prices
The most economical model, the CUBE STEREO HYBRID 160 Race 500 27.5 2019 has a starting price of 4034$. CUBE STEREO HYBRID 160 Action Team 500 KIOX 27.5 2019 on the other hand is the most expensive at 6263$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro e-bikes
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4883$. If we compare this with the average Enduro e-bike cost we notice that the price is 2.05% more expensive.
Average weight for Enduro e-bikes
Enduro e-bikes weigh an average of 23.42 kg (51.63 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 23.7 kg (52.25 lbs), the STEREO HYBRID 160 SL 500 KIOX 27.5 model is slightly heavier than average. In other words, this model is 1.2% heavier than the average Enduro e-bike.
STEREO HYBRID 160 SL 500 KIOX 27.5 components
Fork
This e-bike has the Fox Float 36 fork installed. The fork’s travel is 170mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
CUBE STEREO HYBRID 160 SL 500 KIOX 27.5 e-bike has the Fox Float DPX2 EVOL model installed, and has a travel of 160mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When leaving the production line, the STEREO HYBRID 160 SL 500 KIOX 27.5 model has 27.5″ aluminum wheels. These wheels will provide you with more control over the e-bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
