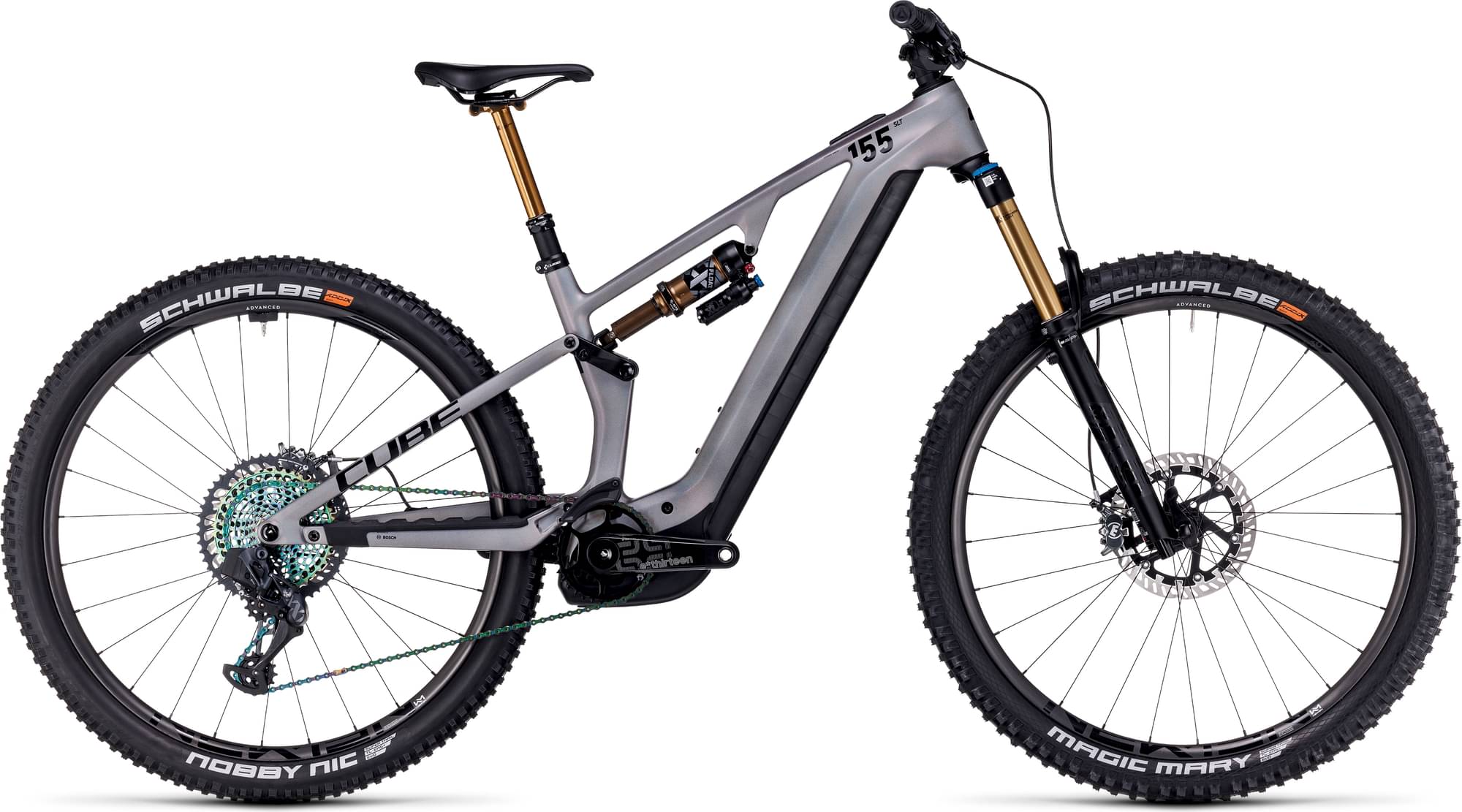

CUBE STEREO HYBRID ONE55 C:68X, SLT 750 2023
2023 E-bike
Estimate price |
11,468$
Weight | 21.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750 -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C:68X® Monocoque Advanced Twin Mold Technology, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced Internal Cable Routing
Suspension Fork
Fox 36 Float Factory FIT GRIP2, Tapered, 15x110mm, E-Bike Tune, 160mm, Kashima Coated

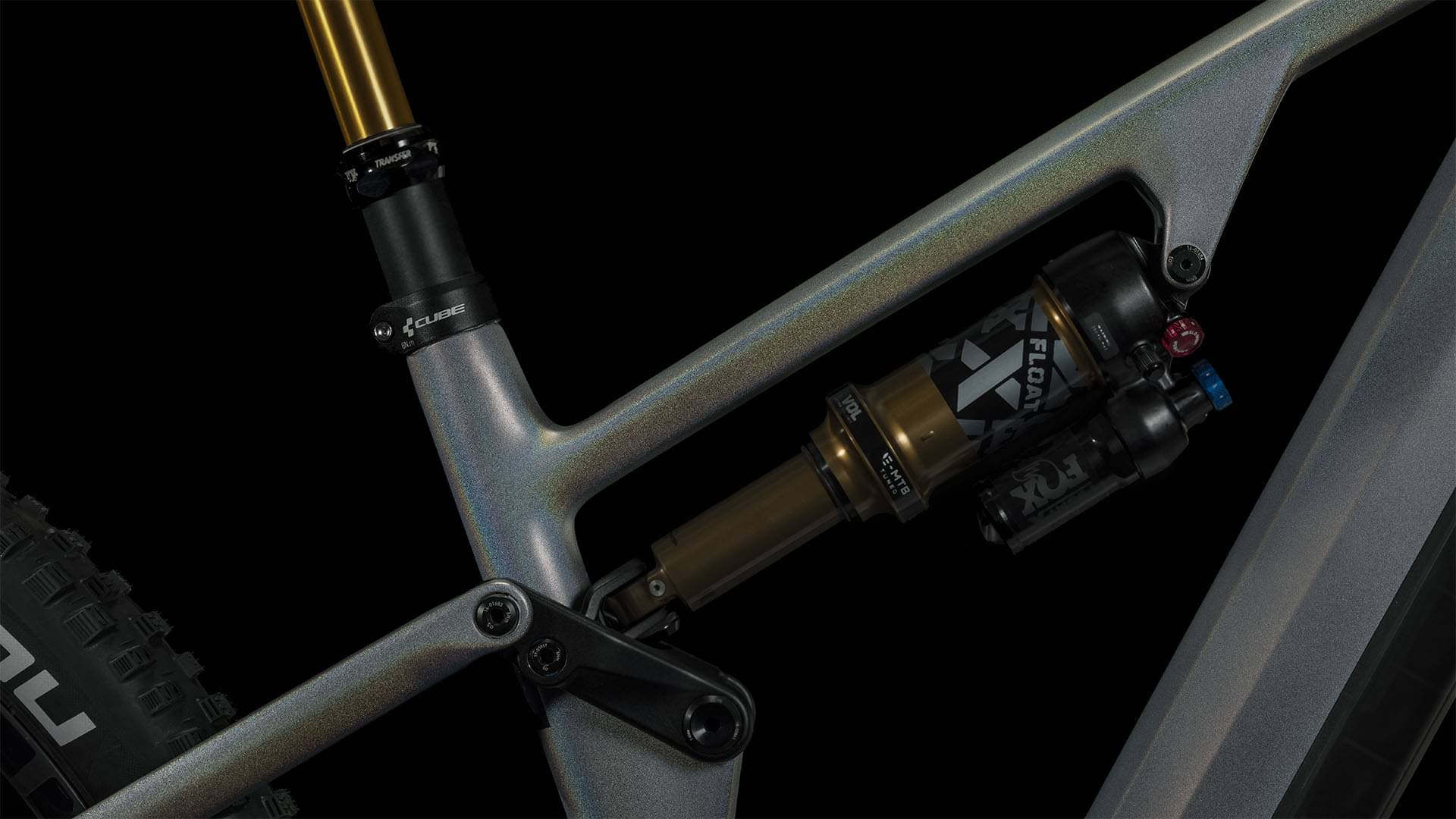

Rear Shock
Fox Float X Factory, 230x60mm, Adjustable LSC w/ 2-Pos. Lever, Kashima Coated
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS™, 12-Speed
Shift Levers
SRAM Eagle AXS™ Controller
Cassette
SRAM XG-1299 Eagle™ Rainbow, 10-52T
Crank
e*thirteen TRSr Carbon Crank, 34T, 165mm
Chain
SRAM PC-XX1 Eagle™ Rainbow
Chain Guide
Reverse Flip-Guide E-Chain Guide, Direct Mount, GEN4
Wheels
Rims
Newmen Advanced SL A.30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
Front: Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4, Rear: Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4
Brakes
Brakes
Magura MT7, Hydr. Disc Brake (203/203)
Cockpit
Stem
Newmen Evolution SL 318.4, 31.8mm
Handlebar
Newmen Advanced 318.25, Carbon, 780mm
Grips
ACID Disrupt, Soft Compound
Headset
ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
Seat
Saddle
Natural Fit Venec
Seatpost
Fox Transfer Factory 31.6mm, Kashima Coated
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 750

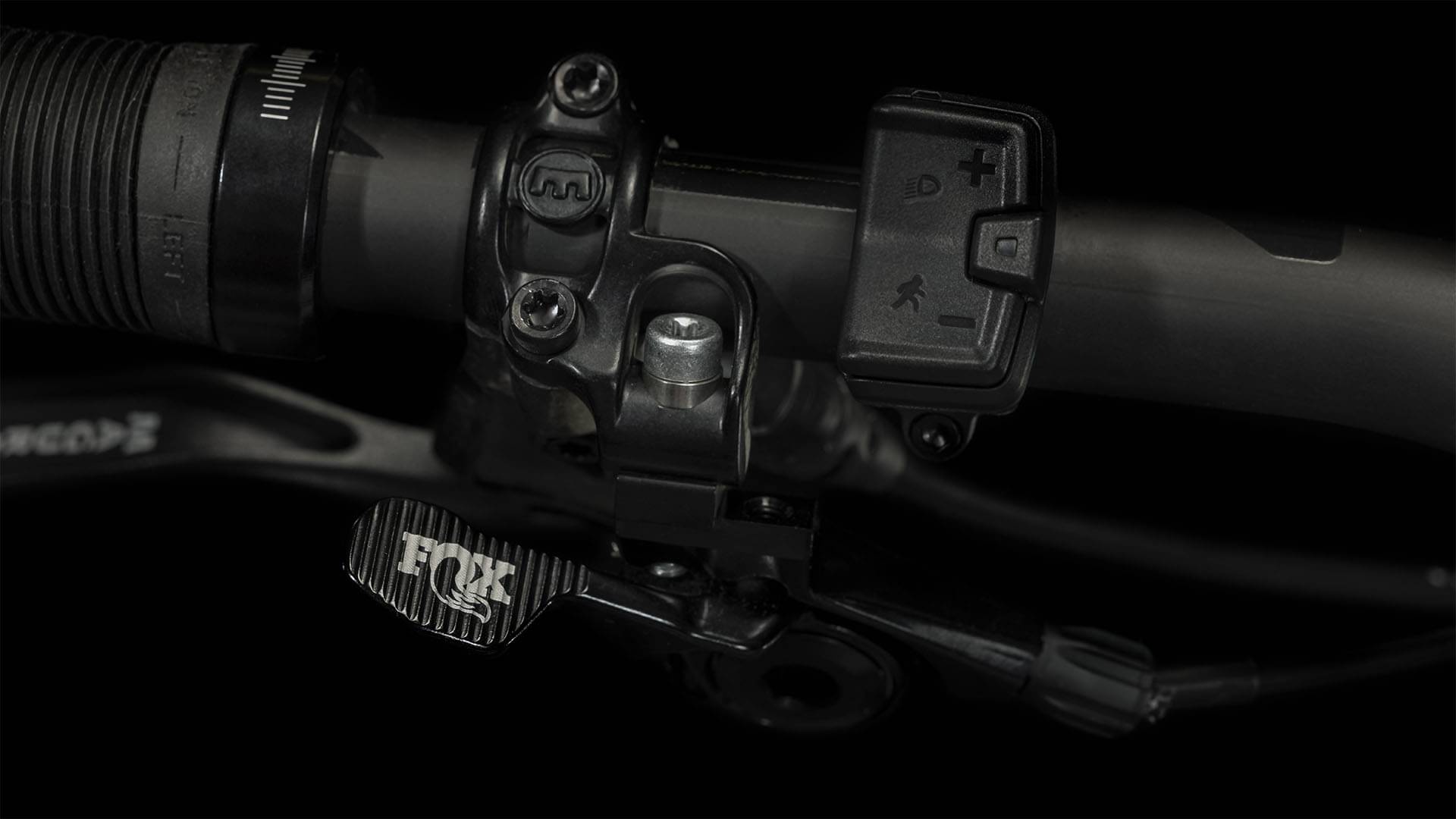

Remote
Bosch System Control, incl. Mini Remote
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.33 mm | 1.31 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm |
| Front Center | 782 mm | 811 mm | 843 mm |
| Rake | 44 mm | 43 mm | 44 mm |
| Trail | 131 mm | 132 mm | 131 mm |
| Stack | 629 mm | 638 mm | 656 mm |
| Reach | 454 mm | 479 mm | 502 mm |
| Top Tube Length | 604 mm | 631 mm | 662 mm |
| Seat Tube Angle | 75.7 ° | 75.7 ° | 75.7 ° |
| Seat Tube Length | 405 mm | 420 mm | 470 mm |
| Head Tube Angle | 64.4 ° | 64.4 ° | 64.4 ° |
| Head Tube Length | 105 mm | 115 mm | 135 mm |
| Chainstay Length | 459 mm | 459 mm | 459 mm |
| Wheelbase | 1239 mm | 1268 mm | 1300 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm |
| Rear Travel | 150 mm | 150 mm | 150 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
STEREO HYBRID ONE55 C:68X, SLT 750 is part of the Cube E Stereo model. CUBE released 6 e-bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
CUBE STEREO HYBRID ONE55 C:68X, SLX 750 2023 is the cheapest e-bike model and costs 7431$. CUBE STEREO HYBRID ONE55 C:68X, SLT 750 29 2023 is the most expensive one and costs 10617$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro e-bikes average price
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 10617$. If we compare this with the average Enduro e-bike cost we notice that the price is 121.88% more expensive.
Average weight for Enduro e-bikes
The average weight for Enduro e-bikes is 23.42 kg (51.63 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 21.9 kg (48.28 lbs), the STEREO HYBRID ONE55 C:68X, SLT 750 model is a bit lighter than average. In other words, this model is 6.94% lighter than the average Enduro e-bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The STEREO HYBRID ONE55 C:68X, SLT 750 comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the Fox Float X Factory rear shock model, which has a travel of 150mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The STEREO HYBRID ONE55 C:68X, SLT 750 2023 e-bike is equipped with 29″ carbon wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE STEREO HYBRID ONE55 C:68X, SLT 750 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the STEREO HYBRID ONE55 C:68X, SLT 750. Therefore, climbing or descending will be a breeze.
