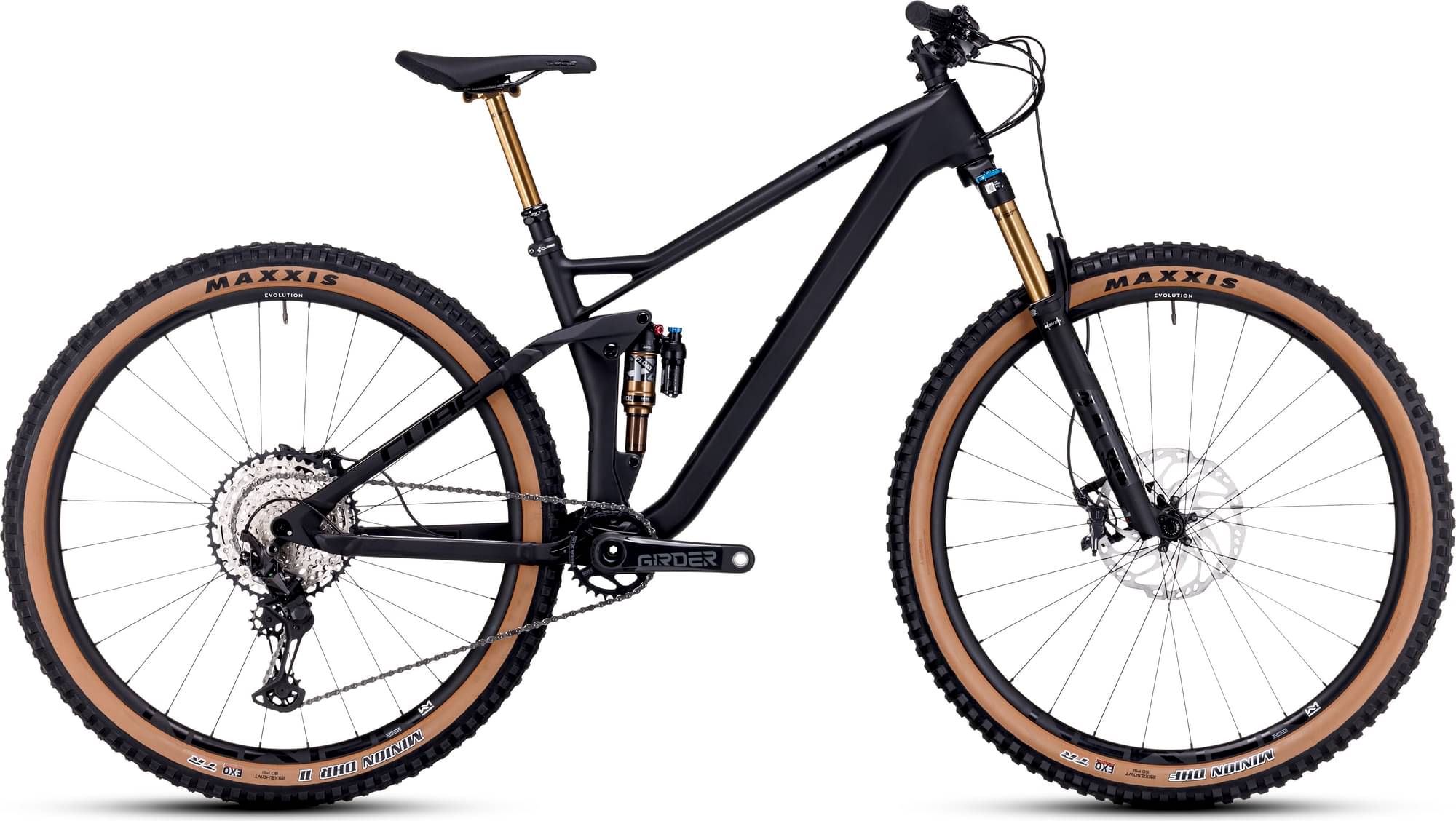

CUBE STEREO ONE22 HPC EX 29 2023
2023 Mountain
Estimate price |
4,243$
Weight | 13.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset XT, Praxis -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

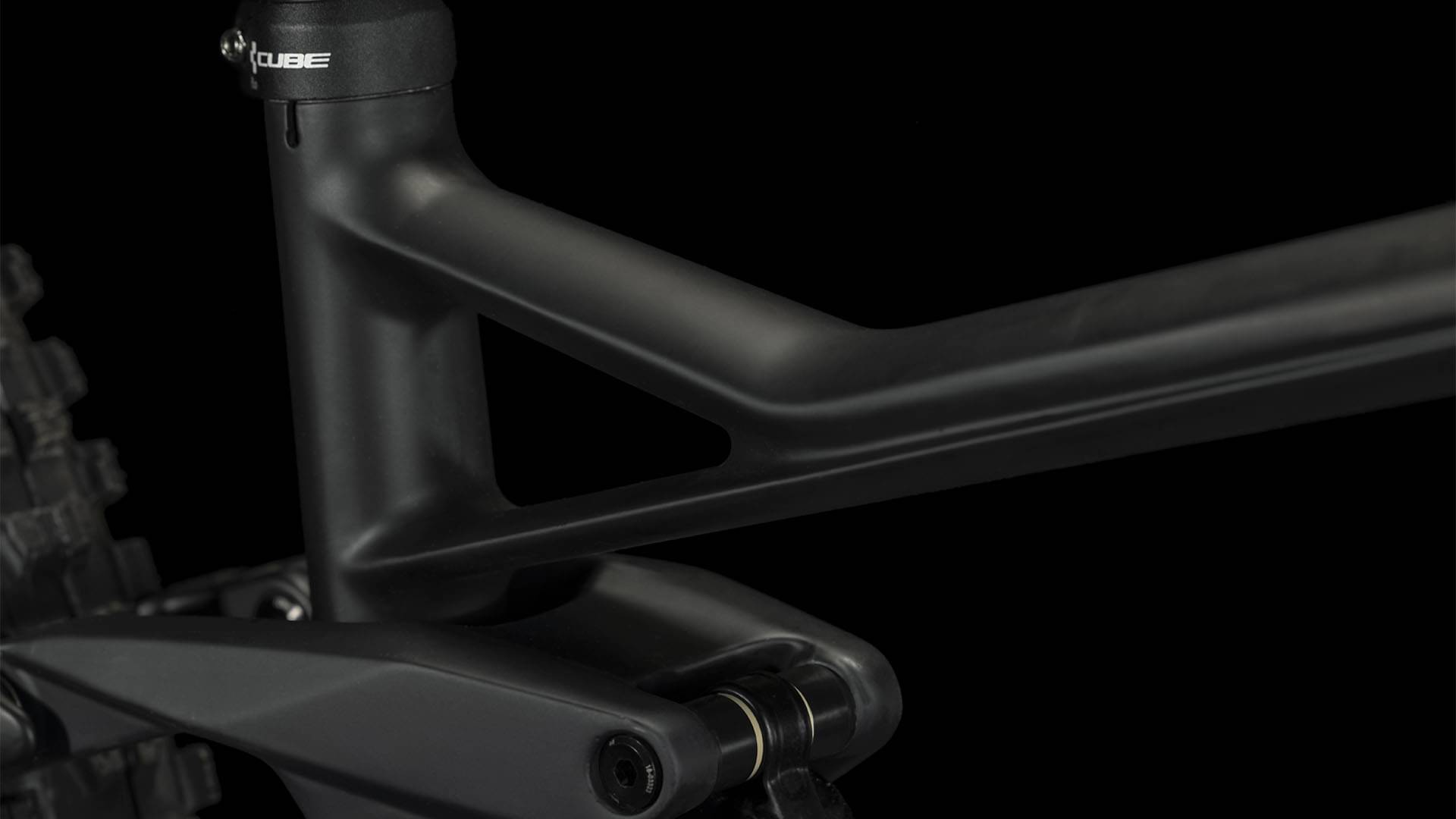

Frame
HPC Carbon Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 Rear Triangle, ATG, ETC 4-Link, Boost 148, AXH

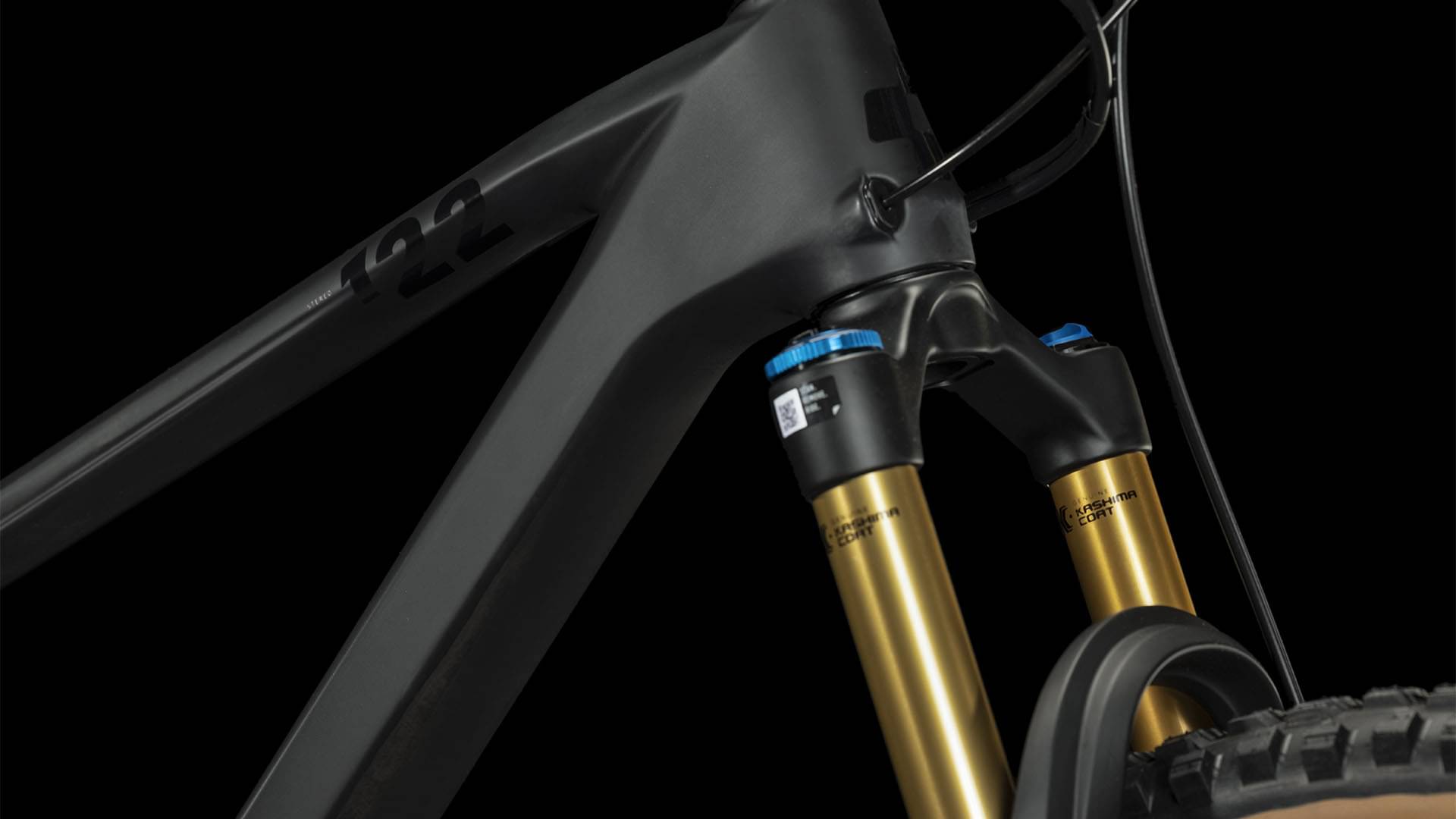

Suspension Fork
Fox 34 Float Factory FIT GRIP2, Tapered, 15x110mm, 130mm, Kashima Coated

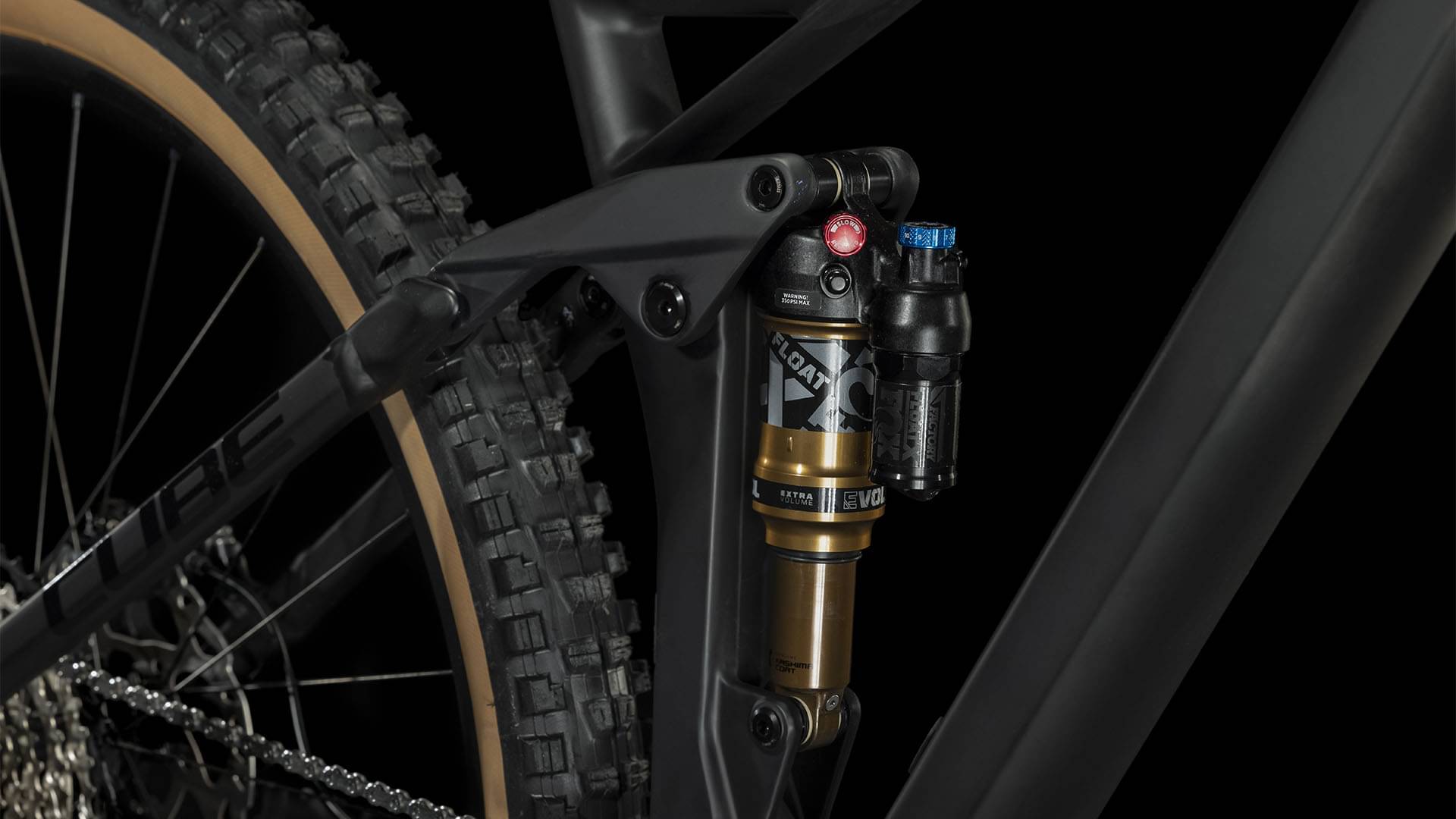

Rear Shock
Fox Float X Factory, 190x45mm, Adjustable LSC w/ 2-Pos. Lever, Kashima Coated
Drivetrain
Rear Derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shift Levers
Shimano XT SL-M8100-IR, Direct Attach
Cassette
Shimano SLX CS-M7100, 10-51T

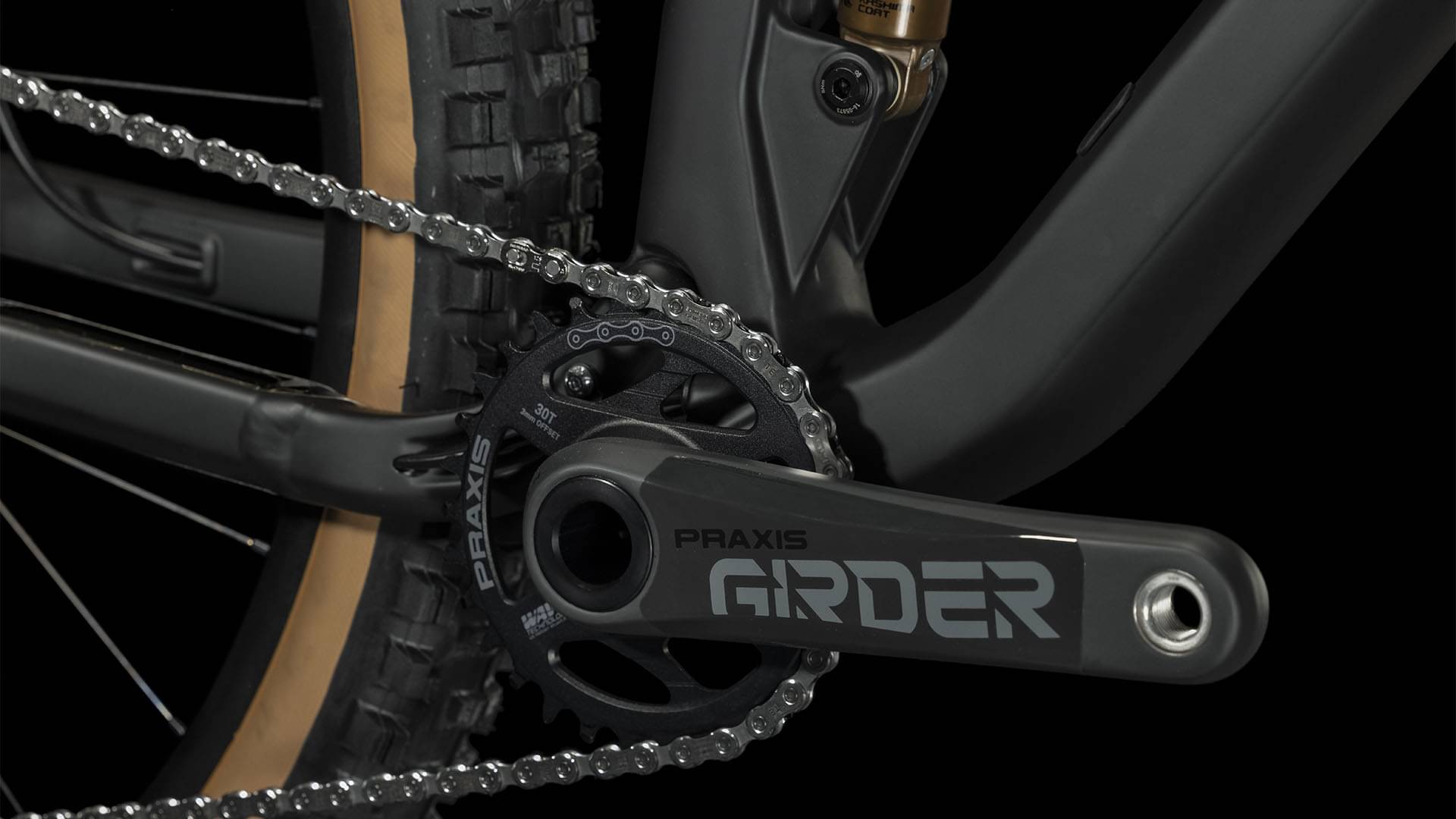

Crank
Praxis Girder Carbon, Boost, 30T, sealed Enduro™ Bearings
Bottom Bracket
Praxis PF92, 92mm Pressfit
Chain
Shimano CN-M6100
Wheels
Rims
Newmen Evolution SL A.30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
Front: Maxxis Minion DHF, MaxxTerra/EXO, Tubeless Ready, 2.5 WT, Rear: Maxxis Minion DHF, MaxxTerra/EXO, Tubeless Ready, 2.5 WT
Brakes
Brakes
Shimano XT BR-M8120/M8100, Hydr. Disc Brake (203/180)
Cockpit
Stem
Newmen Evolution SL 318.4, 31.8mm
Handlebar
Newmen Evolution SL 318.25, 760mm
Grips
SDG Thrice
Headset
VP Integrated, Top 1 1/8", Bottom 1 1/2"
Seat
Saddle
SDG Bel Air V3 Lux Alloy

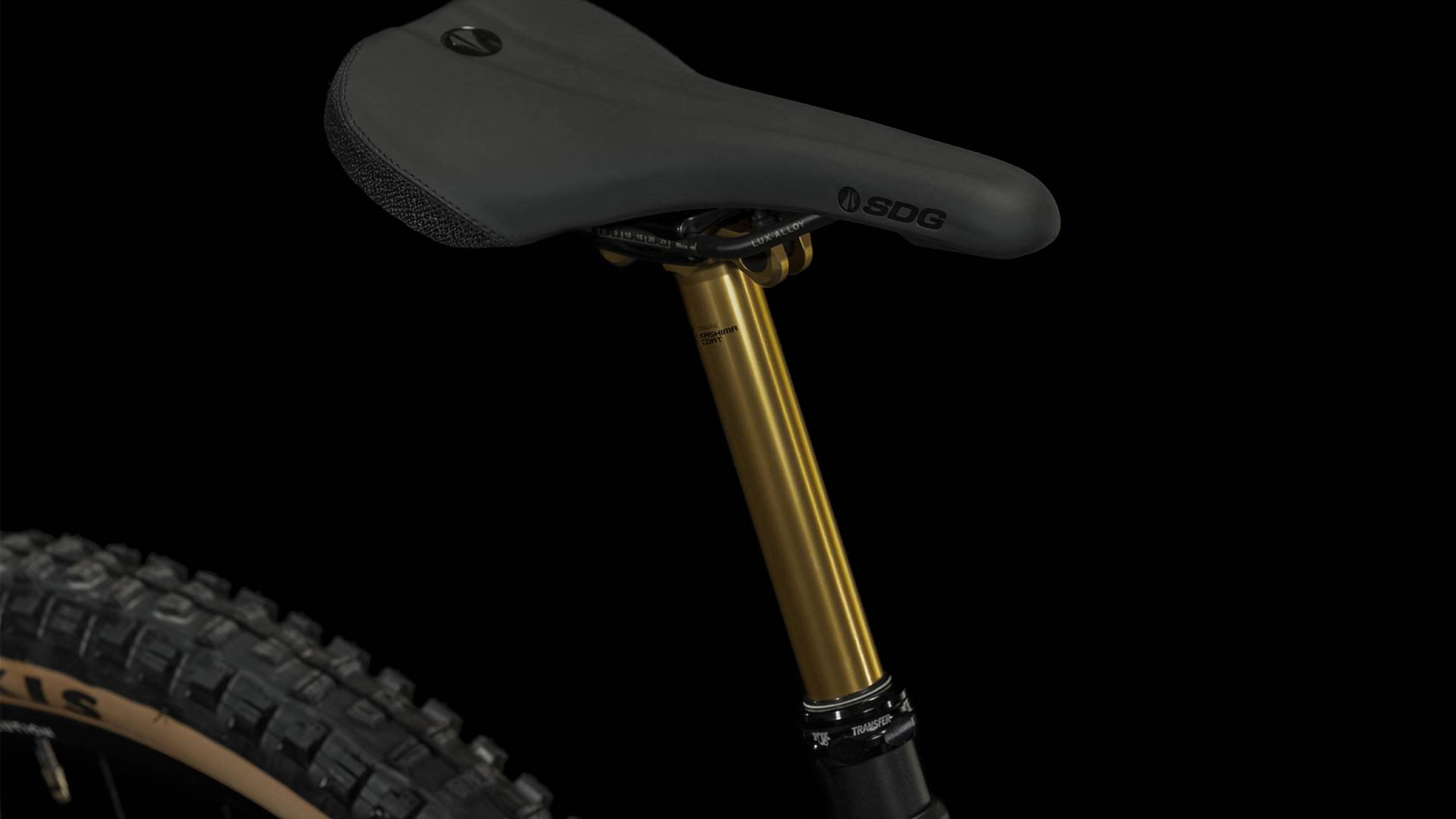

Seatpost
Fox Transfer Factory 31.6mm, Kashima Coated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.37 mm | 1.33 mm | 1.32 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 715 mm | 736 mm | 760 mm | 788 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 105 mm | 105 mm | 105 mm | 105 mm |
| Stack | 607 mm | 610 mm | 619 mm | 638 mm |
| Reach | 424 mm | 444 mm | 464 mm | 484 mm |
| Top Tube Length | 574 mm | 595 mm | 618 mm | 644 mm |
| Seat Tube Angle | 75.3 ° | 75.3 ° | 75.3 ° | 75.3 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 102 mm | 105 mm | 115 mm | 135 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1152 mm | 1173 mm | 1197 mm | 1225 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Rear Travel | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
STEREO ONE22 HPC EX 29 is a Cube Stereo model. CUBE launched 28 bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
CUBE STEREO ONE22 PRO 2023 is the most affordable bike of this model and has a price of 2123$. On the other hand, CUBE STEREO ONE77 C:68X SLT 29 2023, is the most expensive and costs 7856$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, CUBE STEREO ONE22 HPC EX 29 price was 3928$. Doing a quick comparison, we notice that STEREO ONE22 HPC EX 29 price is 42.22% higher than the average cost of a Trail bike.
Trail bikes average weight
Trail bikes have an average weight of 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
CUBE STEREO ONE22 HPC EX 29 it’s weighing 13.3 kg (29.32 lbs). At this weight, is slightly heavier than average. In short, the average Trail bike weight is 2.47% lower than this one.
Overview of components
Fork
The STEREO ONE22 HPC EX 29 comes factory-installed with the Fox Factory Float 34 fork. This has a travel range of 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this bike is Fox Float X Factory, with a travel distance of 120mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The STEREO ONE22 HPC EX 29 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The STEREO ONE22 HPC EX 29 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the STEREO ONE22 HPC EX 29. Therefore, climbing or descending will be a breeze.
