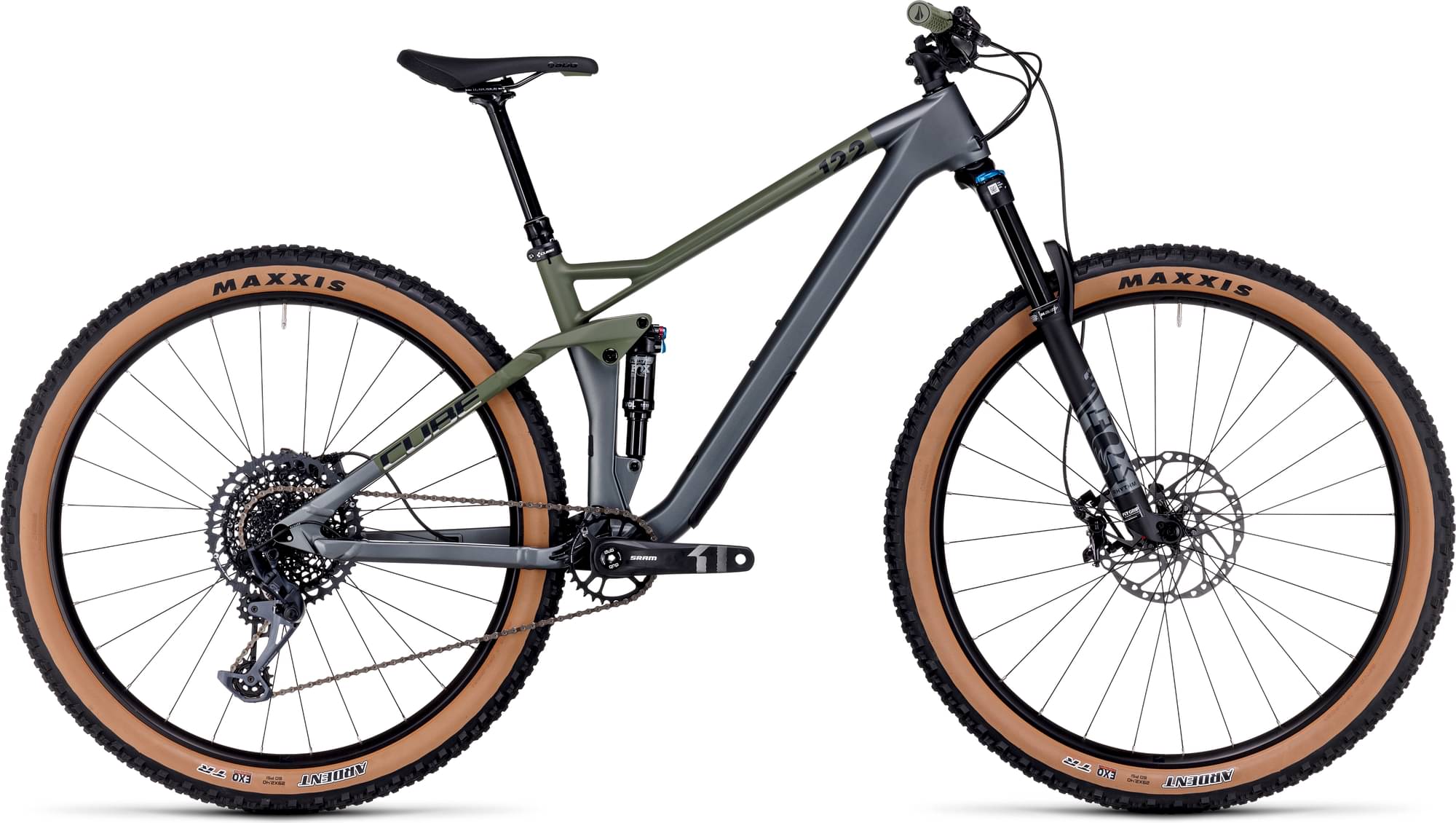

CUBE STEREO ONE22 HPC TM 2023
2023 Mountain
Estimate price |
3,669$
Weight | 13.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Rhythm Float 34
-
Groupset GX Eagle, NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

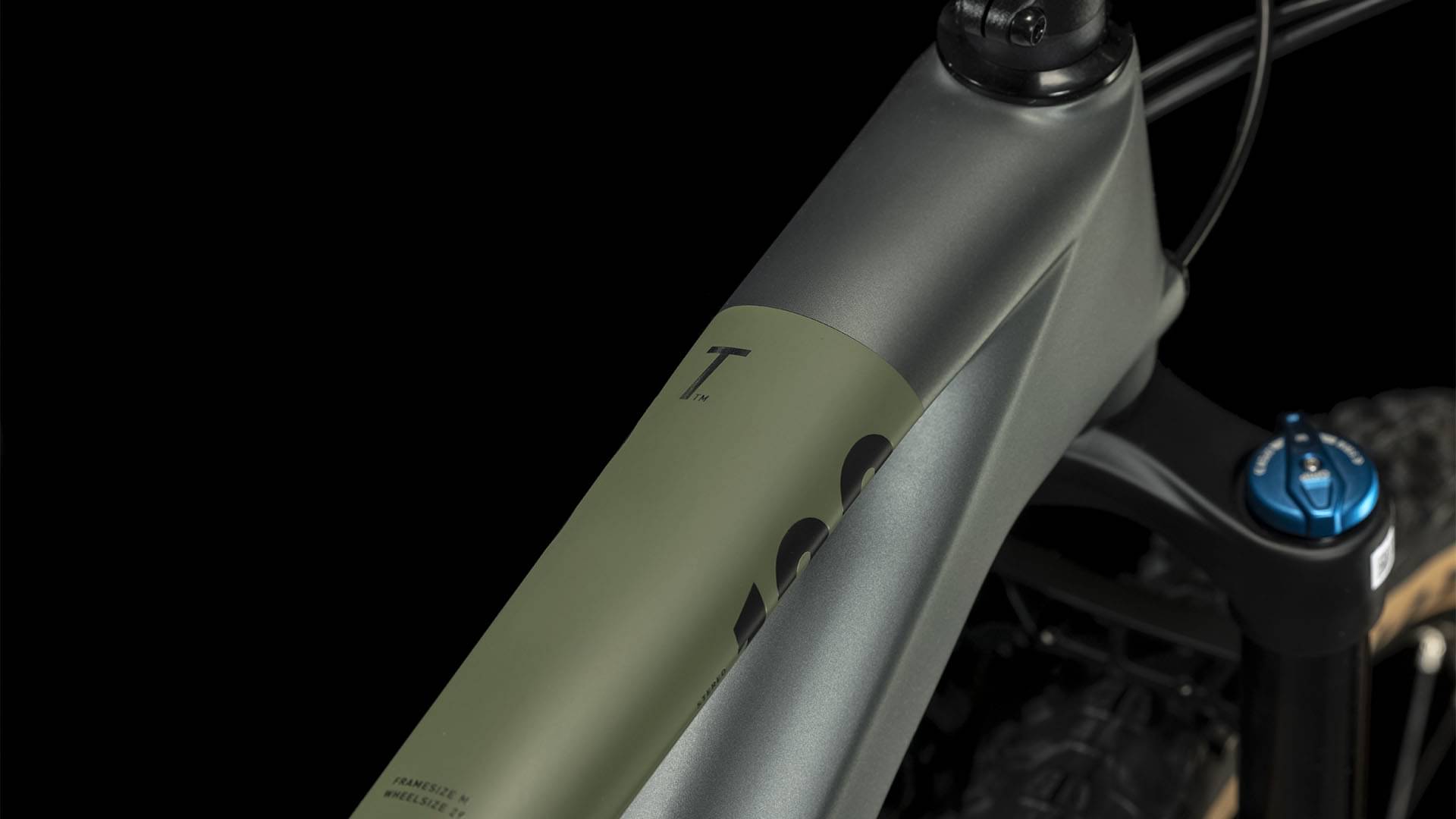

HPC Carbon Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 Rear Triangle, ATG, ETC 4-Link, Boost 148, AXH
Suspension Fork

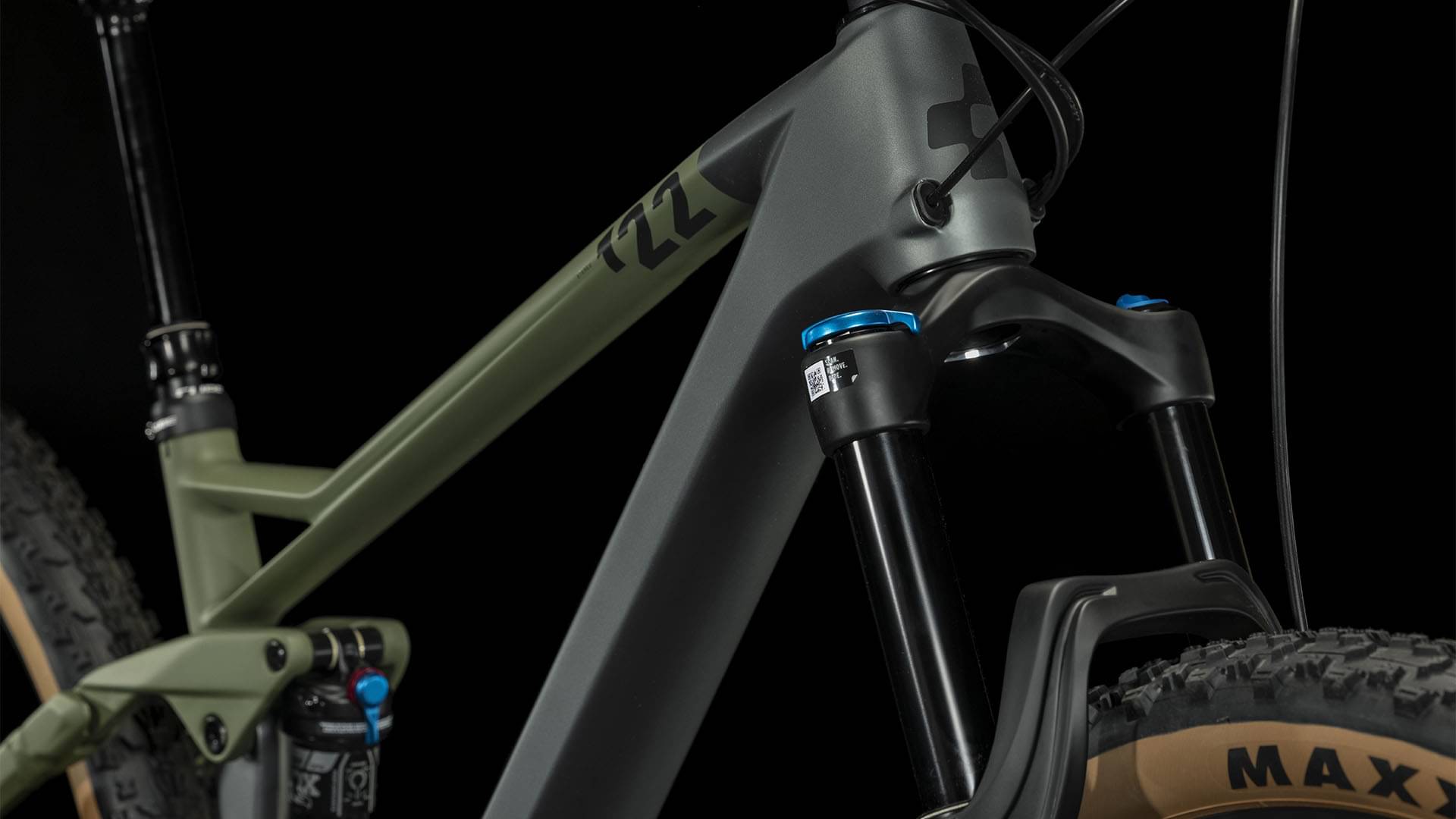

Fox 34 Float Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, 130mm
Rear Shock

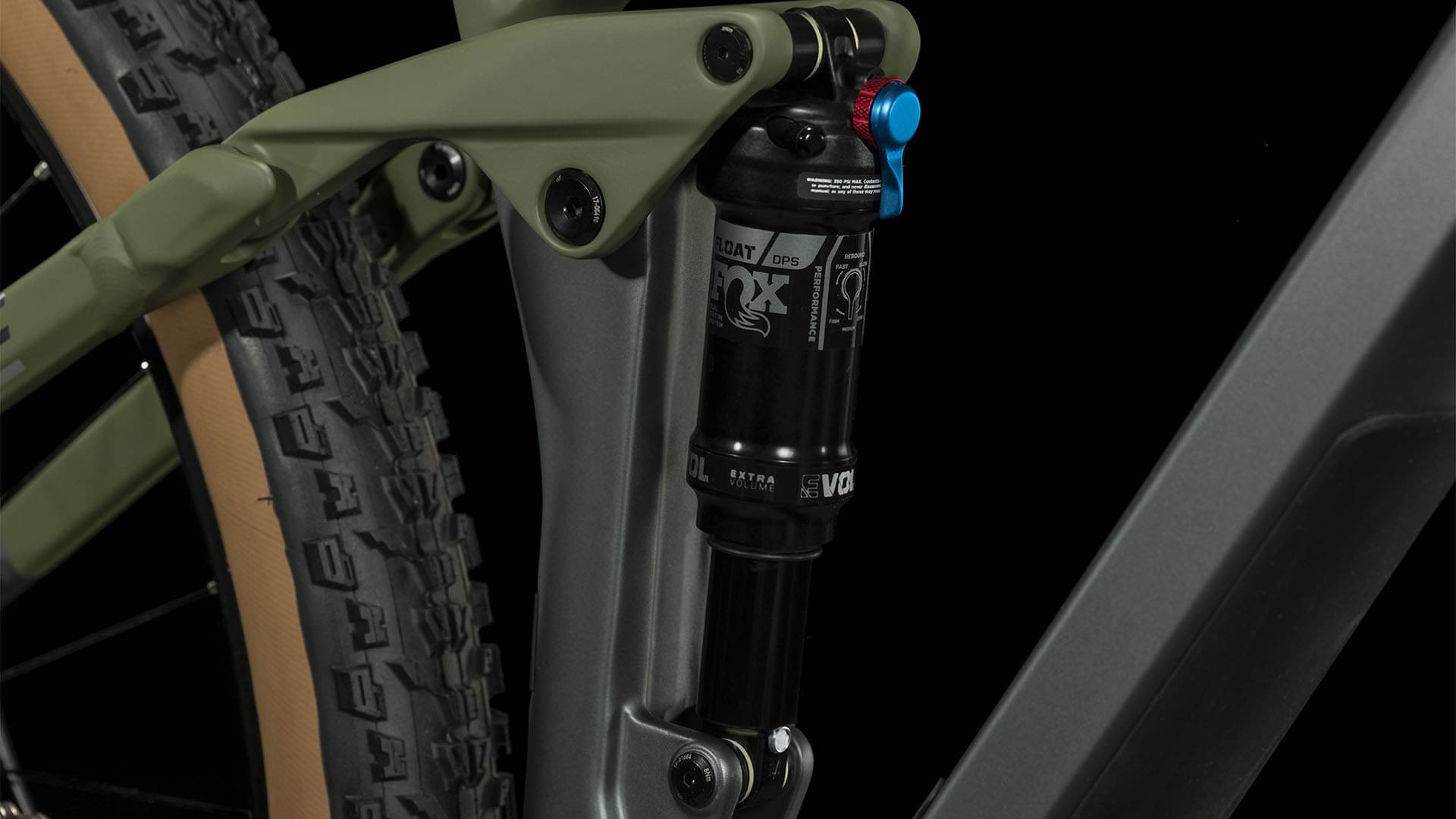

Fox Float DPS, 190x45mm, Open/Medium/Firm Mode
Drivetrain

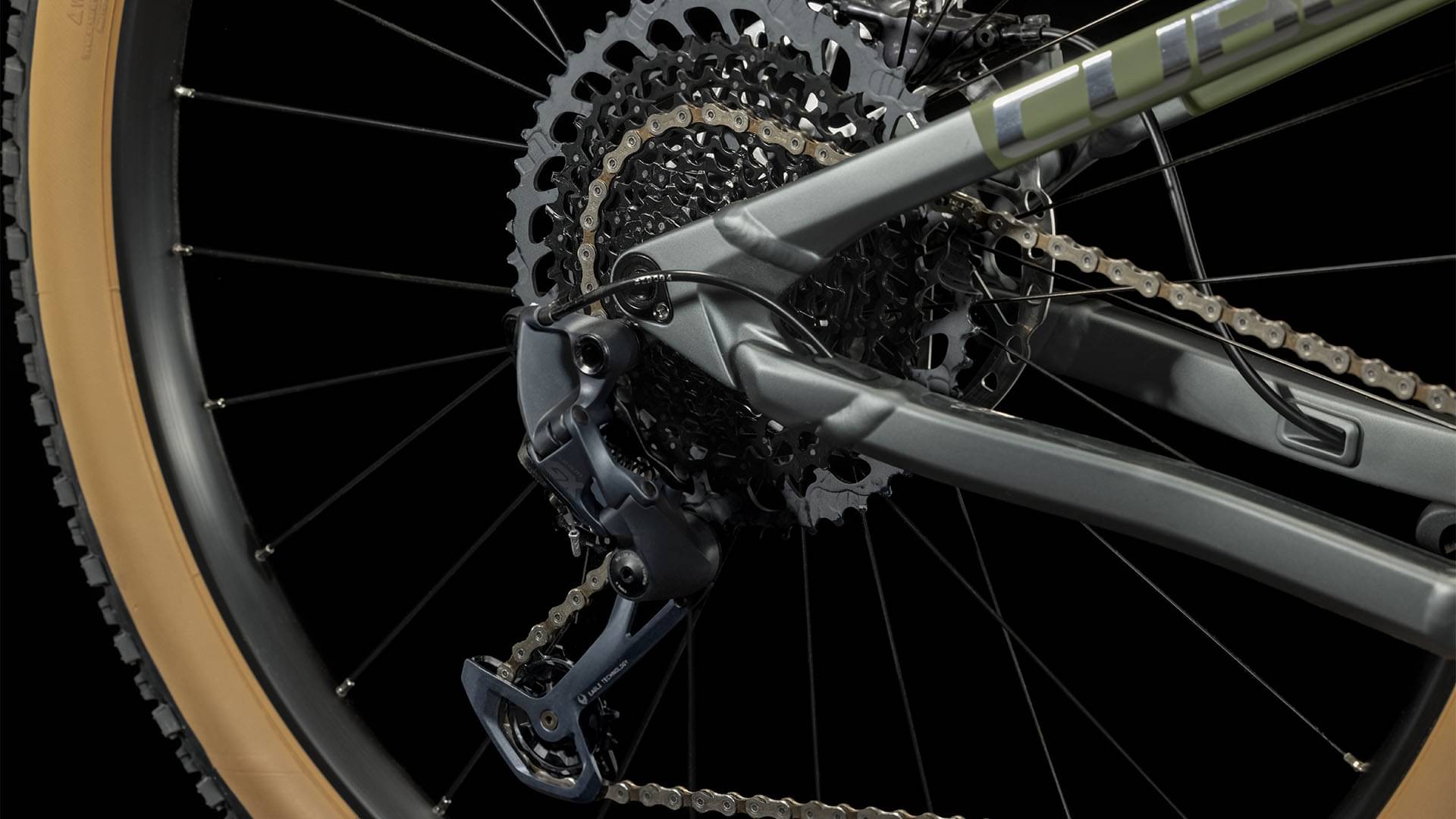

Rear Derailleur
SRAM GX Eagle™, 12-Speed
Shift Levers
SRAM NX Eagle™ Trigger
Cassette
SRAM XG-1275 Eagle™, 10-52T
Crank
SRAM X1 1000 Eagle™ DUB 30T, Boost
Bottom Bracket
SRAM DUB MTB, 92mm Pressfit
Chain
SRAM SX Eagle™
Wheels
Rims
Fulcrum Red Metal 500, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready
Tires
Maxxis Ardent, EXO, Tubeless Ready, 2.4
Brakes
Brakes
Shimano XT BR-M8120/M8100, Hydr. Disc Brake (203/180)
Cockpit
Stem
Newmen Evolution SL 318.4, 31.8mm
Handlebar
Newmen Evolution SL 318.25, 760mm
Grips
SDG Thrice
Headset
VP Integrated, Top 1 1/8", Bottom 1 1/2"
Seat
Saddle

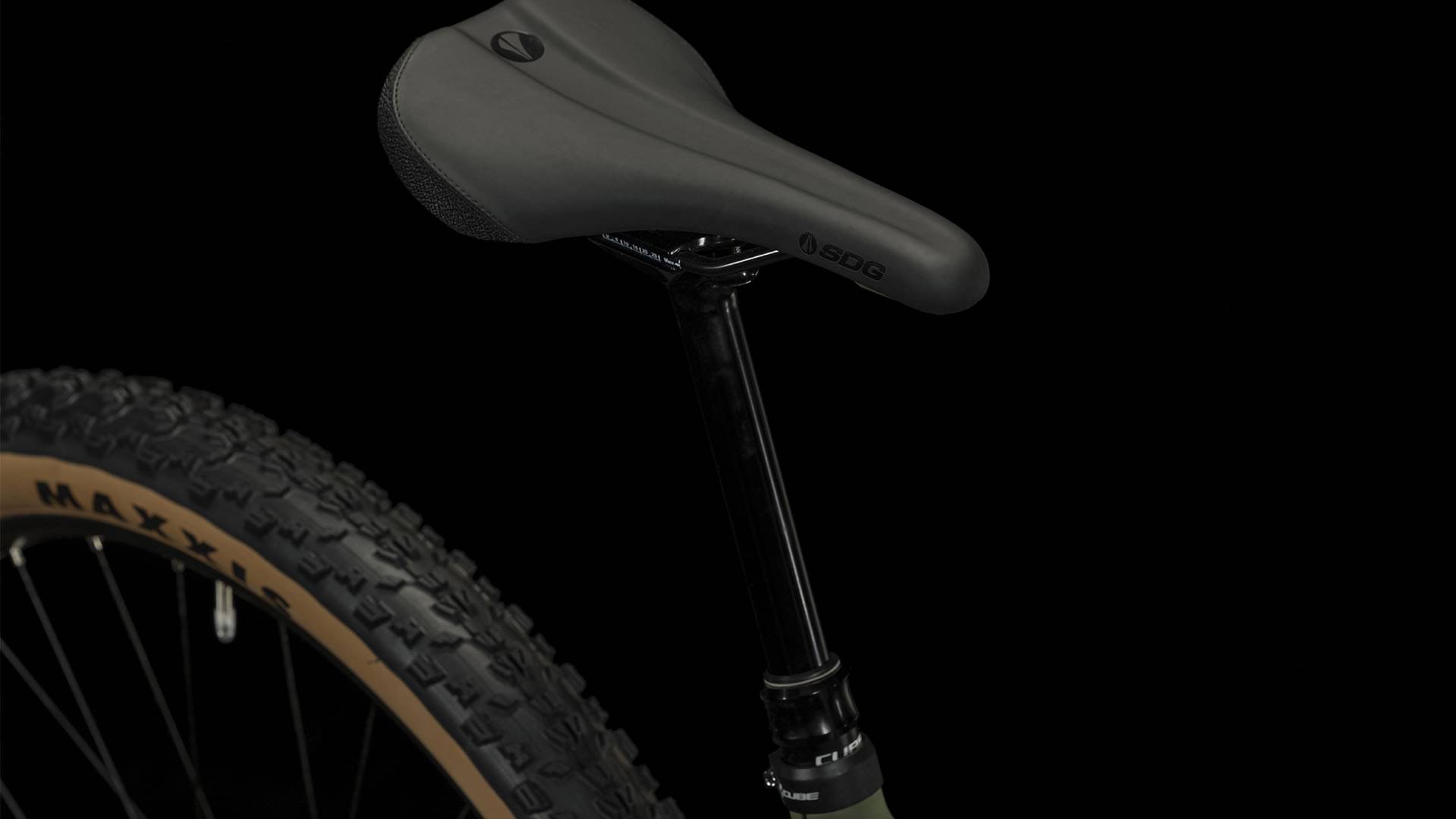

SDG Bel Air V3
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.37 mm | 1.33 mm | 1.32 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 715 mm | 736 mm | 760 mm | 788 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 105 mm | 105 mm | 105 mm | 105 mm |
| Stack | 607 mm | 610 mm | 619 mm | 638 mm |
| Reach | 424 mm | 444 mm | 464 mm | 484 mm |
| Top Tube Length | 574 mm | 595 mm | 618 mm | 644 mm |
| Seat Tube Angle | 75.3 ° | 75.3 ° | 75.3 ° | 75.3 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 102 mm | 105 mm | 115 mm | 135 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1152 mm | 1173 mm | 1197 mm | 1225 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Rear Travel | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
STEREO ONE22 HPC TM belongs to the Cube Stereo model. 33 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
CUBE STEREO ONE22 PRO 2023 is the cheapest bike model and costs 2117$. CUBE STEREO ONE77 C:68X SLT 29 2023 is the most expensive one and costs 7835$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 3387$. Comparing this to the average Trail bike price, we see that the price is 22.63% more expensive.
Trail bikes average weight
Trail bikes have an average weight of 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
STEREO ONE22 HPC TM weighs 13.5 kg (29.76 lbs) and is slightly heavier than the average. In other words, this model is 4.01% heavier than the average Trail bike.
STEREO ONE22 HPC TM components
Fork
The STEREO ONE22 HPC TM comes factory-installed with the Fox Rhythm Float 34 fork. This has a travel range of 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this bike is Fox Float DPS, with a travel distance of 120mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The STEREO ONE22 HPC TM 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The STEREO ONE22 HPC TM has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The CUBE model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
