Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Travel Rear 120mm -
Fork RockShox Sektor
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Sektor RL Air, 15mm x 110mm
Rear Shock
Manitou Radium Expert RL, rebound adjust, lockout, 184mm x 44mm, 30x8mm upper mount, 22x8mm lower mount
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DSGS, Shadow Plus, 11-speed
Front Derailleur
Shimano XT FD-M8020-D, side swing
Shift Levers
Shimano SLX SL-M7000-I, direct attach
Cassette
Shimano SLX CS-M7000, 11-42 tooth, 11-speed
Crank
Shimano FC-MT600, 175mm
Bottom Bracket
Press-fit
Chain
KMC X11
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
Answer Atac AM wheelset, 15mm x 110mm front, 12mm x 148mm rear
Rear Hub
Answer Atac AM wheelset, 15mm x 110mm front, 12mm x 148mm rear
Rims
Answer Atac AM wheelset, tubeless ready
Spokes
Answer Atac AM wheelset
Tires
Schwalbe Nobby Nic, Addix Performance, kevlar, 29 x 2.25" (27.5 x 2.25" for 13.5" and 16" frame)
Brakes
Brakes
Shimano XT BR-M8000 with 180mm rotors (front and rear)
Brake Levers
Shimano XT BR-M8000
Cockpit
Stem
Cube Performance Pro, 31.8mm diameter
Handlebar
Cube Rise Trail Pro, 720mm width
Grips
Cube Natural Fit Tour
Headset
FSA 1.5E ZS, zero stack
Seat
Saddle
Cube Natural Fit Active WS
Seatpost
Cube Dropper Post, handlebar lever, 400mm x 125mm (340mm x 100mm for 13.5" frame)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13.5" | 13.5" | 17" | 19" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.41 mm | 1.46 mm | 1.43 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 313 mm | 313 mm |
| Front Center | 659 mm | 680 mm | 700 | 720 mm |
| Rake | 44 mm | 44 mm | 51 mm | 51 mm |
| Trail | 93 mm | 93 mm | 85 mm | 85 mm |
| Stack | 580 mm | 584 mm | 616 mm | 626 mm |
| Reach | 395 mm | 414 mm | 422 mm | 438 mm |
| Top Tube Length | 549 mm | 569.5 mm | 579 mm | 598 mm |
| Seat Tube Angle | 74.74 ° | 74.74 ° | 75.23 ° | 75.23 ° |
| Seat Tube Length | 335 mm | 375 mm | 395 mm | 445 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 105 mm | 110 mm | 110 mm | 120 mm |
| Chainstay Length | 431 mm | 431 mm | 449 mm | 449 mm |
| Wheelbase | 1089 mm | 1110 mm | 1146 mm | 1166 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 42 mm | 42 mm |
| Wheels | 27" | 27" | 27" | 27" |

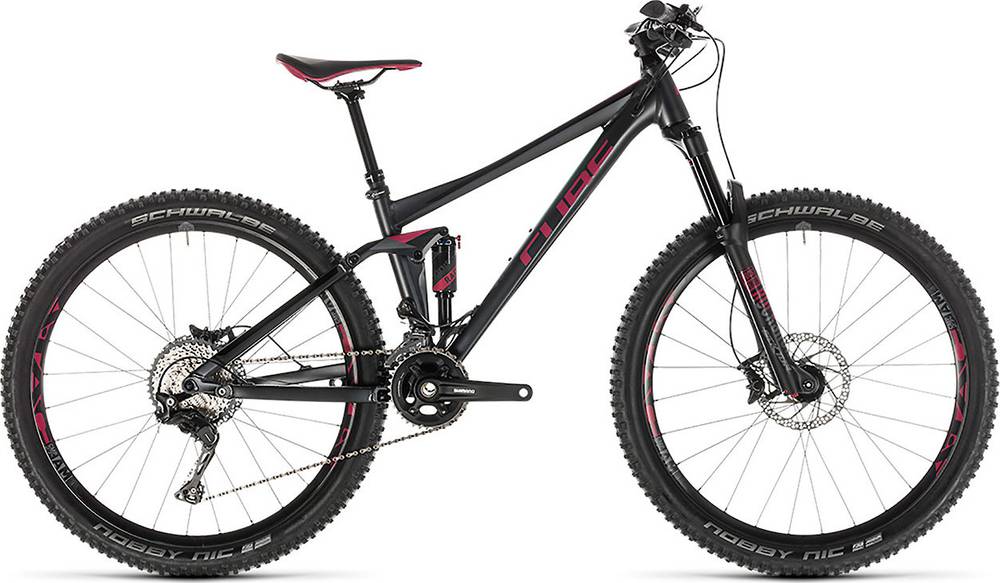

About this model
Sting 120 WS Pro completes the Cube Sting model. 27 bikes variations carry this model name so far. You can easily view all of the Cube Sting bikes models from 2019, here.
Model range prices
CUBE STING WS 120 Exc 2019 is the most affordable bike of this model and has a price of 1485$. On the other hand, CUBE STING WS 140 HPC SL 27.5 2019, is the most expensive and costs 3715$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 13.3 kg (29.32 lbs), Cube bike is slightly heavier than average. In conclusion, the average Trail bike weighs 2.47% less than Sting 120 WS Pro.
Overview of components
Fork
The fork installed on this bike is the RockShox Sektor model. The travel on this model is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The Sting 120 WS Pro has a rear shock with a travel of 120mm. The model Manitou Radium Expert RL is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The Sting 120 WS Pro 2019 bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Dropper post
A dropper post is included with the Sting 120 WS Pro. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
