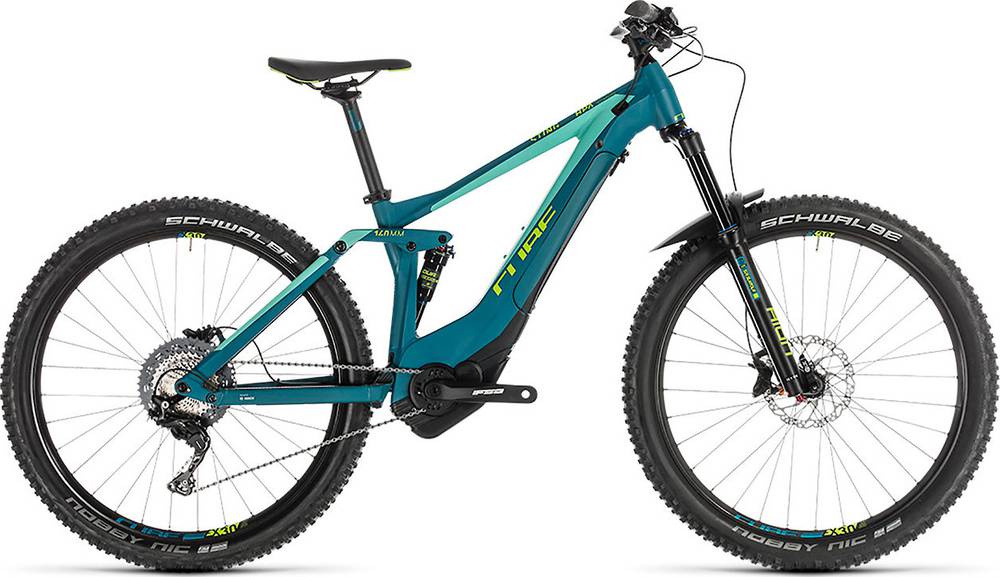

CUBE Sting Hybrid 140 Race 500 2019
2019 E-bike
Weight | 23.9 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork SunTour AION
-
Groupset XT, SLX -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube 500 with Bosch 2A charger -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
SR Suntour Aion RC, 15mm x 110mm
Rear Shock
SR Suntour DUAir LOR8, 190mm x 50mm, 30x8mm upper and lower mounts
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DGS, Shadow Plus, 11-speed
Front Derailleur
N/A
Shift Levers
Shimano SLX SL-M7000
Cassette
Shimano SLX CS-M7000, 11-46 tooth, 11-speed
Crank
FSA CK-745, 170mm
Chain
KMC X11e, EcoProTeQ
Chain Guide
N/A
Pedals
Cube PP MTB
Wheels
Front Hub
Front: Shimano HB-MT400-B, Boost, Center Lock, 15QR x 110mm, Rear: Shimano FH-MT400-B, Boost, Center Lock, 12mm x 148mm
Rear Hub
Front: Shimano HB-MT400-B, Boost, Center Lock, 15QR x 110mm, Rear: Shimano FH-MT400-B, Boost, Center Lock, 12mm x 148mm
Rims
Cube EX30, 32 hole, tubeless ready
Tires
Schwalbe Nobby Nic, Addix Performance, 27.5 x 2.60"
Brakes
Brakes
Shimano BR-MT520/BR-MT500 with 180mm rotors (front and rear)
Brake Levers
Shimano BR-MT520/BR-MT500
Cockpit
Stem
Newmen Evolution 318.4, 31.8mm diameter
Handlebar
Newmen Evolution 318.20, 760mm width
Grips
Cube Natural Fit All Terrain
Headset
FSA 1.5B ZS, zero stack
Seat
Saddle
Cube Natural Fit Active WS
Seatpost
Newmen Evolution
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500 with Bosch 2A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.38 mm | 1.39 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 690 mm | 710 mm | 732 mm | 752 mm |
| Rake | 43 mm | 43 mm | 44 mm | 42 mm |
| Trail | 102 mm | 102 mm | 101 mm | 103 mm |
| Stack | 604 mm | 604 mm | 614 mm | 635 mm |
| Reach | 407 mm | 427 mm | 444 mm | 457 mm |
| Top Tube Length | 577 mm | 597 mm | 617 mm | 635 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 67.3 ° | 67.3 ° | 67.3 ° | 67.3 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 150 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1170 mm | 1190 mm | 1212 mm | 1232 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Wheels | 27" | 27" | 27" | 27" |
Model Overview
Sting Hybrid 140 Race 500 completes the Cube E Sting model. There are 17 e-bikes that carry this model name. Take a sneak peek at all Cube E Sting e-bikes models from 2019, by clicking here.
Model range prices
CUBE STING HYBRID 120 Race 500 2019 is the cheapest e-bike model and costs 3397$. CUBE STING HYBRID 120 HPC SL 500 KIOX 2019 is the most expensive one and costs 4352$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail e-bikes
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Average weight for Trail e-bikes
If we make a quick analysis of the average weight of a Trail e-bike, we get 23.7 kg (52.25 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 23.9 kg (52.69 lbs), the Sting Hybrid 140 Race 500 model is slightly heavier than average. To sum up, it’s 0.84% heavier than the average weight of Trail e-bikes.
Overview of components
Fork
This e-bike has the SunTour AION fork installed. The fork’s travel is 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The Sting Hybrid 140 Race 500 has a rear shock with a travel of 140mm. The model SR Suntour DUAir LOR8 is the one installed in this e-bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The Sting Hybrid 140 Race 500 2019 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Cube Sting Hybrid 140 Race 500 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
