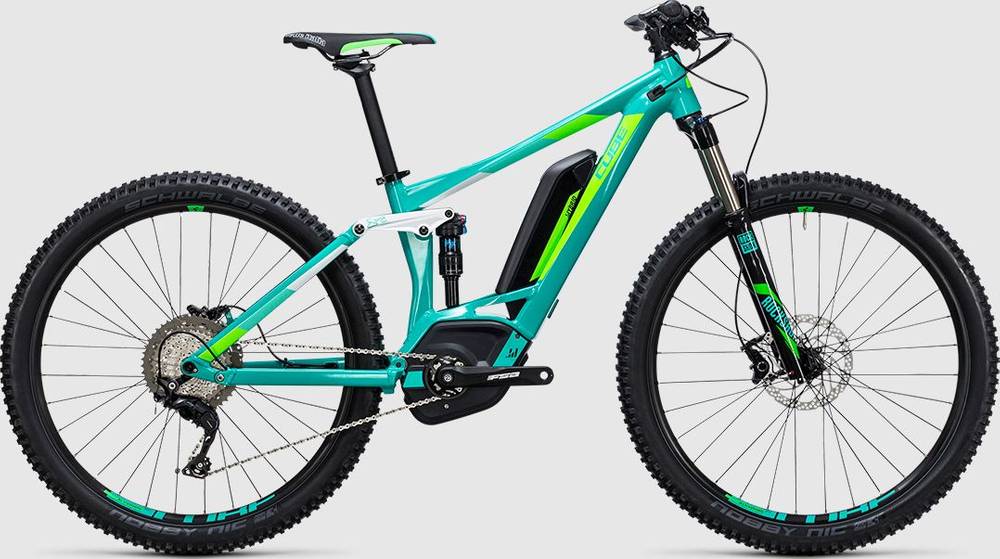

CUBE STING WLS HYBRID 120 SL 500 27.5 2017
2017 E-bike
Weight | 21.8 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Travel Rear 120mm -
Fork RockShox Recon Silver TK
-
Groupset XT, FSA -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HPA Ultralight, Advanced Hydroform, Triple Butted, ETC 4-Link, ATG, Boost148mm, Tuned Drive Position, AXH
Suspension Fork
Rock Shox Recon Silver TK Air, 120mm, PopLoc
Rear Shock
Fox Float DPS Performance, 184x44mm, Open/Medium/Firm Mode, EVOL Air Sleeve
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed, Direct Mount
Shift Levers
Shimano XT SL-M8000-B-I, Direct Attach
Cassette
Shimano XT CS-M8000, 11-46T
Crank
FSA CK-745, 16T
Chain
KMC X11
Wheels
Front Hub
Shimano Deore HB-M618, QR15
Rear Hub
Shimano Deore FH-M618-B, X12, Boost
Rims
CUBE EX23, 32H, Disc, Tubeless Ready
Tires
Schwalbe Nobby Nic Kevlar 2.35
Brakes
Brakes
Shimano Deore BR-M615, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar Pro, 740mm
Grips
CUBE Natural Fit Tour
Headset
FSA Orbit Z-t, Top Zero-Stack 1 1/8" (OD44mm), Bottom Integrated 1 1/2"
Seat
Saddle
Selle Italia WLS Performance
Seatpost
CUBE Performance Post, 31.6mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" |
|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.4 mm |
| Bottom Bracket Height | 335 mm | 335 mm |
| Front Center | 691 mm | 712 mm |
| Rake | 60 mm | 61 mm |
| Trail | 76 mm | 74 mm |
| Stack | 577 mm | 586 mm |
| Reach | 402 mm | 419 mm |
| Top Tube Length | 567 mm | 587 mm |
| Seat Tube Angle | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 420 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° |
| Head Tube Length | 110 mm | 120 mm |
| Chainstay Length | 465 mm | 465 mm |
| Wheelbase | 1155 mm | 1176 mm |
| Bottom Bracket Drop | 20 mm | 20 mm |
| Rear Travel | 120 mm | 120 mm |
| Wheels | 27" | 27" |
Model Overview
STING WLS HYBRID 120 SL 500 27.5 is a Cube E Sting model. CUBE released 17 e-bikes variations of this model so far. Take a sneak peek at all Cube E Sting e-bikes models from 2017, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail e-bikes average price
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Trail e-bikes average weight
Trail e-bikes have an average weight of 23.7 kg (52.25 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
a bit lighter than average, STING WLS HYBRID 120 SL 500 27.5 has a weight of 21.8 kg (48.06 lbs). To sum up, it’s 8.72% lighter than the average weight of Trail e-bikes.
STING WLS HYBRID 120 SL 500 27.5 components
Fork
The STING WLS HYBRID 120 SL 500 27.5 comes factory-installed with the RockShox Recon Silver TK fork. This has a travel range of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The STING WLS HYBRID 120 SL 500 27.5 has a rear shock with a travel of 120mm. The model Fox Float DPS Performance is the one installed in this e-bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The wheels on STING WLS HYBRID 120 SL 500 27.5 are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
