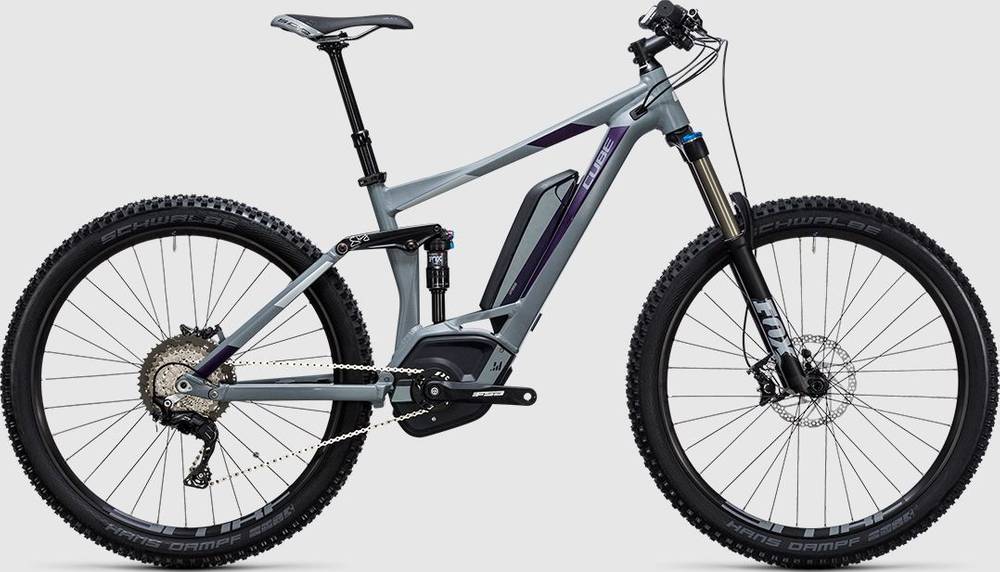

CUBE STING WLS HYBRID 140 SL 500 27.5 2017
2017 E-bike
Weight | 22.6 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Rhythm Float 34
-
Groupset XT, FSA -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HPA Ultralight, Advanced Hydroform, Triple Butted, ETC 4-Link, ATG, Boost148mm, Tuned Drive Position, AXH
Suspension Fork
Fox 34 Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, Boost 15QR, 140mm
Rear Shock
Fox Float DPS Performance, 190x50mm, Open/Medium/Firm Mode, EVOL Air Sleeve
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed, Direct Mount
Shift Levers
Shimano XT SL-M8000-I, Direct Attach
Cassette
Shimano XT CS-M8000, 11-46T
Crank
FSA CK-745, 16T
Chain
KMC X11e, EcoProTeQ
Wheels
Front Hub
Shimano XT HB-M8010-B, Centerlock, QR15, Boost
Rear Hub
Shimano XT FH-M8010-B, X12, Boost
Rims
CUBE EX25, 32H, Disc, Tubeless Ready
Tires
Schwalbe Hans Dampf Kevlar 2.35, TrailStar, Tubeless Easy
Brakes
Brakes
Shimano XT BR-M8000, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar Pro, 740mm
Grips
CUBE Race Grip, 1-Clamp
Headset
FSA Orbit Z-t, Top Zero-Stack 1 1/8" (OD44mm), Bottom Integrated 1 1/2"
Seat
Saddle
SDG Allure Steel
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm, 458x150mm (400x120mm for smallest frame size)
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" |
|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.43 mm |
| Bottom Bracket Height | 340 mm | 340 mm |
| Front Center | 690 mm | 711 mm |
| Rake | 45 mm | 45 mm |
| Trail | 100 mm | 100 mm |
| Stack | 586 mm | 595 mm |
| Reach | 399 mm | 416 mm |
| Top Tube Length | 567 mm | 587 mm |
| Seat Tube Angle | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 420 mm |
| Head Tube Angle | 67.3 ° | 67.3 ° |
| Head Tube Length | 110 mm | 120 mm |
| Chainstay Length | 465 mm | 465 mm |
| Wheelbase | 1155 mm | 1176 mm |
| Bottom Bracket Drop | 15 mm | 15 mm |
| Rear Travel | 140 mm | 140 mm |
| Wheels | 27" | 27" |
Model Overview
STING WLS HYBRID 140 SL 500 27.5 belongs to the Cube E Sting model. 17 e-bikes variations carry this model name so far. Take a sneak peek at all Cube E Sting e-bikes models from 2017, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Average weight for Trail e-bikes
If we make a quick analysis of the average weight of a Trail e-bike, we get 23.7 kg (52.25 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 22.6 kg (49.82 lbs), the STING WLS HYBRID 140 SL 500 27.5 model is slightly lighter than average. In short, the average Trail e-bike weight is 4.87% higher than this one.
Overview of components
Fork
CUBE STING WLS HYBRID 140 SL 500 27.5 2017 e-bike is equipped with the Fox Rhythm Float 34 fork, and has 140mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this e-bike is Fox Float DPS Performance, with a travel distance of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The wheels on STING WLS HYBRID 140 SL 500 27.5 are the 27.5″ aluminum type. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. CUBE STING WLS HYBRID 140 SL 500 27.5 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Dropper post
The CUBE model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
