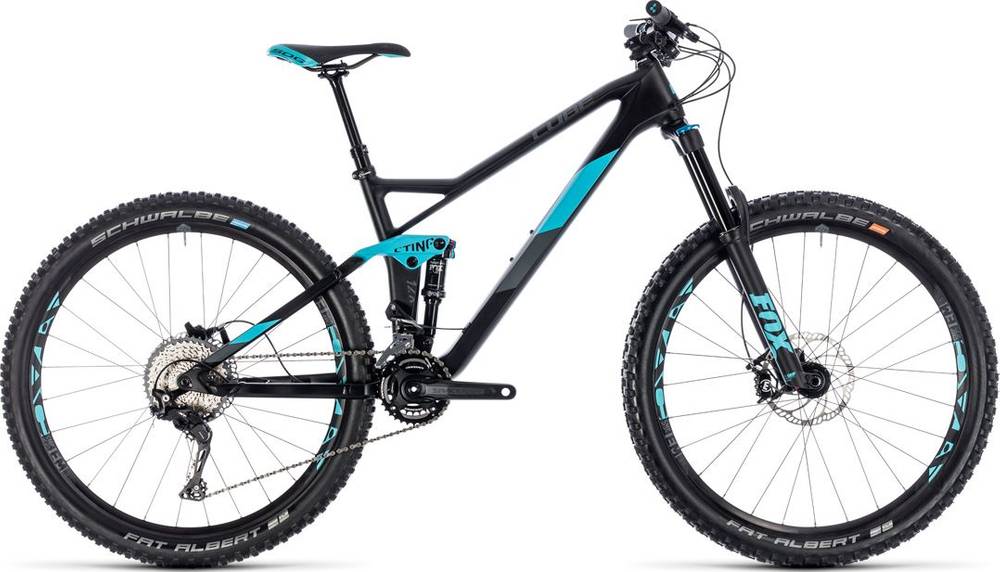

CUBE STING WS 140 HPC Race 27.5 2018
2018 Mountain
Weight | 13.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Rhythm Float 34
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HPC Carbon Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 Rear Triangle, ATG, ETC 4-Link, ISCG Mount, Boost148, AXH
Suspension Fork
Fox 34 Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, 150mm
Rear Shock
Fox Float DPS EVOL, 185x52.5mm Trunnion Mount, Open/Medium/Firm Mode
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DSGS, ShadowPlus, 11-Speed
Front Derailleur
Shimano SLX FD-M7025-D, Direct Mount, Down Swing
Shift Levers
Shimano XT SL-M8000-B-I, Direct Attach
Cassette
Shimano SLX CS-M7000, 11-42T
Crank
Race Face Aeffect SL 34x24T, 170mm (18":175mm)
Chain
KMC X11
Wheels
Rims
Answer Atac MA, 15x110mm/12x148mm, Tubeless Ready
Tires
Schwalbe Fat Albert, Addix Soft, Kevlar, Tubeless Easy, 2.35
Brakes
Brakes
Magura MT Trail Custom, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Enduro Stem, 31.8mm
Handlebar
CUBE Rise Trail Bar Pro, 740mm
Grips
CUBE Race SL Grip 29.5, 1-Clamp
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seat
Saddle
SDG Allure
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm, 13.5": 343x80mm, 16": 360x100mm, 18": 400x120mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13" | 16" | 18" |
|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.42 mm | 1.37 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm |
| Front Center | 694 mm | 716 mm | 740 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 107 mm | 107 mm | 107 mm |
| Stack | 588 mm | 593 mm | 602 mm |
| Reach | 399 mm | 419 mm | 439 mm |
| Top Tube Length | 547.3 mm | 568.8 mm | 591.8 mm |
| Seat Tube Angle | 75.2 ° | 75.2 ° | 75.2 ° |
| Seat Tube Length | 350 mm | 370 mm | 420 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 102 mm | 107 mm | 117 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1120 mm | 1142 mm | 1166 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm |
| Rear Travel | 140 mm | 140 mm | 140 mm |
| Wheels | 27" | 27" | 27" |
Model Overview
STING WS 140 HPC Race 27.5 is a Cube Sting model. There are 27 bikes that carry this model name. You can easily view all of the Cube Sting bikes models from 2018, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
CUBE STING WS 140 HPC Race 27.5 it’s weighing 13.6 kg (29.98 lbs). At this weight, is slightly heavier than average. In conclusion, the average Trail bike weighs 4.78% less than STING WS 140 HPC Race 27.5.
STING WS 140 HPC Race 27.5 components
Fork
The Fox Rhythm Float 34 is included from the factory. It has a travel distance of 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The STING WS 140 HPC Race 27.5 has a rear shock with a travel of 140mm. The model Fox Float DPS EVOL is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
As for the wheels, CUBE STING WS 140 HPC Race 27.5 2018, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The STING WS 140 HPC Race 27.5 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Dropper post
CUBE STING WS 140 HPC Race 27.5 includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
