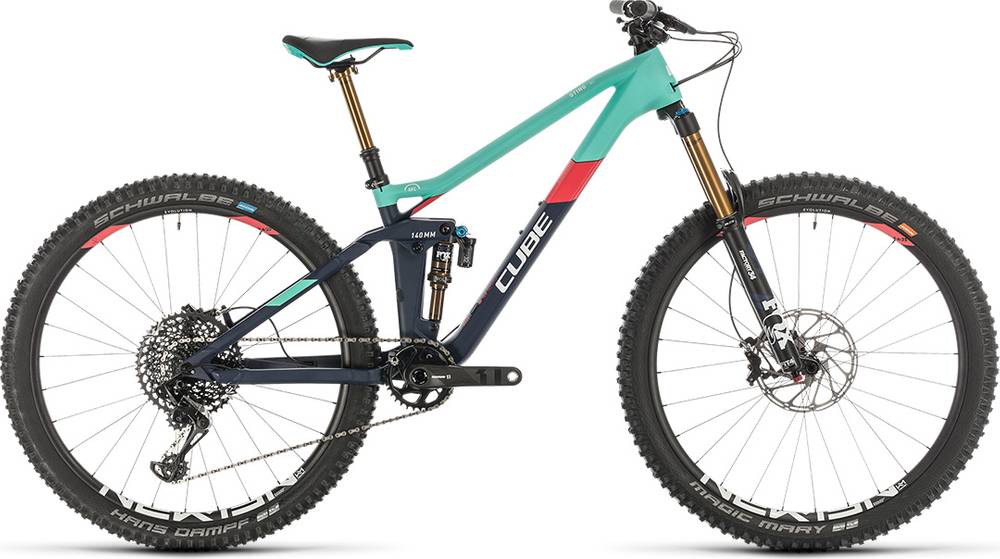

CUBE STING WS 140 HPC SL 2020
2020 Mountain
Estimate price |
3,912$
Weight | 12.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Rear 140mm -
Fork Fox Factory Float 34 -
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HPC, High Performance Composite
Suspension Fork
Fox 34 Float Factory
Rear Shock
Fox Float DPX2 Factory EVOL
Drivetrain
Rear Derailleur
SRAM XO1 Eagle™, 10-50T, 1x12
Shift Levers
SRAM GX Eagle™ Trigger
Cassette
SRAM XG-1275 Eagle™, 10-50T
Crank
SRAM X1 Eagle™ Carbon, 32T
Chain
SRAM GX Eagle™
Wheels
Rims
Newmen Evolution SL X.A.25
Tires
Schwalbe Magic Mary, Addix Soft, Kevlar, Tubeless Easy, 2.35
Brakes
Brakes
SRAM G2 RSC
Cockpit
Stem
Newmen Evolution SL 318.4, 31.8mm
Handlebar
Newmen Evolution 318.20, 760mm
Grips
CUBE Race SL Grip 29.5mm, 1-Clamp
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seat
Saddle
Natural Fit Venec WS
Seatpost
Fox Transfer Factory 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13" | 16" | 18" | 20" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.42 mm | 1.37 mm | 1.33 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 694 mm | 716 mm | 740 mm | 764 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 107 mm | 107 mm | 107 mm | 107 mm |
| Stack | 588 mm | 593 mm | 602 mm | 611 mm |
| Reach | 399 mm | 419 mm | 439 mm | 459 mm |
| Top Tube Length | 547 mm | 569 mm | 592 mm | 615 mm |
| Seat Tube Angle | 75.2 ° | 75.2 ° | 75.2 ° | 75.2 ° |
| Seat Tube Length | 350 mm | 370 mm | 420 mm | 470 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 102 mm | 107 mm | 117 mm | 127 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1120 mm | 1142 mm | 1166 mm | 1190 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 733 mm | 734 mm | 735 mm | 757 mm |
| Rear Travel | 140 mm | 140 mm | 140 mm | 140 mm |
| Wheels | 27" | 27" | 27" | 27" |
About this model
STING WS 140 HPC SL belongs to the Cube Sting model. 27 bikes variations carry this model name so far. You can easily view all of the Cube Sting bikes models from 2020, here.
Model range prices
CUBE STING WS 120 EXC 2020 is the most affordable bike of this model and has a price of 1551$. On the other hand, CUBE STING WS 140 HPC SL 2020, is the most expensive and costs 3622$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When CUBE released this model in 2020, its price was 3622$. If we compare this with the average Trail bike cost we notice that the price is 31.14% higher.
Trail bikes average weight
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 12.4 kg (27.34 lbs), the STING WS 140 HPC SL model is slightly lighter than average. In short, the average Trail bike weight is 4.68% higher than this one.
STING WS 140 HPC SL components
Fork
The STING WS 140 HPC SL comes factory-installed with the Fox Factory Float 34 fork. This has a travel range of mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the Fox Float DPX2 Factory EVOL rear shock model, which has a travel of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The STING WS 140 HPC SL 2020 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE STING WS 140 HPC SL has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Dropper post
The CUBE model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
