Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Pike RC
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HPC Carbon Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 Rear Triangle, ATG, ETC 4-Link, ISCG Mount, Boost148, AXH
Suspension Fork
RockShox Pike RC Solo Air 27.5, 15QR Maxle, Tapered, 150mm
Rear Shock
RockShox Super Deluxe RC3, 185x55 Trunnion Mount, Open/Medium/Firm Mode
Drivetrain
Rear Derailleur
SRAM XO1 Eagle, 12-Speed
Shift Levers
SRAM GX Eagle Trigger
Cassette
SRAM XG-1275, 10-50T
Crank
SRAM Descendant Eagle Carbon, 32T, Boost, 175mm (170mm for smallest frame size)
Chain
SRAM GX Eagle
Wheels
Rims
Newmen Evolution SL A.25, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready
Tires
Schwalbe Fat Albert, Addix Soft, Kevlar, Tubeless Easy, 2.35
Brakes
Brakes
SRAM Guide RS, Hydr. Disc Brake (180/180)
Cockpit
Stem
Newmen Evolution SL 318.4 Carbon, 31.8mm
Handlebar
Newmen Advanced 318.20, 750mm
Grips
CUBE Race SL Grip 29.5, 1-Clamp
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seat
Saddle
SDG Allure
Seatpost
RockShox Reverb Stealth 31.6mm, 390x125mm (340x100mm for smallest frame size)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13" | 16" | 18" |
|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.42 mm | 1.37 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm |
| Front Center | 694 mm | 716 mm | 740 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 107 mm | 107 mm | 107 mm |
| Stack | 588 mm | 593 mm | 602 mm |
| Reach | 399 mm | 419 mm | 439 mm |
| Top Tube Length | 547.3 mm | 568.8 mm | 591.8 mm |
| Seat Tube Angle | 75.2 ° | 75.2 ° | 75.2 ° |
| Seat Tube Length | 350 mm | 370 mm | 420 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 102 mm | 107 mm | 117 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1120 mm | 1142 mm | 1166 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm |
| Rear Travel | 140 mm | 140 mm | 140 mm |
| Wheels | 27" | 27" | 27" |
Model Overview

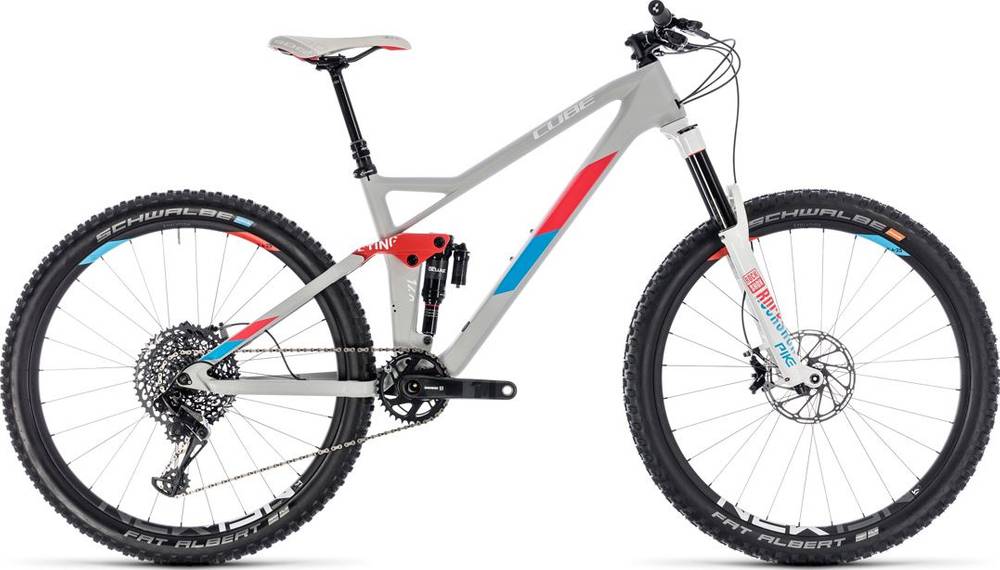

STING WS 140 HPC SL 27.5 is a Cube Sting model. CUBE launched 27 bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Trail bikes average weight
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
STING WS 140 HPC SL 27.5 weighs 12.4 kg (27.34 lbs) and is slightly lighter than the average. In other words, this model is 4.68% lighter than the average Trail bike.
Overview of components
Fork
The RockShox Pike RC is included from the factory. It has a travel distance of 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
CUBE STING WS 140 HPC SL 27.5 bike has the RockShox Super Deluxe RC3 model installed, and has a travel of 140mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The STING WS 140 HPC SL 27.5 2018 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE STING WS 140 HPC SL 27.5 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
