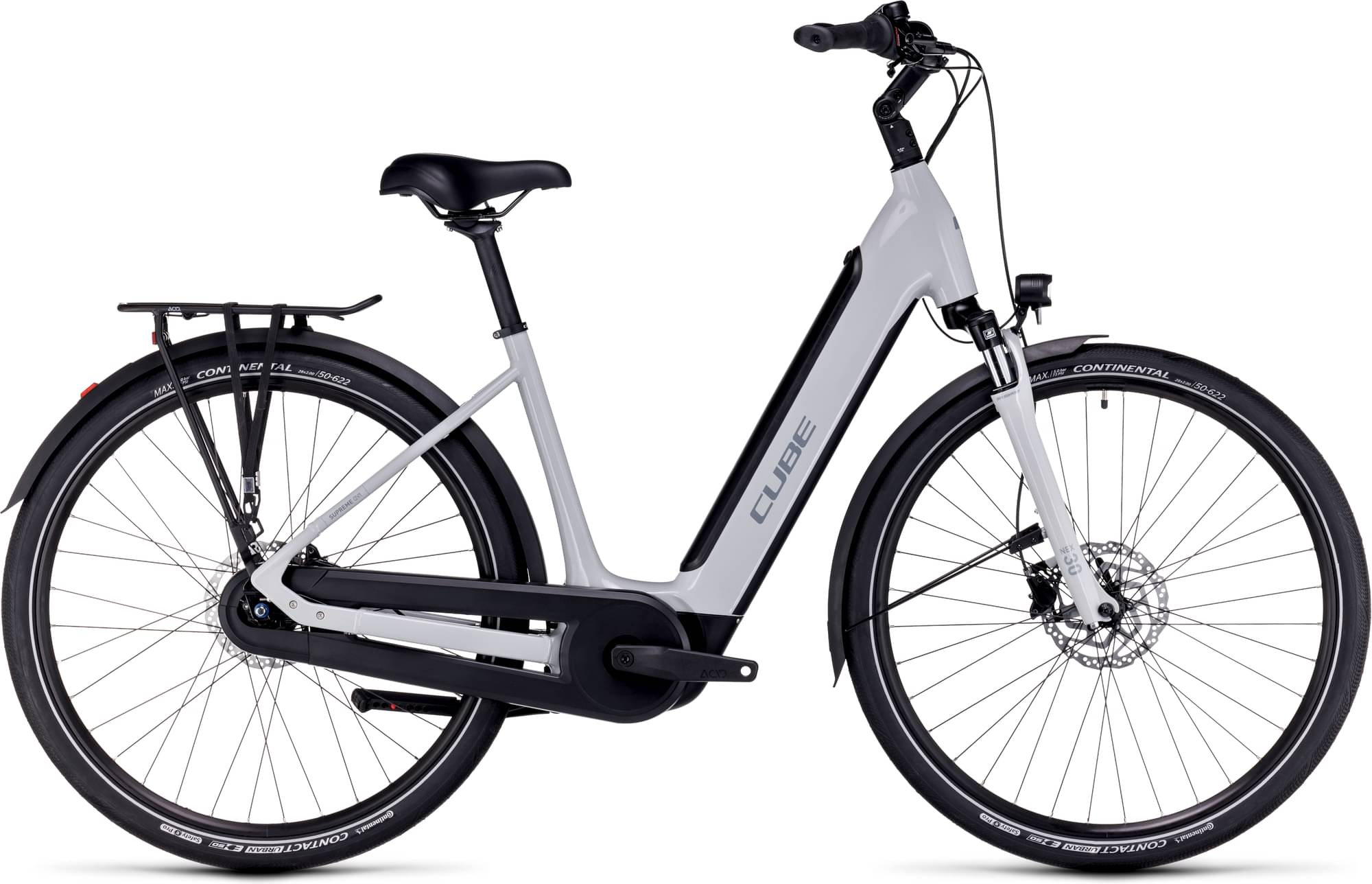

CUBE SUPREME HYBRID, ONE 400 2023
2023 E-bike
Estimate price |
2,809$
Weight | 26.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 50mm -
Fork Suntour NEX
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerTube 400 -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Comfort Ride Geometry, Tapered Headtube, Premium Comfort And Safety, Semi-Integrated Carrier, Fully Integrated Battery, Slider Dropout

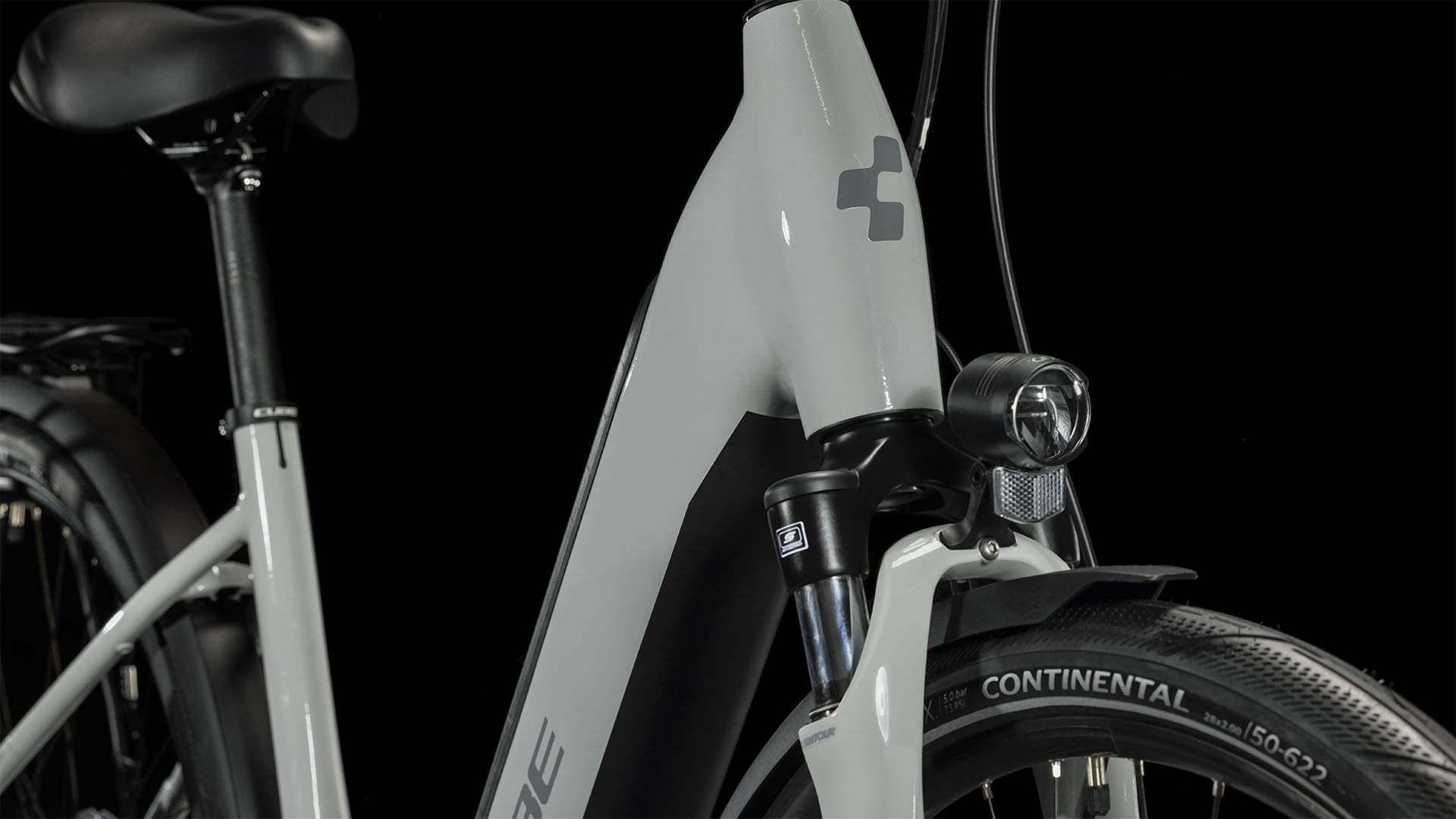

Suspension Fork
SR Suntour NEX-E25, 50mm
Drivetrain
Shift Levers
Shimano Nexus SL-C3000-7, Revoshift
Cassette
Shimano Nexus, 20T
Crank
ACID E-Crank, 38T, 165mm
Chain
KMC Z610
Pedals
ACID PP Trekking
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano Nexus SG-C3001-7D, 7-Speed, Centerlock, Nut
Rims
CUBE EX23, 36H, Disc, Tubeless Ready

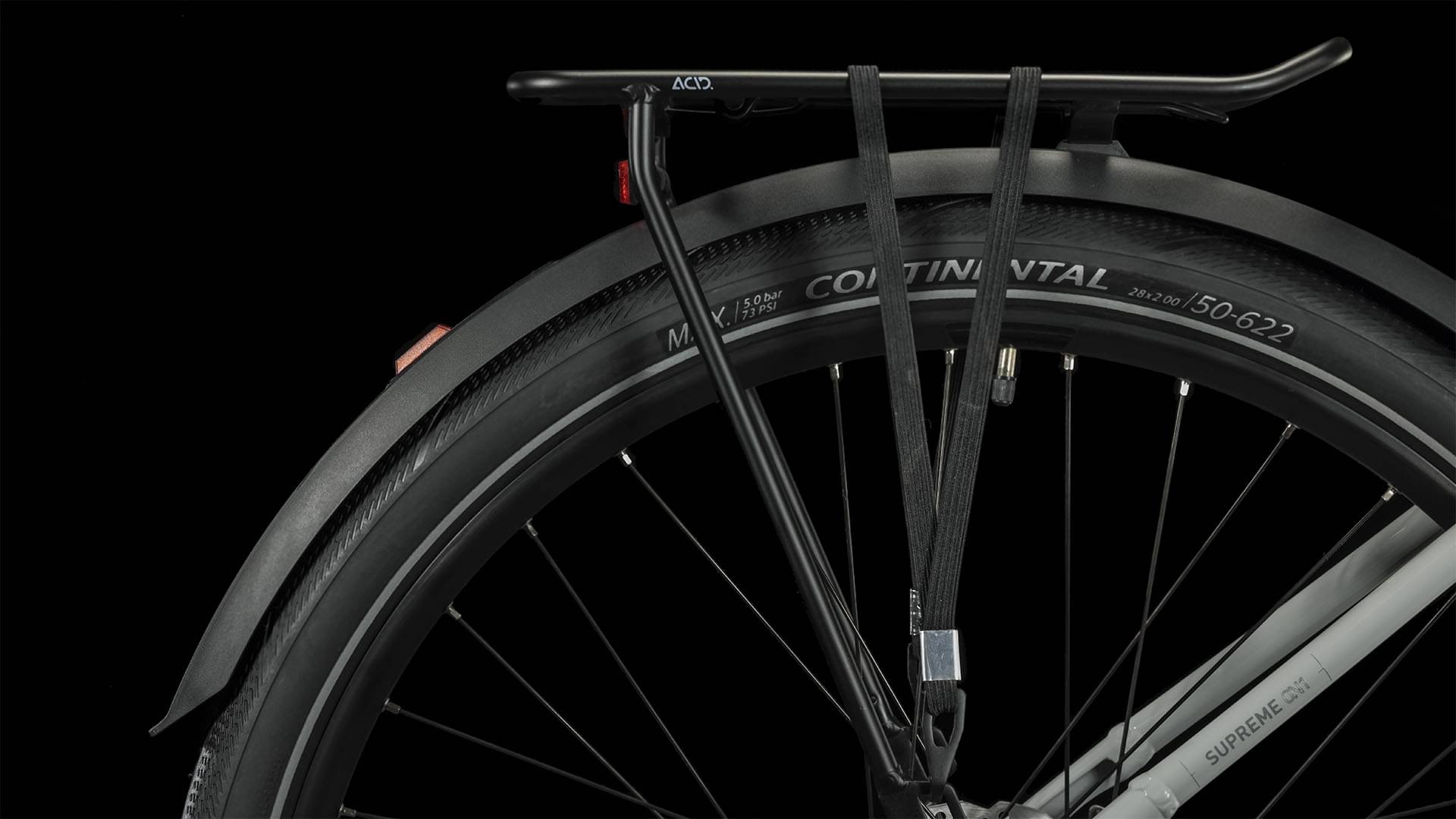

Tires
Conti Contact Urban, SafetyPro, 50-622
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (180/180)
Cockpit

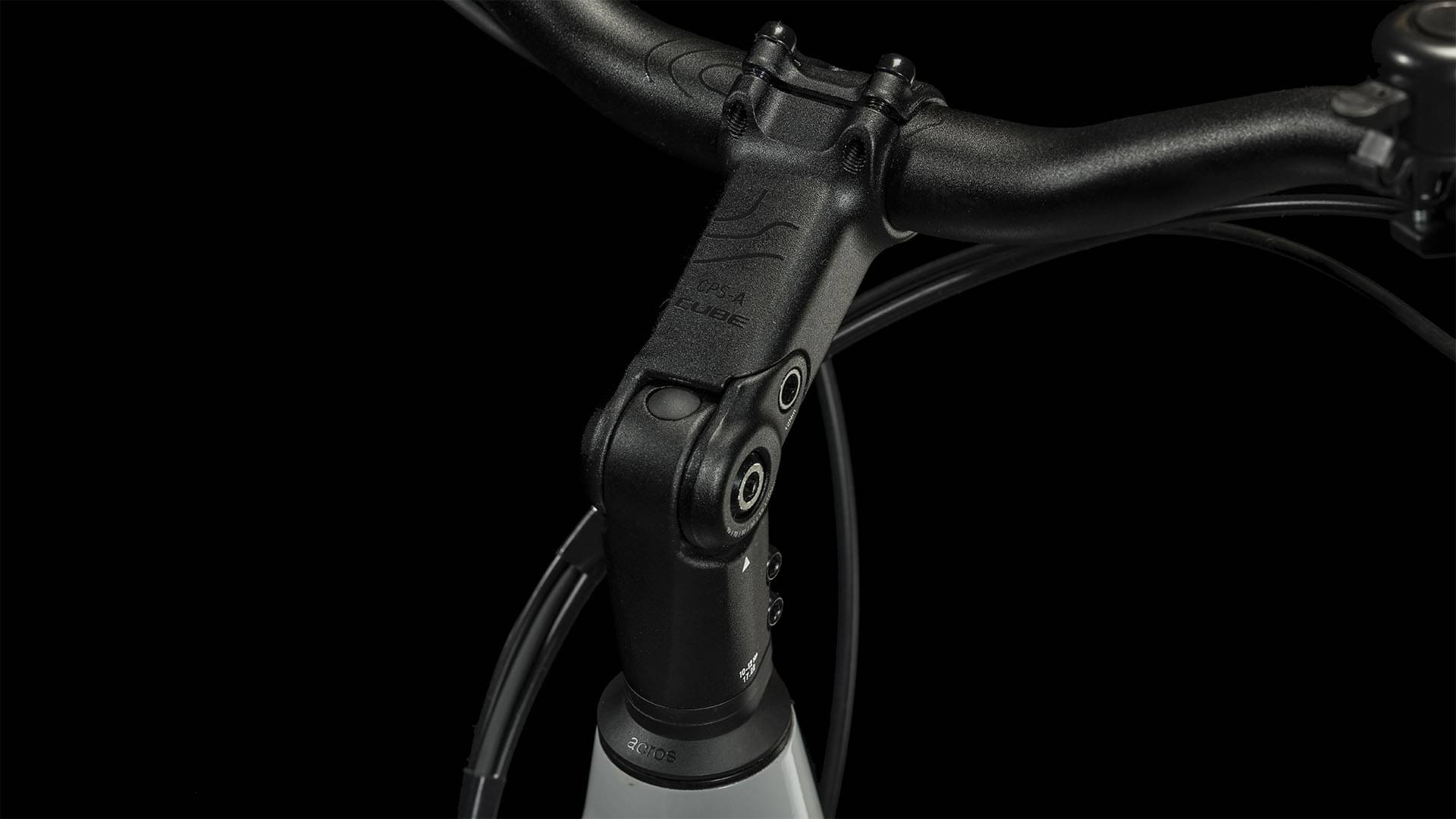

Stem
CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar
CUBE Comfort Shape Bar
Grips
ACID Travel Comfort Gripshift
Headset
ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat

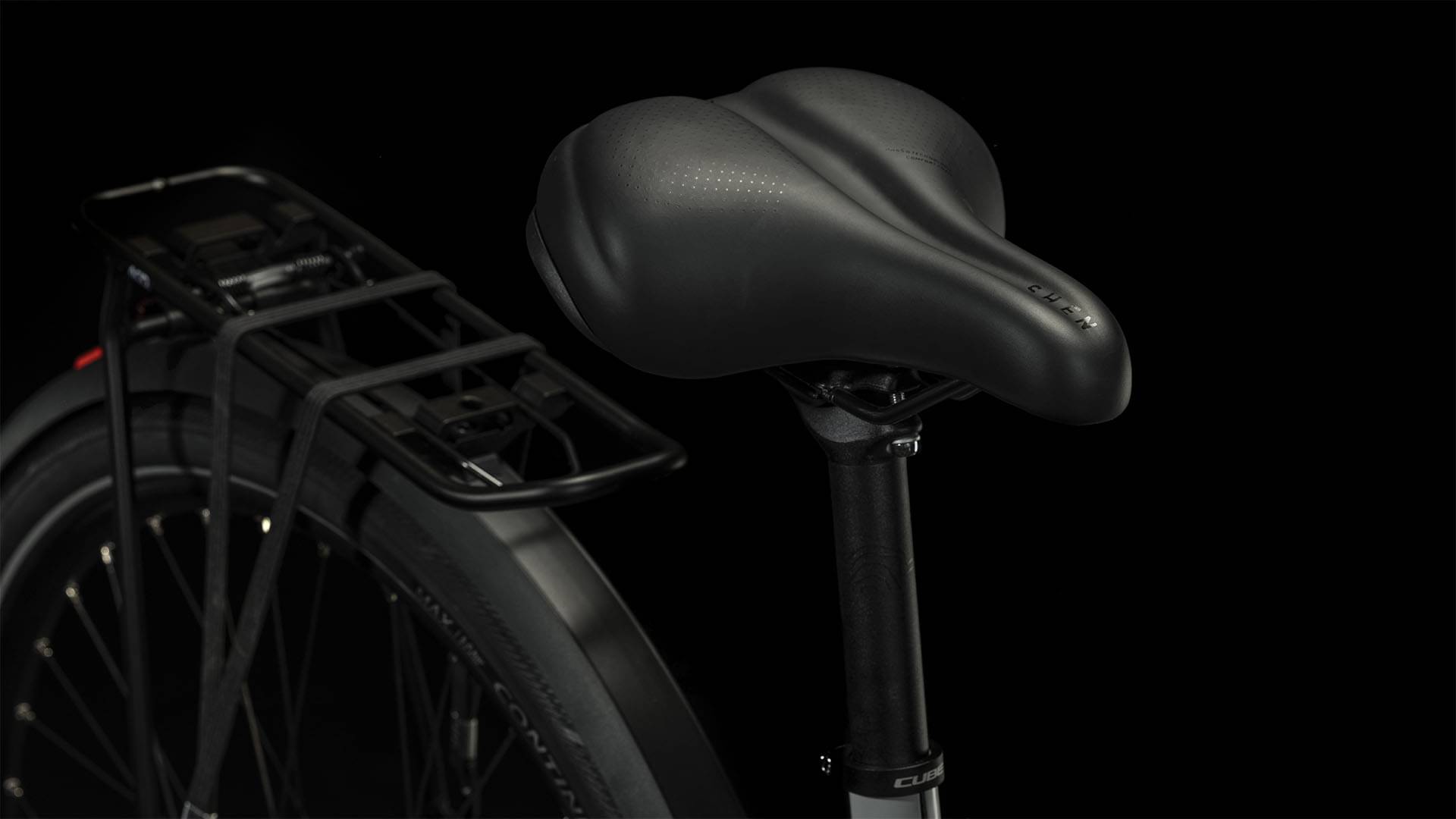

Saddle
Natural Fit Shen
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Active Plus Generation 3 (50Nm) Cruise (250Watt)
Battery
Bosch PowerTube 400
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.72 mm | 1.72 mm | 1.73 mm | 1.74 mm |
| Front Center | 653 mm | 653 mm | 666 mm | 679 mm |
| Rake | 41 mm | 41 mm | 42 mm | 41 mm |
| Trail | 83 mm | 83 mm | 82 mm | 83 mm |
| Stack | 675 mm | 675 mm | 690 mm | 708 mm |
| Reach | 393 mm | 393 mm | 400 mm | 407 mm |
| Top Tube Length | 611 mm | 611 mm | 623 mm | 635 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 195 mm | 195 mm | 210 mm | 230 mm |
| Chainstay Length | 505 mm | 505 mm | 505 mm | 505 mm |
| Wheelbase | 1149 mm | 1149 mm | 1162 mm | 1175 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
SUPREME HYBRID, ONE 400 is part of the Cube E Supreme model. CUBE released 42 e-bikes variations of this model so far. You can easily view all of the Cube E Supreme e-bikes models from 2023, here.
Model range prices
The most economical model, the CUBE SUPREME HYBRID, ONE 400 2023 has a starting price of 2600$. CUBE SUPREME HYBRID, SLT 625 2023 on the other hand is the most expensive at 4565$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Commuter e-bikes
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2023 and its price was 2600$. Doing a quick comparison, we notice that SUPREME HYBRID, ONE 400 price is 1.21% more expensive than the average cost of a Commuter e-bike.
Average weight for Commuter e-bikes
On a deeper look, we notice that the average weight of a Commuter e-bike is 25.2 kg (55.56 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
CUBE SUPREME HYBRID, ONE 400 it’s weighing 26.6 kg (58.64 lbs). At this weight, is a bit heavier than average. In other words, this model is 5.56% heavier than the average Commuter e-bike.
SUPREME HYBRID, ONE 400 components
Fork
The fork installed on this bike is the Suntour NEX model. The travel on this model is 50mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on SUPREME HYBRID, ONE 400 are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The SUPREME HYBRID, ONE 400 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, you can easily find one that suits you.
