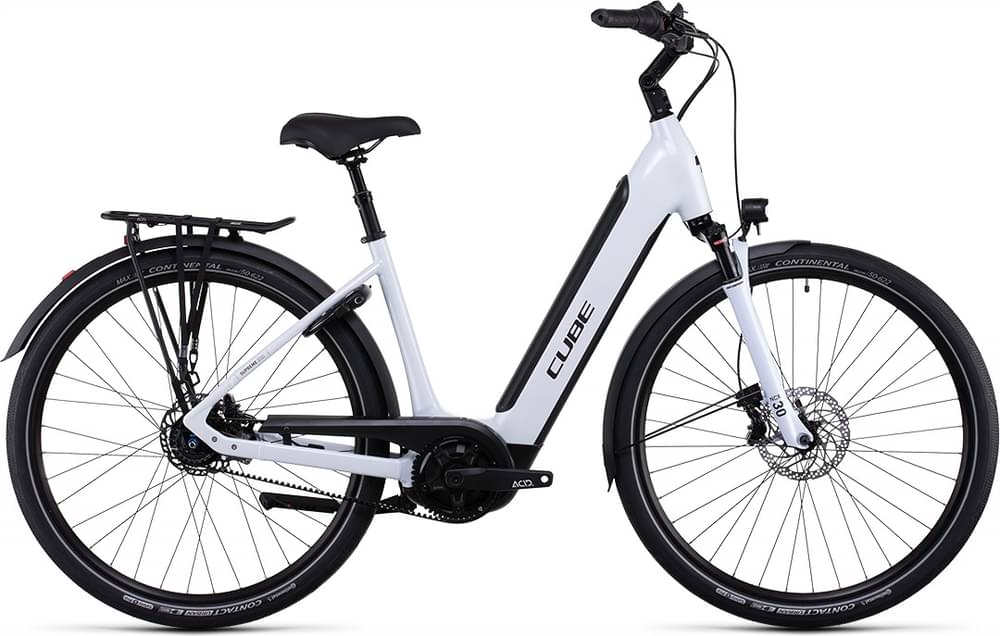

CUBE SUPREME RT HYBRID EXC 500 2022
2022 E-bike
Estimate price |
3,440$
Weight | 26.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 50mm -
Fork SunTour NCX
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain Belt Drive, IGH -
Brakes Coaster
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Comfort Ride Geometry, Tapered Headtube, Premium Comfort And Safety, Semi-Integrated Carrier, Full Integrated Battery, Slider Dropout
Suspension Fork
SR Suntour NCX D LO Air, 50mm, Lockout
Drivetrain
Shift Levers
Shimano Nexus SL-C6000-8, Revoshift
Cassette
Gates Rear Sprocket CDC, 24T
Crank
ACID E-Crank, 165mm, 50T
Pedals
ACID PP Trekking
Wheels
Front Hub
Shimano Deore HB-M6000, QR, Centerlock
Rear Hub
Shimano Nexus SG-C6001-8CD, 8-Speed, 5-Bolt, Coaster Brake, Nut
Rims
CUBE EX23, 36H, Disc, Tubeless Ready
Tires
Conti Contact Urban, 50-622
Brakes
Brakes
Shimano Deore BR-M6000, Hydr. Disc Brake (180/160)
Cockpit
Stem
CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar
CUBE Comfort Shape Bar
Grips
RFR Comfort
Headset
ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Shen+
Seatpost
CUBE Suspension Seatpost HD, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Active Plus Generation 3 (50Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500
Remote
Bosch Intuvia
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.72 mm | 1.72 mm | 1.73 mm | 1.74 mm |
| Front Center | 653 mm | 653 mm | 666 mm | 679 mm |
| Rake | 42 mm | 42 mm | 43 mm | 42 mm |
| Trail | 82 mm | 82 mm | 81 mm | 82 mm |
| Stack | 675.4 mm | 675.4 mm | 689.5 mm | 708.2 mm |
| Reach | 392.8 mm | 392.8 mm | 399.7 mm | 407.1 mm |
| Top Tube Length | 611 mm | 611 mm | 623 mm | 635 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 195 mm | 195 mm | 210 mm | 230 mm |
| Chainstay Length | 504 mm | 504 mm | 504 mm | 504 mm |
| Wheelbase | 1148 mm | 1148 mm | 1161 mm | 1175 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 433 mm | 433 mm | 432 mm | 432 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model
SUPREME RT HYBRID EXC 500 belongs to the Cube E Supreme model. CUBE released 42 e-bikes variations of this model so far. You can easily view all of the Cube E Supreme e-bikes models from 2022, here.
Model range prices
The most economical model, the CUBE SUPREME HYBRID ONE 400 2022 has a starting price of 2441$. CUBE SUPREME HYBRID SLT 625 2022 on the other hand is the most expensive at 4458$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Hybrid e-bikes average price
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2022 and its price was 3184$. If we compare this with the average Hybrid e-bike cost we notice that the price is 28.39% higher.
Average weight for Hybrid e-bikes
Hybrid e-bikes have an average weight of 23.79 kg (52.45 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
CUBE SUPREME RT HYBRID EXC 500 it’s weighing 26.9 kg (59.3 lbs). At this weight, is considerably heavier than average. In short, the average Hybrid e-bike weight is 13.07% lower than this one.
Overview of components
Fork
The fork installed on this bike is the SunTour NCX model. The travel on this model is 50mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When it comes to wheels, the SUPREME RT HYBRID EXC 500 e-bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The SUPREME RT HYBRID EXC 500 has Coaster brakes. These brakes are pretty efficient, and they’re not so pricey. However, if your chain falls off or snaps, your coaster brakes won’t function anymore.
Sizes
This e-bike is available in 4 sizes. They vary from 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, you can easily find one that suits you.
