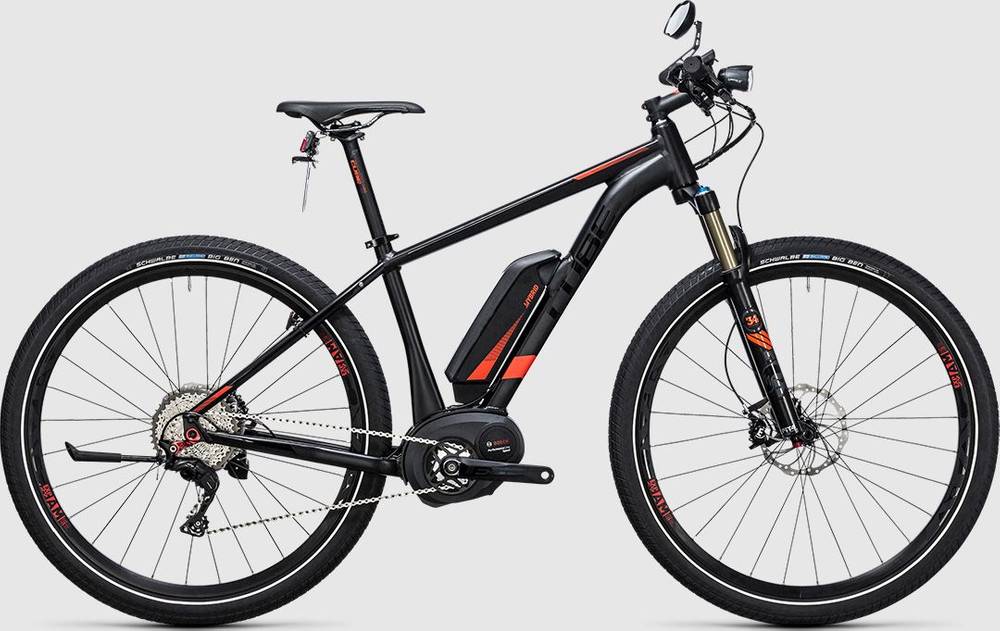

CUBE SUV HYBRID 45 SL 500 29 2017
2017 E-bike
Weight | 21.1 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Fox Performance Float 34
-
Groupset XT, FSA -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, ARG, Double Butted, Disc Only, Tapered Headtube, X12, Internal Cable Routing
Suspension Fork
Fox 34 Float Performance, FIT4, QR15, Tapered, 100mm
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed, Direct Mount
Shift Levers
Shimano XT SL-M8000
Cassette
Shimano XT CS-M8000, 11-42T
Crank
FSA CK-745, 19T
Chain
KMC X11e, EcoProTeQ
Pedals
CUBE PP Trekking
Wheels
Rims
Answer Atac AM, 15QR/X12, Tubeless-Ready 584x23C Rims
Tires
Schwalbe Big Ben, PerfL, 2.15
Brakes
Brakes
Magura MT5e, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar Pro, 720mm
Grips
CUBE Race Grip, 1-Clamp
Headset
FSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Selle Italia SC1
Seatpost
Cube Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance (60Nm) Speed (350Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Intuvia
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17" | 19" | 21" | 23" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.54 mm | 1.5 mm | 1.51 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 651 mm | 671 mm | 691 mm | 701 mm |
| Rake | 52 mm | 51 mm | 51 mm | 50 mm |
| Trail | 81 mm | 82 mm | 82 mm | 83 mm |
| Stack | 629 mm | 634 mm | 643 mm | 657 mm |
| Reach | 394 mm | 413 mm | 430 mm | 436 mm |
| Top Tube Length | 585 mm | 605 mm | 625 mm | 635 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 405 mm | 450 mm | 495 mm | 545 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 115 mm | 125 mm | 140 mm |
| Chainstay Length | 493 mm | 493 mm | 493 mm | 493 mm |
| Wheelbase | 1136 mm | 1156 mm | 1177 mm | 1187 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" | 29" |
Model Overview
SUV HYBRID 45 SL 500 29 is a Cube E Suv model. CUBE released 6 e-bikes variations of this model so far. Take a sneak peek at all Cube E Suv e-bikes models from 2017, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry e-bikes
Our math shows that the average cost of a dependable Crosscountry e-bike is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Crosscountry e-bikes average weight
If we make a quick analysis of the average weight of a Crosscountry e-bike, we get 23.21 kg (51.17 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much lighter than average, SUV HYBRID 45 SL 500 29 has a weight of 21.1 kg (46.52 lbs). In short, the average Crosscountry e-bike weight is 10% higher than this one.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
SUV HYBRID 45 SL 500 29 components
Fork
CUBE SUV HYBRID 45 SL 500 29 2017 e-bike is equipped with the Fox Performance Float 34 fork, and has 100mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, CUBE SUV HYBRID 45 SL 500 29 2017, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
