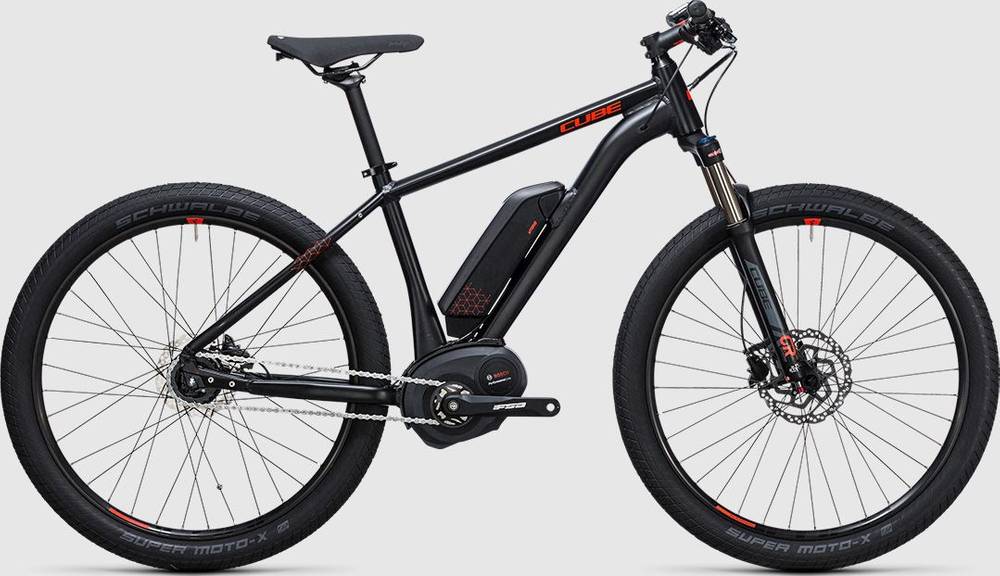

CUBE SUV HYBRID Pro 500 27.5 2017
2017 E-bike
Weight | 22.6 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCR 32
-
Groupset Alfine, FSA -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, ARG, Double Butted, Disc Only
Suspension Fork
SR Suntour XCR32 Coil LO-R, 100mm
Drivetrain
Shift Levers
Shimano Alfine SL-S7000, 8-Speed
Crank
FSA CK-745, 17T
Chain
KMC Z610, EcoProTeQ
Pedals
CUBE Aluminium MTB
Wheels
Front Hub
Shimano Deore HB-M615, QR, Centerlock
Rear Hub
Shimano Alfine SL-S7001, 8-Speed
Rims
CUBE EX23, Disc, 36H, Tubeless Ready
Tires
Schwalbe Super Moto-X, 2.4
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (180/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
CUBE Natural Fit Race
Headset
FSA Orbit 1.5E ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Selle Royal Prestige
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance (63Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" |
|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.51 mm | 1.5 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm |
| Front Center | 627 mm | 640 mm | 662 mm |
| Rake | 42 mm | 41 mm | 41 mm |
| Trail | 91 mm | 86 mm | 86 mm |
| Stack | 581 mm | 604 mm | 623 mm |
| Reach | 384 mm | 400 mm | 415 mm |
| Top Tube Length | 555 mm | 577 mm | 598 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 405 mm | 450 mm | 490 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° |
| Head Tube Length | 105 mm | 125 mm | 145 mm |
| Chainstay Length | 478 mm | 478 mm | 478 mm |
| Wheelbase | 1100 mm | 1113 mm | 1135 mm |
| Bottom Bracket Drop | 51 mm | 51 mm | 51 mm |
| Wheels | 27" | 27" | 27" |
Model Overview
SUV HYBRID Pro 500 27.5 is a Cube E Suv model. CUBE released 6 e-bikes variations of this model so far. You can easily view all of the Cube E Suv e-bikes models from 2017, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry e-bikes
If you want to purchase a solid Crosscountry e-bike, it is important to know that the average cost is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Crosscountry e-bikes average weight
Crosscountry e-bikes weigh an average of 23.21 kg (51.17 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
CUBE SUV HYBRID Pro 500 27.5 it’s weighing 22.6 kg (49.82 lbs). At this weight, is slightly lighter than average. In conclusion, the average Crosscountry e-bike weighs 2.7% more than SUV HYBRID Pro 500 27.5.
Overview of components
Fork
The fork installed on this bike is the SunTour XCR 32 model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The SUV HYBRID Pro 500 27.5 2017 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. CUBE SUV HYBRID Pro 500 27.5 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
