Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork RockShox Paragon Gold RL -
Groupset XTR -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite Trekking Cross Taper Double Butted
Suspension Fork
Rock Shox Paragon Gold Taper, 63mm, OneLock
Drivetrain
Rear Derailleur
Shimano XTR RD-M9000, 11-Speed
Front Derailleur
Shimano XT FD-M8025, Top Swing, 31.8mm
Shift Levers
Shimano XT SL-M8000-I, Direct Attach
Cassette
Shimano SLX CS-M7000, 11-42T
Crank
Shimano XT FC-M8000, Hollowtech II, 38x28T, 175mm, Integrated BB
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano CN-HG601
Pedals
CUBE Aluminium MTB
Wheels
Rims
Fulcrum Red 66, Straight Pull, QR/QR, 28H
Tires
Schwalbe Smart Sam, Kevlar Performance, 44x622
Brakes
Brakes
Shimano XT BR-M8000, Hydr. Disc Brake (180/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Flat Race Bar Pro Carbon, 740mm
Grips
CUBE Natural Fit Tour
Headset
FSA Orbit Z-t, Top Zero-Stack 1 1/8" (OD44mm), Bottom Integrated 1 1/2"
Seat
Saddle
Selle Italia SC1
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.63 mm | 1.62 mm | 1.63 mm |
| Bottom Bracket Height | 281 mm | 281 mm | 281 mm |
| Front Center | 618 mm | 628 mm | 644 mm |
| Rake | 38 mm | 38 mm | 38 mm |
| Trail | 76 mm | 76 mm | 76 mm |
| Stack | 629 mm | 638 mm | 657 mm |
| Reach | 386 mm | 393 mm | 402 mm |
| Top Tube Length | 576 mm | 586 mm | 601 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 130 mm | 140 mm | 160 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1058 mm | 1068 mm | 1084 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm |
| Wheels | 700 | 700 | 700 |
About this model

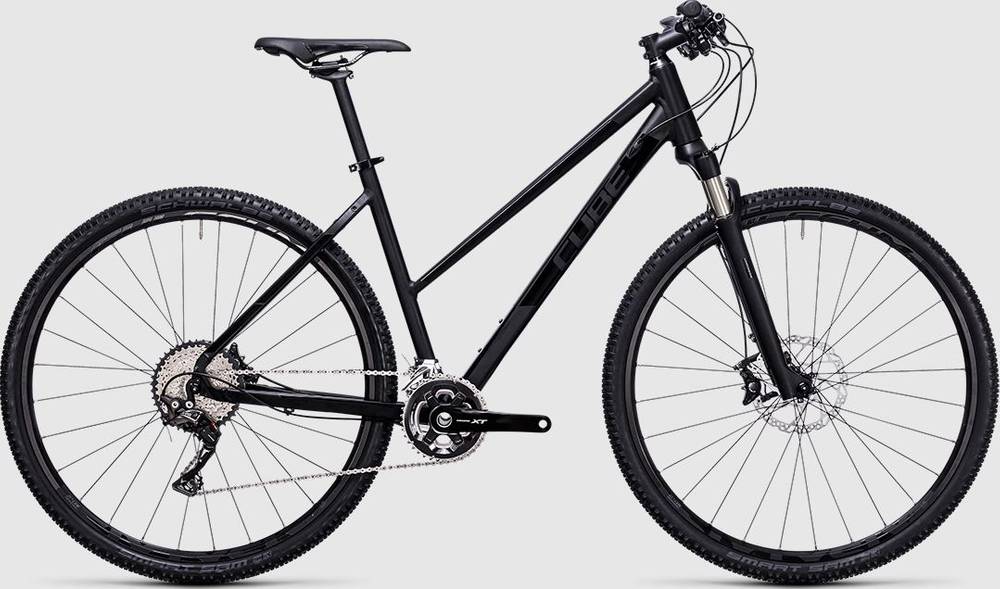

TONOPAH SL belongs to the Cube Tonopah model. 4 bikes variations carry this model name so far. You can easily view all of the Cube Tonopah bikes models from 2017, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Touring bikes average price
Our math shows that the average cost of a dependable Touring bike is 1007$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Touring bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Touring bikes
On a deeper look, we notice that the average weight of a Touring bike is 13.35 kg (29.43 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
CUBE TONOPAH SL it’s weighing 11.65 kg (25.68 lbs). At this weight, is considerably lighter than average. In short, the average Touring bike weight is 14.59% higher than this one.
Overview of components
Fork
The TONOPAH SL comes factory-installed with the RockShox Paragon Gold RL fork. This has a travel range of mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The TONOPAH SL 2017 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
