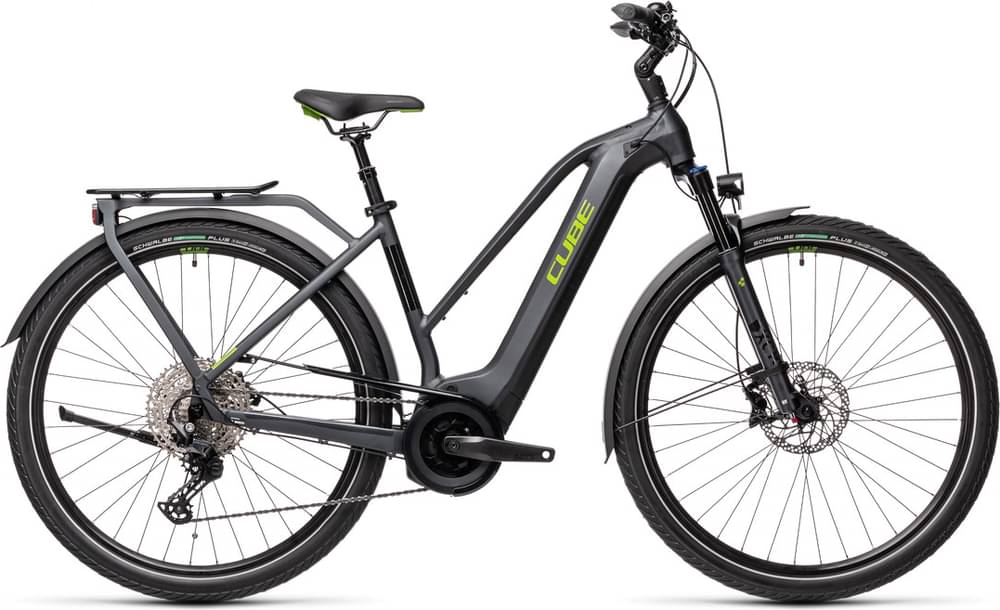

CUBE TOURING HYBRID EXC 500 Trapeze 2021
2021 E-bike
Estimate price |
3,268$
Weight | 26.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 100mm -
Fork SunTour XCR 32 Air
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Tapered Headtube, Full Integrated Battery, Integrated Carrier 2.0
Suspension Fork
SR Suntour XCR32 LO-R Air, 100mm, Lockout
Drivetrain
Rear Derailleur
Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed
Shift Levers
Shimano Deore SL-M6100, Rapidfire-Plus
Cassette
Shimano Deore CS-M6100, 10-51T
Crank
ACID E-Crank, 38T (175mm // EE: 170mm)
Chain
Shimano CN-M6100
Pedals
ACID PP Trekking
Wheels
Front Hub
Shimano HB-M4050, QR, Centerlock
Rear Hub
Shimano FH-MT401, QR, Centerlock
Rims
CUBE EX23, 36H, Disc, Tubeless Ready
Tires
Schwalbe Energizer Plus, Performance, Green Guard, 55-622
Brakes
Brakes
Shimano BR-MT420/MT400, Hydr. Disc Brake (180/180)
Cockpit
Stem
Satori Up2 Plus, 31.8mm, Adjustable
Handlebar
CUBE Comfort Trail Bar, 700mm
Grips
Natural Fit Comfort
Headset
M, L: ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1041, BlockLock 135°, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Sequence Comfort
Seatpost
CUBE Suspension Seatpost HD, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500
Remote
Bosch Intuvia
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | XS | SM |
|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.59 mm | 1.58 mm |
| Front Center | 684 mm | 660 mm | 671 mm |
| Rake | 52 mm | 51 mm | 51 mm |
| Trail | 75 mm | 76 mm | 76 mm |
| Stack | 656 mm | 628 mm | 637 mm |
| Reach | 407 mm | 394 mm | 402 mm |
| Top Tube Length | 579.2 mm | 585 mm | 596 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 520 mm | 440 mm | 480 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 135 mm | 105 mm | 115 mm |
| Chainstay Length | 489 mm | 489 mm | 489 mm |
| Wheelbase | 1165 mm | 1141 mm | 1152 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 |
About this model
TOURING HYBRID EXC 500 Trapeze belongs to the Cube E Touring model. CUBE released 81 e-bikes variations of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
CUBE TOURING HYBRID ONE 400 Trapeze 2021 is the cheapest e-bike model and costs 2388$. CUBE TOURING HYBRID EXC 625 2021 is the most expensive one and costs 3237$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid e-bikes
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3025$. In conclusion, this e-bike price is 21.98% higher than the price of the average Hybrid e-bike.
Average weight for Hybrid e-bikes
On a deeper look, we notice that the average weight of a Hybrid e-bike is 23.79 kg (52.45 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
CUBE TOURING HYBRID EXC 500 Trapeze it’s weighing 26.5 kg (58.42 lbs). At this weight, is considerably heavier than average. In short, the average Hybrid e-bike weight is 11.39% lower than this one.
TOURING HYBRID EXC 500 Trapeze components
Fork
This e-bike has the SunTour XCR 32 Air fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, CUBE TOURING HYBRID EXC 500 Trapeze 2021, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
