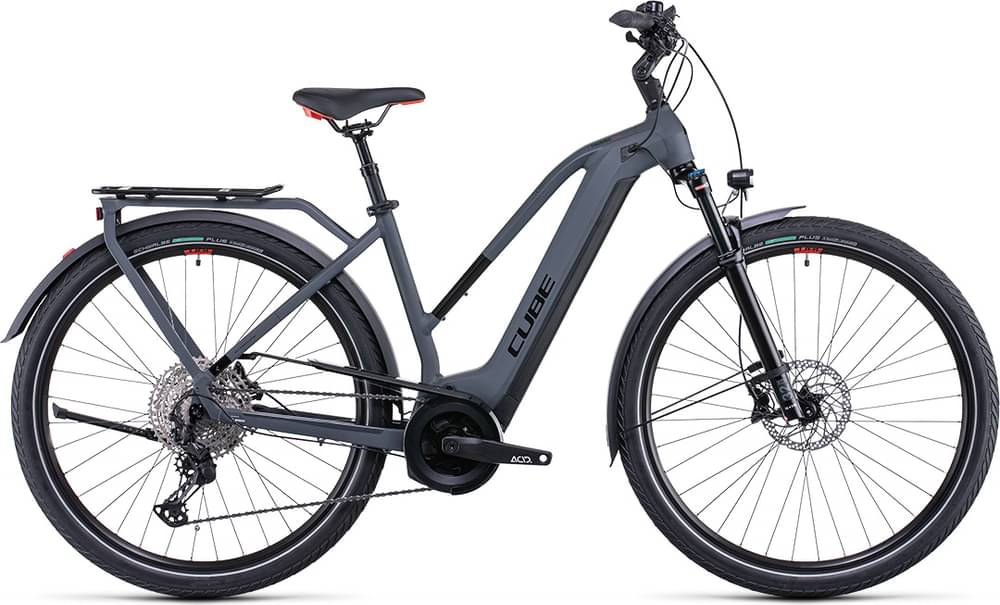

CUBE TOURING HYBRID EXC 500 Trapeze 2022
2022 E-bike
Estimate price |
3,325$
Weight | 26.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 100mm -
Fork SunTour XCR 32 Air
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Tapered Headtube, Full Integrated Battery, Integrated Carrier 2.0
Suspension Fork
SR Suntour XCR32 LO-R Air, Tapered, 15x110mm, 100mm, Lockout
Drivetrain
Rear Derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shift Levers
Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
Cassette
Shimano Deore CS-M6100, 10-51T
Crank
ACID E-Crank, 40T, 175mm (EE: 170mm)
Chain
Shimano CN-M6100
Pedals
ACID PP Trekking
Wheels
Front Hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub
Shimano FH-MT401, QR, Centerlock
Rims
CUBE EX23, 36H, Disc, Tubeless Ready
Tires
Schwalbe Energizer Plus, Performance, Green Guard, 55-622
Brakes
Brakes
Shimano BR-MT420, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar
CUBE Comfort Trail Bar, 700mm
Grips
Natural Fit Comfort
Headset
M/Z: ACROS AZF-1038, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1040, BlockLock 135°, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Sequence Comfort
Seatpost
CUBE Suspension Seatpost HD, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500
Remote
Bosch Intuvia
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.54 mm | 1.6 mm |
| Front Center | 660 mm | 671 mm | 684 mm |
| Rake | 52 mm | 51 mm | 51 mm |
| Trail | 75 mm | 76 mm | 76 mm |
| Stack | 632.5 mm | 632.5 mm | 660.6 mm |
| Reach | 398.6 mm | 410.4 mm | 412.6 mm |
| Top Tube Length | 590 mm | 601 mm | 612 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 105 mm | 105 mm | 135 mm |
| Chainstay Length | 494 mm | 494 mm | 494 mm |
| Wheelbase | 1145 mm | 1156 mm | 1169 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm |
| Standover Height | 802 mm | 891 mm | 786 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
Model Overview
TOURING HYBRID EXC 500 Trapeze is a Cube E Touring model. CUBE launched 81 e-bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
CUBE TOURING HYBRID ONE 400 Trapeze 2022 is the most economical model, with a starting price of 2388$. CUBE TOURING HYBRID EXC 625 2022 on the other hand costs 3290$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Hybrid e-bikes
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When CUBE released this model in 2022, its price was 3078$. In conclusion, this e-bike price is 24.11% more expensive than the price of the average Hybrid e-bike.
Average weight for Hybrid e-bikes
The average weight for Hybrid e-bikes is 23.79 kg (52.45 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
TOURING HYBRID EXC 500 Trapeze weighs 26.3 kg (57.98 lbs) and is considerably heavier than the average. To sum up, it’s 10.55% heavier than the average weight of Hybrid e-bikes.
TOURING HYBRID EXC 500 Trapeze components
Fork
The TOURING HYBRID EXC 500 Trapeze comes factory-installed with the SunTour XCR 32 Air fork. This has a travel range of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The TOURING HYBRID EXC 500 Trapeze 2022 e-bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 3 sizes. They vary from 151 cm – 179 cm (4.95 ft – 5.87 ft). In conclusion, it won’t take much to find one that’s right for you.
