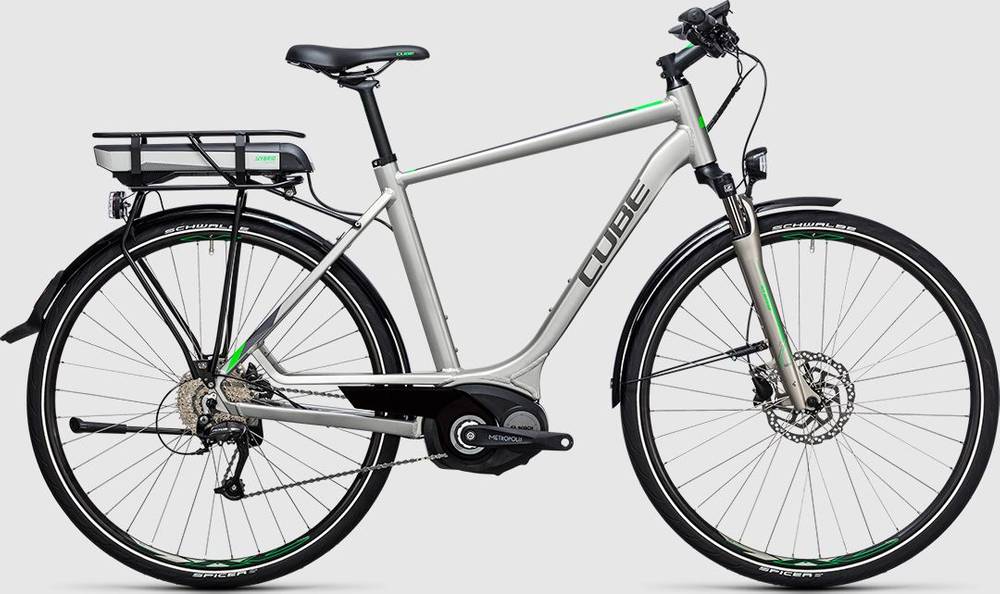

CUBE TOURING HYBRID ONE 400 2017
2017 E-bike
Weight | 23.6 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Altus, FSA -
Suspension Hardtail -
Motor Bosch 250W 48Nm mid-drive -
Battery Bosch PowerPack 400 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Trekking Hybrid Comfort, Double Butted
Suspension Fork
SR Suntour NEX, 63mm
Drivetrain
Rear Derailleur
Shimano RD-M370-SGS, 9-Speed
Shift Levers
Shimano SL-M370, Rapidfire-Plus
Cassette
Shimano CS-HG300, 12-36T
Crank
FSA Metropolis Urban AL-8, 15T
Chain
KMC X9
Pedals
CUBE PP Trekking
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE ZX20, 36H, Disc
Tires
Schwalbe Spicer, Active, 40x622
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (180/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm; EE: CUBE Comfort City Stem, 31.8mm
Handlebar
CUBE Rise Trail Bar, 700mm; EE: CUBE Comfort Shape Bar
Grips
CUBE Natural Fit Comfort
Headset
FSA No.10, Semi-Integrated
Seat
Saddle
CUBE Comfort Tour 1.2
Seatpost
CUBE Performance Post, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Active (48Nm) Cruise (250Watt)
Battery
Bosch PowerPack 400
Remote
Bosch Intuvia
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 54cm | 58cm | 62cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.66 mm | 1.67 mm | 1.68 mm |
| Front Center | 626 mm | 635 mm | 650 | 665 mm |
| Rake | 43 mm | 42 mm | 41 mm | 42 mm |
| Trail | 78 mm | 76 mm | 77 mm | 76 mm |
| Stack | 619 mm | 640 mm | 659 mm | 678 mm |
| Reach | 377 mm | 385 mm | 394 mm | 403 mm |
| Top Tube Length | 567 mm | 581 mm | 596 mm | 611 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 500 mm | 540 mm | 580 mm | 620 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 478 mm | 478 mm | 478 mm | 478 mm |
| Wheelbase | 1097 mm | 1106 mm | 1121 mm | 1137 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview
TOURING HYBRID ONE 400 is a Cube E Touring model. CUBE launched 81 e-bikes of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Hybrid e-bikes average price
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Hybrid e-bikes average weight
Hybrid e-bikes have an average weight of 23.79 kg (52.45 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
slightly lighter than average, TOURING HYBRID ONE 400 has a weight of 23.6 kg (52.03 lbs). To sum up, it’s 0.81% lighter than the average weight of Hybrid e-bikes.
Overview of components
Fork
This e-bike has the SunTour NEX fork installed. The fork’s travel is 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When leaving the production line, the TOURING HYBRID ONE 400 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE TOURING HYBRID ONE 400 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
